Why Choose the Wöhner 32981 Busbar Adapter?

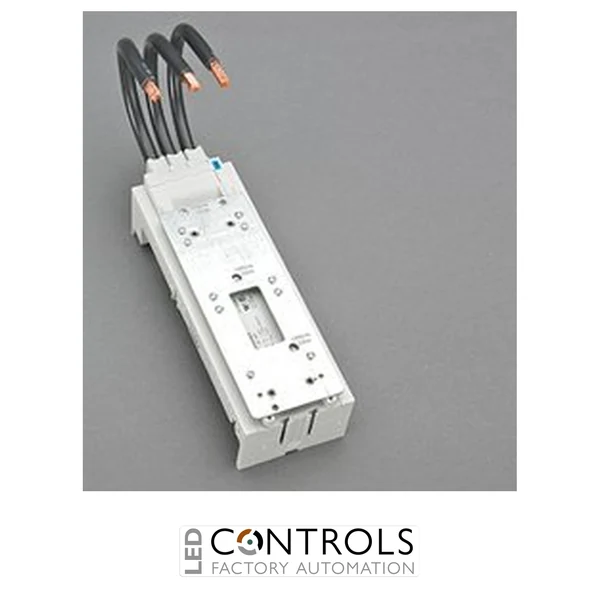

The Wöhner 32981 is a compact and reliable 100 A busbar adapter designed for mounting compatible motor protection and switching devices directly onto the Wöhner EQUES® 60Classic busbar system. It is specifically aligned with ABB MS49x motor circuit breakers and Siemens SIRIUS frame size S3 devices, making it ideal for professional motor control and industrial automation panels.
Supplied with integrated AWG 4 connection leads with a 25 mm² conductor cross-section, the adapter simplifies electrical installation and reduces the need for extensive point-to-point wiring. Direct mounting onto the busbar system helps panel builders create organised, compact and serviceable low-voltage assemblies.
With an equipment width of 72 mm and a height of 200 mm, the Wöhner 32981 provides a space-efficient mounting platform for compatible devices. It can be installed on standard flat busbars and compatible section busbars used within the Wöhner 60Classic system.
Key Advantages
- Compact 100 A busbar adapter for industrial motor control equipment.
- Compatible with ABB MS49x and Siemens SIRIUS S3 devices.
- Integrated AWG 4, 25 mm² connection leads.
- Direct busbar mounting reduces wiring and installation time.
- Supports organised and space-efficient control-panel layouts.
- Designed for the modular Wöhner EQUES® 60Classic system.
Key Features
- Wöhner EQUES® 60Classic busbar adapter.
- 100 A rated current.
- Compatible with ABB MS49x motor circuit breakers.
- Compatible with Siemens SIRIUS frame size S3 equipment.
- Integrated AWG 4 leads with a 25 mm² cross-section.
- 72 mm equipment width.
- 200 mm adapter height.
- Suitable for flat and compatible section busbars.
Efficient Device Mounting for Motor Control Systems
The Wöhner 32981 allows compatible ABB and Siemens motor control devices to be mounted directly onto a 60 mm busbar system. This approach can significantly reduce conventional wiring, shorten assembly time and improve access to components during inspection or maintenance.
Its integrated connection leads provide a prepared electrical interface between the busbar system and the mounted equipment. The adapter is particularly well suited to modular machine-control panels and motor control centres where installation efficiency, cabinet space and dependable electrical distribution are important.
Typical Applications
- Industrial motor control centres.
- Machine control panels.
- Motor starter assemblies.
- Low-voltage switchboards.
- Manufacturing and process automation systems.
- OEM machinery and electrical equipment.
