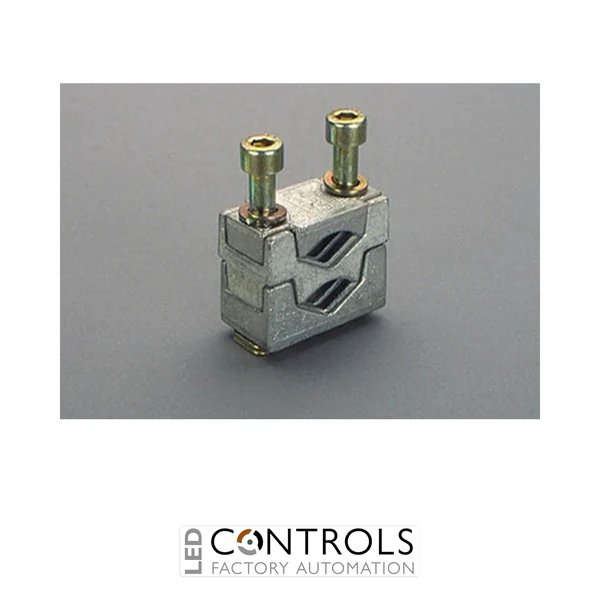

Why Choose the Wöhner 33147 Double Prism Terminal?
The Wöhner 33147 is a robust double prism terminal for copper conductors, designed to provide secure high-capacity cable connections within compatible Wöhner low-voltage power distribution equipment. Its double conductor arrangement allows two large copper cables to be terminated reliably, making it suitable for demanding industrial switchboards and electrical distribution assemblies.
As part of the Wöhner 60Classic system, the terminal is engineered for straightforward integration with compatible size 3 fuse switch disconnectors and switching devices. The prism-style clamping mechanism applies dependable contact pressure across the conductor, supporting low-resistance electrical connections and reliable long-term operation.
Designed for 2 × 120-240 mm² copper conductors, the Wöhner 33147 is well suited to high-current power distribution applications. Its durable construction, secure screw-clamp connection and industrial-grade design make it a practical choice for panel builders, machine manufacturers and electrical engineers.
Key Advantages
- Double prism terminal for connecting two large copper conductors.
- Accepts conductor sizes of 2 × 120-240 mm².
- Designed for compatible Wöhner size 3 devices.
- Secure prism clamping provides reliable conductor retention.
- Supports low-resistance connections in high-current applications.
- Suitable for professional switchboards and power distribution panels.
Key Features
- Wöhner 60Classic connection accessory.
- Double prism terminal configuration.
- Suitable for copper conductors.
- 2 × 120-240 mm² conductor capacity.
- Designed for compatible size 3 switching equipment.
- Heavy-duty screw-clamp connection.
- Industrial-grade mechanical and electrical performance.
- Suitable for low-voltage power distribution assemblies.
Reliable High-Current Cable Connections
Prism terminals secure conductors by applying controlled clamping pressure across a broad contact area. This design helps create a stable, low-resistance connection while reducing the risk of conductor movement caused by vibration, thermal cycling or normal operating conditions.
The double terminal configuration of the Wöhner 33147 enables two copper conductors to be connected to a compatible device, supporting flexible cable routing and efficient distribution of high electrical loads within industrial switchboards.
Typical Applications
- Industrial switchboards and distribution boards.
- High-current low-voltage power distribution systems.
- Motor control centres.
- Machine and process control cabinets.
- Commercial electrical distribution assemblies.
- OEM switchgear and panel-building projects.
