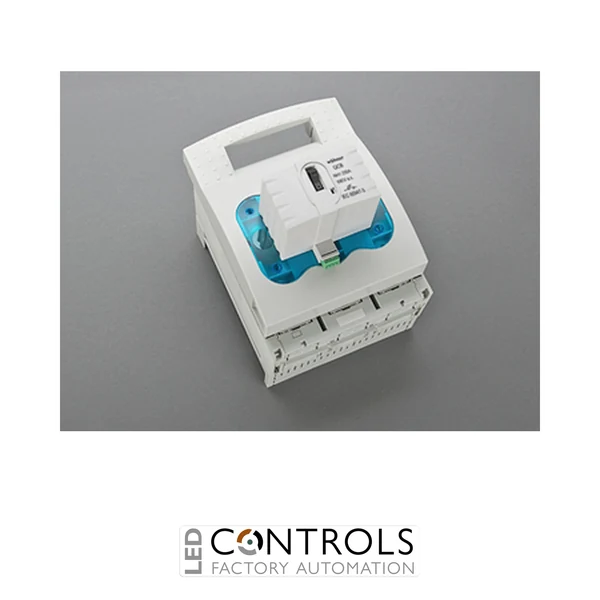

33160 Wohner NH fuse switch-disconnector size 1, 250 A

Q: What is the rated current?

The Wöhner 33160 has a rated current of 250 A and accepts NH size 1 fuse links.

Wöhner 33160 QUADRON 60Classic NH size 1 fuse switch disconnector rated at 250 A with CrossLink® Technology and electromechanical fuse monitoring.

SKU: 33160Alt SKU: 33160000MPN: 33160

List Price £449.54 ex VAT

Your Price (ex VAT)

£449.54

Manufacturer Lead Time Please contact us for a delivery time before you order

Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Quantity:

SUBTOTAL (EX VAT) £449.54

Trade pricing is personalised to your account

Manufacturer Lead Time

£449.54

Why Choose the Wöhner 33160 NH Fuse Switch Disconnector?

The Wöhner 33160 is a premium NH size 1 fuse switch disconnector rated at 250 A, designed for installation on Wöhner 60Classic busbar systems. Featuring CrossLink® Technology and electromechanical fuse monitoring, it provides safe, flexible and reliable protection for industrial low-voltage power distribution applications.

Designed for busbars measuring 12, 15, 20, 25, 30 × 5 mm, 30 × 10 mm and section busbars, the 33160 offers top or bottom cable connection using robust M10 screw terminals. CrossLink® Technology enables fast conversion between connection orientations while maintaining protection against accidental contact with live parts.

The integrated electromechanical fuse monitoring system provides a clear indication when a fuse has operated, helping maintenance personnel identify faults quickly and minimise downtime in industrial installations.

Key Advantages

Rated current of 250 A.
Suitable for NH size 1 fuse links.
Integrated electromechanical fuse monitoring.
CrossLink® Technology for rapid top or bottom connection conversion.
Designed for Wöhner 60Classic busbar systems.
Robust M10 screw terminals for secure conductor connections.

Key Features

QUADRON® 60Classic NH fuse switch disconnector.
250 A rated current.
NH size 1 fuse compatibility.
Busbar mounting.
Top or bottom cable connection.
CrossLink® adapter technology.
Electromechanical fuse monitoring.
Self-closing inspection holes in the cover.

Safe and Flexible Busbar Installation

The Wöhner 33160 is engineered for demanding industrial applications where dependable circuit isolation and overcurrent protection are essential. Its CrossLink® adapter technology allows quick conversion between top and bottom cable entry without compromising operator safety, while the split touch protection and self-closing inspection holes further enhance maintenance safety.

Designed for use on 60Classic busbar systems, the device is suitable for switchboards, machine control panels and OEM electrical equipment requiring reliable NH fuse protection and high installation flexibility.

Typical Applications

Industrial switchboards.
Low-voltage power distribution systems.
Machine control panels.
Motor control centres.
OEM electrical equipment.
Industrial feeder protection.

Technical Specifications

Tick the specs you need, then view products that match.

Fuse Size	NH1
Device Type	Fuse switch disconnector
Mounting Type	Busbar system 60 mm
Fuse Type	NH (DIN)
Busbar Centre Distance (mm)	60 mm
Product Series	Wöhner 60Classic
Current	250 A
Manufacturer	Wöhner
Series	QUADRON® 60Classic
Model	33160
Product type	NH fuse switch disconnector
Rated current	250 A
Fuse size	NH 1
Connection	Screw terminal M10
Busbar compatibility	12, 15, 20, 25, 30 × 5 mm, 30 × 10 mm and section busbars
Connection orientation	Top or bottom
Fuse monitoring	Electromechanical
Technology	CrossLink®
Standards	IEC 60947-1, IEC 60947-3, UL 4248-1
EAN	4021267331603

Frequently Asked Questions

What is the Wöhner 33160 used for?

The Wöhner 33160 is an NH size 1 fuse switch disconnector for circuit isolation and overcurrent protection on Wöhner 60Classic busbar systems.

What is CrossLink® Technology?

CrossLink® Technology allows fast conversion between top and bottom cable connections while maintaining shock protection and reliable electrical contact.

Which busbars is the Wöhner 33160 compatible with?

It is compatible with 12, 15, 20, 25, 30 × 5 mm, 30 × 10 mm and section busbars.

Does the device include fuse monitoring?

Yes. It features integrated electromechanical fuse monitoring to indicate when a fuse has operated.

What is the rated current?

The Wöhner 33160 has a rated current of 250 A and accepts NH size 1 fuse links.

Trusted by Electrical Professionals Worldwide

Wöhner QUADRON® 60Classic fuse switch disconnectors are trusted by switchboard manufacturers and industrial engineers for delivering safe isolation, flexible installation and dependable circuit protection.

Fuse Size	NH1
Device Type	Fuse switch disconnector
Mounting Type	Busbar system 60 mm
Fuse Type	NH (DIN)
Busbar Centre Distance (mm)	60 mm
Product Series	Wöhner 60Classic
Current	250 A
Manufacturer	Wöhner
Series	QUADRON® 60Classic
Model	33160
Product type	NH fuse switch disconnector
Rated current	250 A
Fuse size	NH 1
Connection	Screw terminal M10
Busbar compatibility	12, 15, 20, 25, 30 × 5 mm, 30 × 10 mm and section busbars
Connection orientation	Top or bottom
Fuse monitoring	Electromechanical
Technology	CrossLink®
Standards	IEC 60947-1, IEC 60947-3, UL 4248-1
EAN	4021267331603
