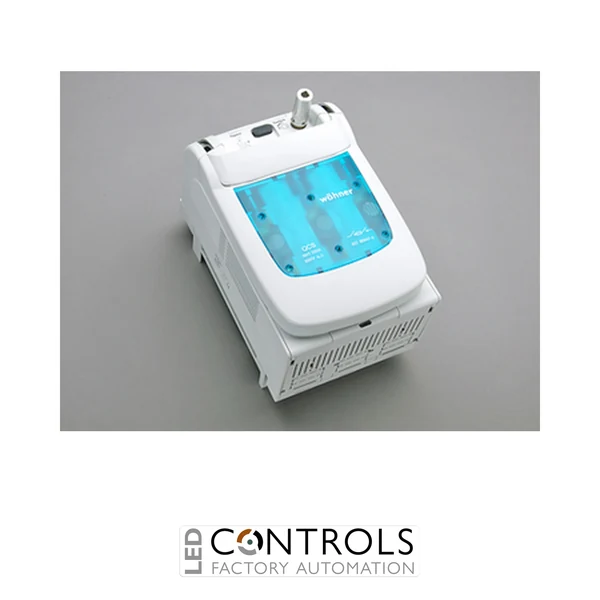

Why Choose the Wöhner 33513 QUADRON® 60Classic Speed Fuse Switch-Disconnector?
The Wöhner 33513 is a premium three-pole NH size 1 fuse switch-disconnector engineered for dependable switching, isolation and overcurrent protection in industrial low-voltage power distribution systems. As part of the QUADRON® 60Classic Speed range, it features a bottom M10 cable connection and is designed for operation via a front door coupling rotary handle, allowing safe switching from outside the enclosure while maintaining maximum operator protection.
The switch incorporates an operator-independent snap-action mechanism with double-breaking main contacts, ensuring fast and reliable switching regardless of handle speed. The design also allows safe, tool-free fuse replacement while providing an additional visible isolation gap when the cover and fuse assembly are removed.
Designed for NH size 1 fuse links, the Wöhner 33513 is rated at 250 A and mounts directly onto compatible 60Classic busbar systems using Wöhner's proven CrossLink® adapter technology. It is suitable for use as both a mains isolator and, when fitted with the appropriate red/yellow rotary handle, an Emergency OFF switch in accordance with IEC/EN 60204-1.
Key Advantages
- Three-pole NH size 1 fuse switch-disconnector for industrial power distribution.
- 250 A rated current for demanding applications.
- Front-operated via a compatible door coupling rotary handle.
- Operator-independent snap-action switching mechanism.
- Double-breaking contacts enable safe, tool-free fuse replacement.
- CrossLink® adapter technology for rapid installation on 60Classic busbars.
Key Features
- Wöhner QUADRON® 60Classic Speed series.
- Three-pole fuse switch-disconnector.
- Compatible with NH size 1 fuse links.
- 250 A rated current.
- 690 V AC operating voltage.
- Bottom M10 screw cable connection.
- Door coupling rotary handle operation.
- FLAG switch position indicator.
Designed for Safe External Operation
The Wöhner 33513 enables operators to switch and isolate power safely without opening the enclosure. When paired with a compatible Wöhner rotary handle and extension shaft, it provides secure front-of-panel operation while maintaining a high degree of protection for personnel. The handle can also be locked in the OFF position using padlocks to prevent unauthorised operation during maintenance.
Its robust construction, reliable switching mechanism and CrossLink® mounting technology make it particularly suitable for modern industrial switchgear, OEM machinery and motor control applications where reliability and ease of maintenance are essential.
Applications
- Industrial switchboards.
- Main power distribution panels.
- Motor control centres.
- OEM machinery.
- Industrial automation systems.
- Manufacturing and processing plants.
