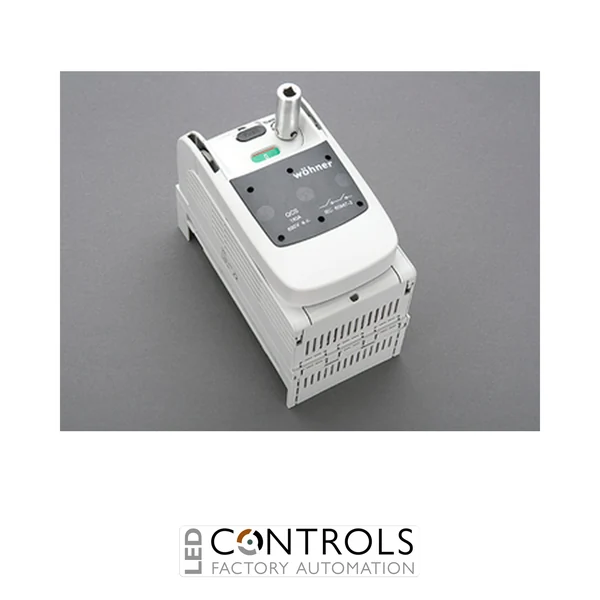

Wöhner 33543 QUADRON 60Classic Speed 3-pole 160 A busbar-mounted switch disconnector with bottom-connected box terminals, double-breaking contacts and provision for a door-coupling rotary handle.
£255.66
The Wöhner 33543 is a compact and dependable 3-pole switch disconnector designed for safe circuit isolation and frequent switching in industrial power distribution systems. Part of the established Wöhner QUADRON 60Classic Speed series, it mounts directly onto compatible 60 mm busbar systems and is suitable for switchboards, machinery panels and OEM electrical assemblies.
This switch disconnector incorporates an operator-independent spring-controlled snap-action mechanism, ensuring consistent switching performance regardless of how quickly the external handle is operated. Its double-breaking main contacts provide effective electrical isolation, while the integrated FLAG indicator gives users a clear visual indication of the switching position.
With a rated current of 160 A, a 3-pole configuration and bottom-connected box terminals, the Wöhner 33543 provides a practical solution for industrial three-phase circuits. The unit is designed for use with a door-coupling rotary handle and can be installed horizontally at 90° to the left or right while maintaining the same handle position.
Switch disconnectors such as the Wöhner 33543 provide a clearly defined method of disconnecting industrial equipment from its electrical supply. This allows machinery, control panels and distribution circuits to be safely isolated before maintenance, inspection or repair work is carried out.
The Wöhner 33543 uses CrossLink adapter technology for simple mounting and secure electrical contact with compatible busbars. Its compact construction helps panel builders maximise available enclosure space while maintaining accessible and organised power distribution.
| Phase | Three Phase |
|---|---|
| Manufacturer | Wöhner |
| Series | QUADRON 60Classic Speed |
| Model | 33543 |
| Alternative part number | 33543000 |
| Type designation | QCS-160 |
| Product type | Busbar-mounted switch disconnector |
| Rated current | 160 A |
| Rated operational voltage | 690 V AC |
| Rated insulation voltage | 800 V AC |
| Rated impulse withstand voltage | 8 kV |
| Number of poles | 3 |
| Protection rating | IP20 |
| Terminal type | Box terminal |
| Terminal position | Bottom connection |
| Conductor cross-section | 1.5–70 mm² |
| Mounting type | 60 mm busbar system |
| Compatible busbars | 12, 15, 20, 25 and 30 × 5 / 10 mm flat busbars and section busbars |
| Dimensions (W × H × D) | 106 × 200 × 155 mm |
| Weight | approx. 2.08 kg |
| EAN | 4021267335434 |
The Wöhner 33543 is used to switch and safely isolate three-phase electrical circuits in industrial machinery, control panels and power distribution systems.
The switch disconnector has a rated current of 160 A.
The Wöhner 33543 features box terminals with bottom cable connection.
The unit is designed for operation with a compatible door-coupling rotary handle, which is selected separately to suit the installation.
Yes. The switch can be locked in the neutral position using up to three padlocks, helping prevent accidental or unauthorised operation.
Wöhner QUADRON 60Classic switch disconnectors are widely used by panel builders, machine manufacturers and electrical engineers for reliable isolation, efficient busbar installation and dependable industrial power distribution.
