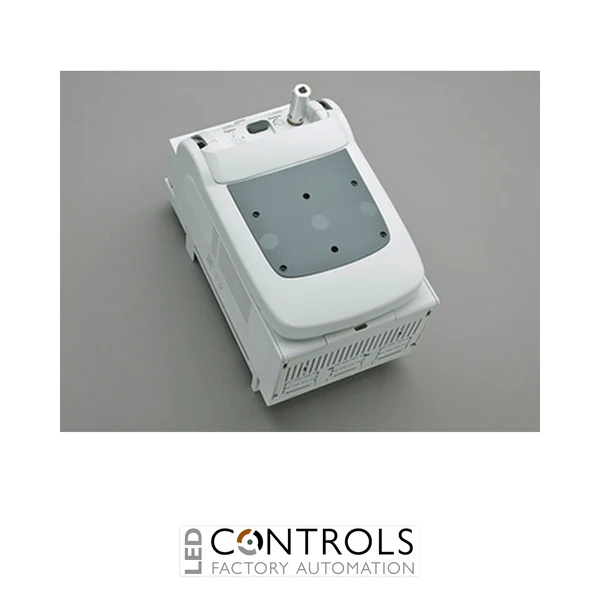

Wöhner 33554 QUADRON 60Classic Speed 3-pole 320 A busbar-mounted switch disconnector with M10 top-connected screw terminals and provision for a door coupling rotary handle.
£661.21
The Wöhner 33554 is a heavy-duty 3-pole switch disconnector engineered for the safe isolation and switching of high-current electrical circuits in industrial power distribution systems. As part of the proven Wöhner QUADRON 60Classic Speed range, it is designed for direct mounting onto compatible 60 mm busbar systems and is operated using a door coupling rotary handle, making it ideal for switchboards, motor control centres and OEM machinery.
The switch features an operator-independent spring-controlled snap-action mechanism that delivers fast and reliable switching regardless of handle speed. Double-breaking main contacts provide dependable electrical isolation, while the integrated FLAG position indicator offers a clear visual indication of the switch position, improving operator safety during maintenance and servicing.
With a 320 A rated current, 3-pole configuration and M10 top-connected screw terminals, the Wöhner 33554 is designed for demanding industrial applications. It can be locked in the OFF position using up to three padlocks and, when used with the appropriate red/yellow door coupling handle, is suitable as both a mains disconnector and an Emergency Off switch in accordance with IEC / EN 60204-1.
The Wöhner 33554 provides dependable manual isolation of high-current three-phase electrical circuits, allowing machinery and electrical equipment to be safely disconnected before maintenance or servicing. Its robust mechanical design, snap-action mechanism and double-breaking contacts ensure long-term reliability in demanding industrial environments.
CrossLink® adapter technology enables quick, secure installation directly onto compatible busbars, reducing assembly time while creating organised and space-efficient power distribution systems for panel builders and OEM manufacturers.
| Phase | Three Phase |
|---|---|
| Manufacturer | Wöhner |
| Series | QUADRON 60Classic Speed |
| Model | 33554 |
| Alternative part number | 33554000 |
| Type designation | QCS-320 |
| Product type | Busbar-mounted switch disconnector |
| Rated current | 320 A |
| Rated operational voltage | 690 V AC |
| Rated insulation voltage | 800 V AC |
| Rated impulse withstand voltage | 8 kV |
| Number of poles | 3 |
| Terminal type | M10 screw terminals |
| Terminal position | Top connection |
| Mounting type | 60 mm busbar system |
| Compatible busbars | 12, 15, 20, 25 and 30 × 5 / 10 mm flat busbars and section busbars |
| Protection rating | IP20 |
| Dimensions (W × H × D) | 184 × 314 × 192 mm |
| EAN | 4021267335540 |
The Wöhner 33554 is designed to safely switch and isolate high-current three-phase electrical circuits in industrial power distribution systems.
The switch disconnector has a rated operational current of 320 A.
No. The switch is designed for use with a compatible door coupling rotary handle, which is supplied separately.
Yes. The operating mechanism can be locked in the OFF position using up to three padlocks to help prevent accidental operation.
Yes. When used with the appropriate red/yellow door coupling rotary handle and installed in accordance with IEC / EN 60204-1, it can be used as an Emergency Off switch.
Wöhner QUADRON 60Classic Speed switch disconnectors are trusted worldwide by panel builders, machine manufacturers and electrical engineers for dependable circuit isolation, efficient installation and long service life in industrial power distribution systems.
