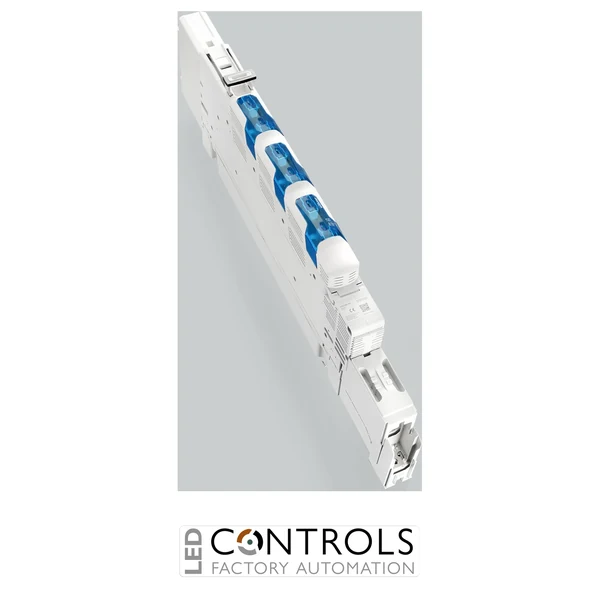

Wöhner 33614 QUADRON 185Power Speed high-version NH size 00 in-line switch disconnector fuse with bottom M8 CrossLink connection for 185Power busbar systems.
£512.69
The Wöhner 33614 is a high-performance NH size 00 in-line switch disconnector fuse developed for the safe switching, isolation and protection of industrial electrical distribution systems. As part of the Wöhner QUADRON 185Power Speed range, this high-version model features a bottom M8 cable connection with CrossLink® connection technology, enabling rapid drill-free installation onto compatible 185Power busbar systems. It is fully compatible with systems incorporating CrossLink® touch-safe protection modules.
Designed for demanding industrial environments, the Wöhner 33614 incorporates an operator-independent snap-action switching mechanism with double-breaking contacts, providing consistent switching speed and enhanced arc suppression. When the cover is opened, all accessible conductive parts remain voltage-free, while the lockable and sealable cover improves operator safety during maintenance and servicing.
With a 160 A rated current, support for standard NH size 00 fuse links and compatibility with 30, 40, 60, 80, 100 and 120 × 10 mm busbars, the Wöhner 33614 is ideally suited to OEM machinery, industrial automation, motor control centres and modern switchboard construction.
The Wöhner 33614 combines dependable NH fuse protection with safe isolation and rapid installation. Its high-profile design provides additional installation flexibility while maintaining the compact footprint required for modern industrial control panels and power distribution equipment.
CrossLink® technology allows quick, drill-free installation while supporting touch-safe protection modules, helping panel builders reduce assembly time without compromising electrical safety or long-term reliability.
| Manufacturer | Wöhner |
|---|---|
| Series | QUADRON 185Power Speed |
| Model | 33614 |
| Alternative part number | 33614000A |
| Type designation | QS185-00 |
| Product type | NH in-line switch disconnector fuse |
| Fuse size | NH 00 |
| Rated current | 160 A |
| Rated operational voltage | 690 V AC |
| Configuration | 3-pole switchable |
| Terminal type | M8 screw terminals |
| Connection position | Bottom |
| Connection technology | CrossLink® |
| Mounting system | QUADRON 185Power |
| Busbar compatibility | 30, 40, 60, 80, 100 and 120 × 10 mm |
| Switching mechanism | Operator-independent snap action |
| Main contacts | Double breaking |
| Suitable for CrossLink® protection modules | Yes |
| EAN | 4021267336141 |
The Wöhner 33614 is an NH size 00 in-line switch disconnector fuse designed for switching, isolation and overcurrent protection in industrial electrical distribution systems.
The unit is designed for standard NH size 00 fuse links.
The Wöhner 33614 has a rated operational current of 160 A.
Yes. The 33614 uses CrossLink® connection technology and is fully compatible with systems fitted with CrossLink® touch-safe protection modules.
Yes. The cover can be locked with up to three padlocks when switched OFF and can also be sealed in both the ON and OFF positions.
Wöhner QUADRON 185Power Speed switch disconnector fuses are trusted by OEM manufacturers, switchboard builders and electrical engineers for their rapid installation, dependable switching performance and outstanding reliability in demanding industrial power distribution systems.
