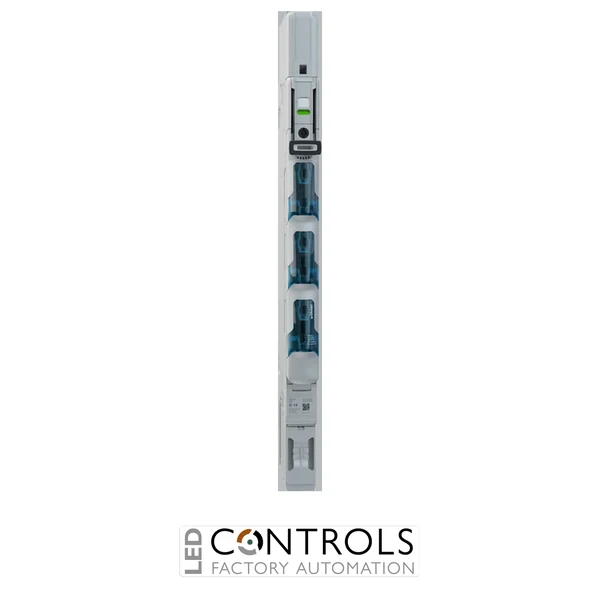

Wöhner 33616 QUADRON 185Power Speed high-version NH size 00 in-line switch disconnector fuse with top M8 CrossLink connection for 185Power busbar systems.
£512.69
The Wöhner 33616 is a premium NH size 00 in-line switch disconnector fuse engineered for the safe switching, isolation and protection of industrial electrical distribution systems. As part of the Wöhner QUADRON 185Power Speed range, this high-version model features a top M8 cable connection with CrossLink® connection technology, allowing fast, drill-free installation onto compatible 185Power busbar systems. It is fully compatible with installations using CrossLink® touch-safe protection modules.
The Wöhner 33616 incorporates an operator-independent snap-action switching mechanism with reliable double-breaking contacts, providing consistent switching performance and dependable electrical isolation. When the cover is opened, all accessible conductive parts remain voltage-free, while the lockable cover and sealing facility enhance operator safety during maintenance and servicing.
Designed for demanding industrial applications, the device accepts NH 000 and NH 00 fuse links, supports a 160 A rated operational current, and is suitable for 30, 40, 60, 80, 100 and 120 × 10 mm busbar systems. Its top cable entry simplifies wiring in modern switchboards, motor control centres and OEM equipment.
The Wöhner 33616 combines dependable NH fuse protection with rapid installation and safe circuit isolation. Its high-profile construction with top cable entry offers greater installation flexibility while maintaining a compact footprint suitable for industrial control panels and power distribution systems.
CrossLink® technology allows quick drill-free mounting onto compatible 185Power busbars while supporting touch-safe protection modules, helping panel builders reduce assembly time and maintain the highest standards of electrical safety.
| Manufacturer | Wöhner |
|---|---|
| Series | QUADRON 185Power Speed |
| Model | 33616 |
| Alternative part number | 33616000A |
| Type designation | QS185-00 |
| Product type | NH in-line switch disconnector fuse |
| Fuse size | NH 000 / NH 00 |
| Rated current | 160 A |
| Rated operational voltage | 800 V AC / 800 V DC |
| Rated insulation voltage (Ui) | 1000 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Configuration | 3-pole switchable |
| Terminal type | Top M8 screw terminals |
| Connection technology | CrossLink® |
| Mounting system | QUADRON 185Power |
| Busbar compatibility | 30, 40, 60, 80, 100 and 120 × 10 mm |
| Protection rating | IP30 (front) |
| EAN | 4021267336165 |
The Wöhner 33616 is an NH size 00 in-line switch disconnector fuse designed for switching, isolation and overcurrent protection in industrial electrical distribution systems.
The device accepts both NH 000 and NH 00 fuse links.
The Wöhner 33616 has a rated operational current of 160 A.
Yes. The 33616 uses CrossLink® connection technology and is fully compatible with systems incorporating CrossLink® touch-safe protection modules.
Yes. The cover can be locked with up to three padlocks when switched OFF and can also be sealed in both the ON and OFF positions.
Wöhner QUADRON 185Power Speed switch disconnector fuses are trusted by switchboard manufacturers, OEM machine builders and electrical engineers for their dependable protection, rapid installation and long-term reliability in demanding industrial power distribution systems.
