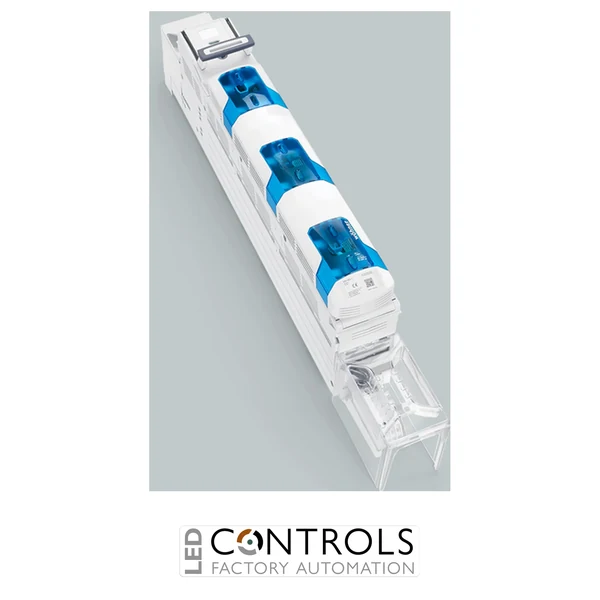

Why Choose the Wöhner 33641 NH In-Line Fuse Switch-Disconnector?
The Wöhner 33641 is a heavy-duty NH in-line fuse switch-disconnector engineered for safe switching, dependable electrical isolation and reliable overcurrent protection in industrial low-voltage power distribution systems. As part of the Wöhner QUADRON® 185Power Speed series, this NH size 3 device features integrated fuse monitoring together with a top M12 screw connection, making it ideal for industrial switchboards, motor control centres and OEM panel-building applications requiring upper cable entry and rapid fault indication.
The switch-disconnector incorporates an operator-independent snap-action switching mechanism with a double-breaking contact system, ensuring fast and consistent switching regardless of operating speed. Integrated fuse monitoring enables maintenance personnel to identify blown fuse links quickly, helping minimise downtime and improve operational efficiency.
Designed for installation on 30, 40, 60, 80, 100 and 120 × 10 mm busbars, the Wöhner 33641 features a touch-safe construction when open, a lockable and sealable operating cover and compatibility with the modular 185Power busbar system. Please note that this model is listed by the manufacturer as no longer available.
Key Advantages
- Industrial NH size 3 in-line fuse switch-disconnector.
- Integrated fuse monitoring for rapid fault indication.
- Operator-independent snap-action switching mechanism.
- Double-breaking contacts for enhanced switching safety.
- Top M12 screw connection.
- Compatible with Wöhner 185Power busbar systems.
- Lockable and sealable operating cover.
Key Features
- Wöhner QUADRON® 185Power Speed series.
- Suitable for NH size 3 fuse links.
- Three-pole fuse switch-disconnector.
- Integrated fuse monitoring.
- Top M12 screw connection.
- Operator-independent snap-action switching.
- Double-breaking contact system.
- Suitable for busbars measuring 30, 40, 60, 80, 100 and 120 × 10 mm.
- Touch-safe construction when open.
- Lockable cover with double-bit lock.
- Can be sealed in both ON and OFF positions.
- Can be locked with up to three padlocks when switched OFF.
Reliable Switching for Industrial Power Distribution
The Wöhner 33641 combines dependable switching, safe electrical isolation and high-capacity fuse protection in one robust industrial assembly. Integrated fuse monitoring enables maintenance engineers to identify blown fuse links quickly, reducing downtime while maintaining reliable circuit protection in critical installations.
Its top-entry M12 connection simplifies installation where upper cable routing is preferred, while the operator-independent switching mechanism, touch-safe construction and lockable operating cover make it an excellent solution for demanding industrial switchgear applications.
Typical Applications
- Industrial switchboards.
- 185 mm busbar power distribution systems.
- Main and sub-distribution panels.
- Motor control centres.
- Industrial automation equipment.
- Machine building.
- Commercial electrical installations.
- OEM panel-building projects.
