RX9360.028 Rittal RiLineX board 800 A, 3-pole, 60 mm, including busbars 30x10 mm

RX9360.028 Rittal RiLineX board 800 A, 3-pole, 60 mm, including busbars 30×10 mm

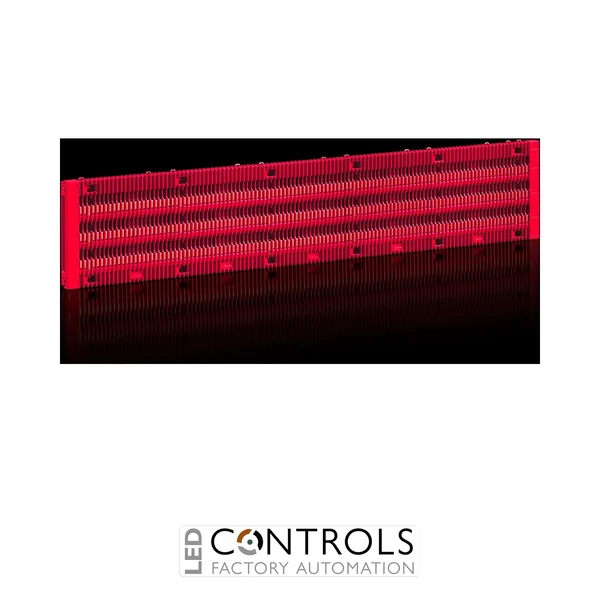

Rittal RX9360.028 RiLineX complete three-pole board with integrated 30 × 10 mm copper busbars rated up to 800A for 1200 mm-wide enclosures.

SKU: RX9360.028Alt SKU: 9360028MPN: RX9360.028
Price
List Price £538.13 ex VAT
Your Price (ex VAT)
£538.13
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £538.13
Trade pricing is personalised to your account

Manufacturer Lead Time

£538.13

Why Choose the Rittal RX9360.028 RiLineX Board?

The Rittal RX9360.028 RiLineX Board is a fully assembled three-pole power distribution board designed for high-current industrial switchgear and low-voltage distribution systems. Supplied complete with integrated 30 × 10 mm E-Cu copper busbars, it is rated at up to 800A and is specifically designed for installation in 1200 mm-wide enclosures. The pre-engineered assembly significantly reduces installation time whilst providing a safe, modular and standards-compliant power distribution platform.

Measuring 1105 mm in length, the RX9360.028 incorporates continuous IP2XB contact protection, which can be upgraded using compatible RiLineX accessories. The board supports horizontal, vertical and overhead mounting and includes a rear cable-routing channel, enabling tidy panel layouts and simplified wiring.

Suitable for electrical systems operating at up to 1000V AC or 1500V DC, the board has been tested for short-circuit withstand capability up to 65kA. Certified to both IEC 61439 and UL 508, it provides a dependable solution for modern industrial power distribution and can easily be expanded using compatible RiLineX baying connectors.

Key Advantages

  • Complete pre-assembled RiLineX power distribution board.
  • Integrated 30 × 10 mm E-Cu copper busbars.
  • Rated up to 800A.
  • Designed for 1200 mm-wide enclosures.
  • Suitable for systems up to 1000V AC / 1500V DC.
  • Continuous IP2XB touch protection.
  • Upgradeable using compatible RiLineX accessories.
  • Horizontal, vertical and overhead mounting.
  • Integrated rear cable-routing section.
  • Tested and certified to IEC and UL standards.

Key Features

  • Rittal RiLineX complete board.
  • Article number RX9360.028.
  • Three-pole construction.
  • Integrated E-Cu copper busbars.
  • 30 × 10 mm busbar dimensions.
  • 60 mm busbar centre spacing.
  • 800A IEC current rating.
  • 800A UL current rating.
  • 12kV impulse withstand voltage.
  • 143kA impulse withstand current.
  • 65kA short-time withstand current (500 ms).
  • IP2XB contact protection.
  • Polyamide PA6 insulating construction.
  • UL 94 flame-retardant materials.

Reliable High-Current Power Distribution

The RX9360.028 forms the central power distribution platform within RiLineX systems, providing integrated copper busbars for direct installation of compatible RiLineX adaptors, switch disconnectors and protective devices. Its factory-assembled construction reduces installation time while ensuring consistent electrical performance.

The modular design also enables straightforward expansion by joining adjacent boards with compatible RiLineX baying connectors, allowing larger switchboard assemblies without compromising the system's tested short-circuit performance.

Typical Applications

  • Industrial low-voltage switchgear.
  • Main power distribution boards.
  • Motor control centres.
  • OEM electrical panels.
  • Industrial automation systems.
  • Commercial electrical distribution.
  • Renewable energy installations.
  • Battery energy storage systems.
  • Data centre infrastructure.
  • Modular enclosure line-ups.

Technical Specifications

Tick the specs you need, then view products that match.

Rail / Busbar Profile 30 × 10 mm
Product Series Rittal RiLine
Device Type Busbar
Busbar Centre Distance (mm) 60 mm
Current 800 A
Phase Three Phase
Poles 3-pole
Manufacturer Rittal
Series RiLineX
Model RX9360.028
Article number 9360028
Product type Complete busbar board
Number of poles 3
Maximum IEC current 800A
Maximum UL current 800A
Rated voltage 1000V AC / 1500V DC
UL rated voltage 600V AC / DC
Rated insulation voltage 1000V AC / 1500V DC
Impulse withstand voltage (Uimp) 12kV
Impulse withstand current 143kA
Short-time withstand current 65kA (500 ms)
Busbar material E-Cu copper
Busbar dimensions 30 × 10 mm
Busbar spacing 60 mm
Protection category IP2XB
Overvoltage category IV
Pollution degree 3
Operating temperature -5°C to +55°C
Storage temperature -25°C to +75°C
Relative humidity 10–90% non-condensing
Dimensions (W × H × D) 1105 × 246 × 49.2 mm
Weight 14 kg
Suitable enclosure width 1200 mm
Standards IEC 61439-1/-2, UL 508
EAN 4028177997394
HS Code 85369010

Frequently Asked Questions

What is the Rittal RX9360.028 used for?

The RX9360.028 is a complete three-pole RiLineX power distribution board designed for high-current industrial switchgear and electrical distribution systems.

Are the busbars supplied with the board?

Yes. The board is supplied complete with integrated 30 × 10 mm E-Cu copper busbars.

What enclosure width is it designed for?

The RX9360.028 is designed for installation in 1200 mm-wide enclosures.

What is the maximum current rating?

The board has a maximum rated current of 800A for both IEC and UL applications.

Can multiple RiLineX boards be connected together?

Yes. Compatible RiLineX baying connector sets allow adjacent boards to be connected whilst maintaining the tested characteristics of the RiLineX system.

Trusted by Professional Panel Builders

Rittal RiLineX systems are trusted worldwide by switchboard manufacturers, OEMs and electrical engineers for delivering safe, modular and standards-compliant power distribution solutions for demanding industrial applications.
