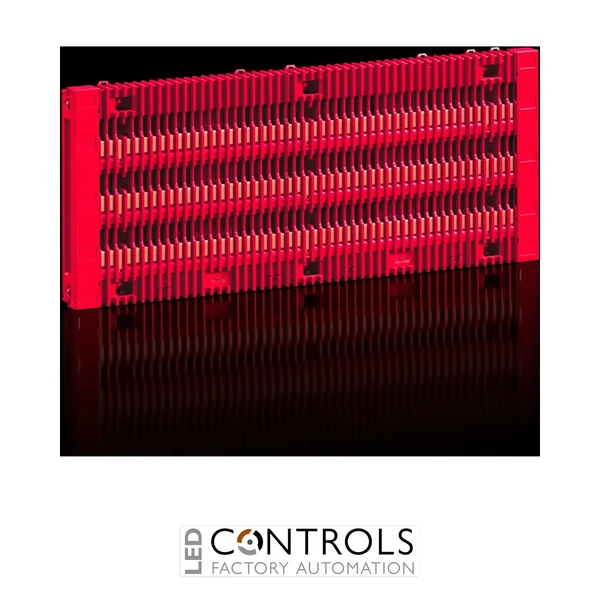

Rittal RX9360.068 RiLineX complete 3-pole busbar board with integrated 30 × 10 mm copper busbars, rated at 800 A for industrial power distribution systems.
£238.48
The Rittal RX9360.068 RiLineX Board is a pre-assembled 3-pole busbar distribution board designed for modern low-voltage power distribution systems. Part of the innovative Rittal RiLineX platform, this complete board includes integrated copper busbars, providing a fast, reliable and efficient solution for switchgear manufacturers, panel builders and industrial electrical installations.
Engineered to reduce installation time and simplify system integration, the RX9360.068 supports applications up to 800 A with operating voltages of up to 1000 V AC and 1500 V DC. Its modular design allows future expansion while maintaining high levels of safety, reliability and electrical performance.
Designed for 600 mm wide enclosures, this RiLineX complete board incorporates 30 × 10 mm E-Cu busbars with a 60 mm busbar spacing. It is IEC and UL certified, features contact protection to IP2XB (upgradeable to IP4X with optional accessories), and delivers tested short-circuit resistance of up to 65 kA.
The RiLineX platform is designed to simplify the construction of low-voltage switchgear assemblies while providing excellent electrical performance and enhanced safety. By using pre-engineered complete boards such as the RX9360.068, panel builders can significantly reduce assembly times and improve installation consistency.
Its modular architecture supports easy expansion, efficient cable routing and reliable power distribution across industrial control panels, manufacturing facilities, commercial buildings and energy infrastructure.
| Current | 800 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.068 |
| Product type | Complete busbar board |
| Rated current | 800 A |
| Rated voltage | 1000 V AC / 1500 V DC |
| UL rated voltage | 600 V AC / DC |
| Number of poles | 3 |
| Busbar size | 30 × 10 mm |
| Busbar spacing | 60 mm |
| Protection rating | IP2XB (upgradeable to IP4X) |
| Short-circuit withstand | 65 kA / 500 ms |
| Rated impulse withstand voltage | 12 kV |
| Frequency | 50 / 60 Hz |
| Enclosure compatibility | 600 mm wide enclosures |
| Dimensions (W × H × D) | 505 × 246 × 49 mm |
| Weight | Approx. 6.2 kg |
| HS Code | 85369010 |
It is a complete RiLineX busbar board designed for low-voltage electrical power distribution in industrial and commercial switchgear.
The RX9360.068 has a maximum rated current of 800 A.
It is designed for installation in 600 mm wide enclosures.
The board provides IP2XB contact protection as standard and can be upgraded to IP4X using optional cover strips.
Yes. The RX9360.068 is supplied complete with integrated 30 × 10 mm E-Cu copper busbars.
Rittal RiLineX systems are widely specified by panel builders and industrial engineers for delivering safe, modular and efficient low-voltage power distribution solutions in demanding electrical installations.
