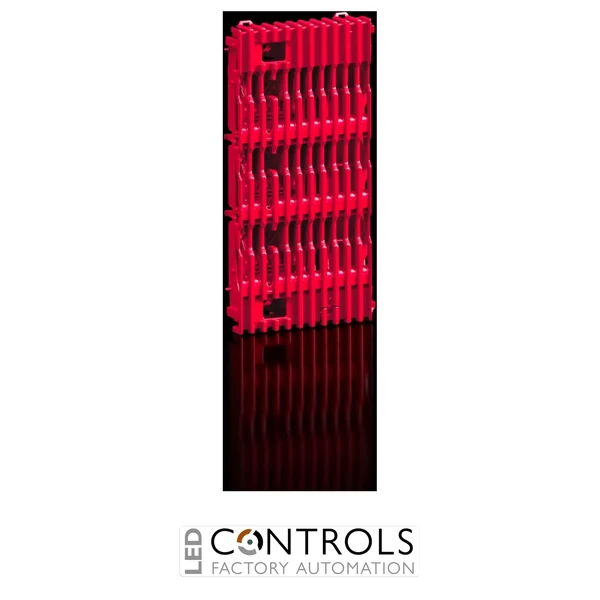

Rittal RX9360.110 RiLineX 3-pole basic module with a width of 100 mm, integrated busbar support and compatibility with flat busbars from 15 x 5 mm to 30 x 10 mm.
£93.02
The Rittal RX9360.110 is a compact 3-pole RiLineX basic module designed for constructing modular low-voltage busbar distribution boards. With an integrated busbar support and a width of 100 mm, it provides a flexible foundation for panel builders, switchgear manufacturers and industrial electrical engineers creating customised RiLineX power distribution systems.
The module accommodates flat copper busbars ranging from 15 × 5 mm to 30 × 10 mm, allowing the system current capacity to be adapted to the application. Multiple basic modules can be combined with compatible end modules, baying sets and busbars to create a scalable RiLineX board with the required overall system length.
Suitable for electrical systems operating up to 1000 V AC or 1500 V DC, the RX9360.110 offers contact hazard protection to IP2XB, upgradeable to IP3X with compatible accessories. Its integrated support can be built over, helping maximise usable mounting space while maintaining a safe and organised switchgear layout.
The RX9360.110 forms one of the central building blocks of a modular RiLineX board. Additional basic modules can be joined together to achieve the required system length, while compatible end modules complete the outer edges and maintain continuous contact protection.
By supporting several busbar sizes, the module allows current capacity to be matched to the electrical load without changing the basic platform. This flexible design helps standardise switchgear construction while supporting future extension, equipment changes and different power distribution requirements.
| Phase | Three Phase |
|---|---|
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.110 |
| Product type | Modular busbar basic module |
| Number of poles | 3 |
| Module width | 100 mm |
| Maximum system current | Up to 800 A, depending on busbar cross-section |
| Rated voltage | Up to 1000 V AC / 1500 V DC |
| Busbar compatibility | 15 × 5 mm to 30 × 10 mm |
| Busbar spacing | 60 mm |
| Protection rating | IP2XB, upgradeable to IP3X |
| Short-circuit resistance | Up to 65 kA |
| Material | Polyamide PA 6 |
| Fire protection | Corresponding to UL 94 |
| Colour | RAL 35745 / RAL 9005 |
| Standards | IEC/EN 61439-1 and UL 508 |
| Dimensions (W × H × D) | 100 × 246 × 49 mm |
| Net weight | Approx. 3 kg |
| Customs tariff number | 85369010 |
| EAN | 4028177997295 |
| HS Code | 85369010 |
The RX9360.110 is used as a 100 mm basic module when constructing customised 3-pole RiLineX busbar distribution boards.
The module supports flat busbars ranging from 15 × 5 mm to 30 × 10 mm.
No. The module includes the base section, integrated busbar support, contact protection cover and assembly screws. Suitable busbars are selected and ordered separately.
Yes. Compatible RiLineX end modules are required to finish the sides of a complete modular board and maintain contact hazard protection.
The module is suitable for RiLineX systems operating at up to 1000 V AC or 1500 V DC.
Rittal RiLineX modular components help switchgear manufacturers and panel builders create safe, adaptable and space-efficient power distribution systems for modern industrial applications.
