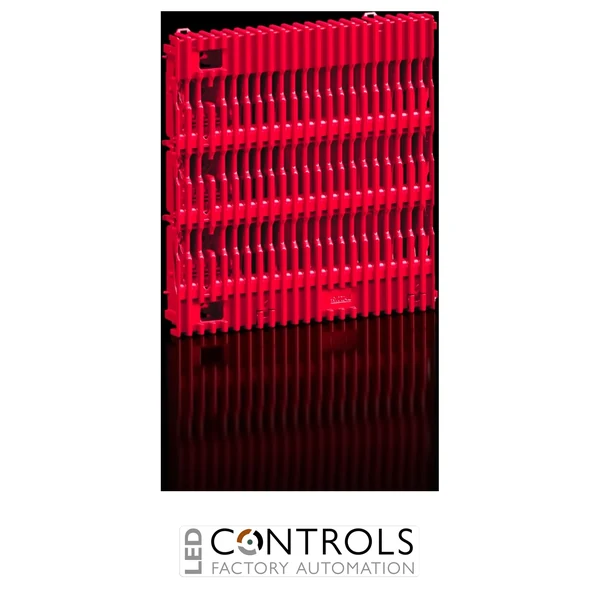

Rittal RX9360.120 RiLineX 3-pole 200 mm basic module with integrated busbar support for modular industrial power distribution systems.
£160.99
The Rittal RX9360.120 is a 3-pole RiLineX basic module engineered for building modular low-voltage busbar distribution systems. Featuring an integrated busbar support and a 200 mm module width, it provides a flexible foundation for customised RiLineX boards used by switchgear manufacturers, panel builders and industrial automation engineers.
Designed as part of the innovative Rittal RiLineX platform, the RX9360.120 supports flat copper busbars from 15 × 5 mm to 30 × 10 mm, enabling scalable current ratings and adaptable power distribution layouts. Multiple basic modules can be combined with compatible end modules, baying sets and accessories to create a complete RiLineX system tailored to individual installation requirements.
Suitable for systems operating up to 1000 V AC or 1500 V DC, the module provides end-to-end contact hazard protection to IP2XB, upgradeable to IP3X with compatible accessories. The integrated support allows straightforward installation while maintaining a safe, organised and expandable power distribution system.
The RX9360.120 provides a robust foundation for modular RiLineX power distribution systems. Multiple basic modules can be combined with compatible end modules, baying sets and busbars to create systems up to 2400 mm in length, allowing power distribution assemblies to be configured for virtually any industrial application.
Its modular construction enables future expansion, efficient cable routing behind the board and rapid installation without specialised tooling, making it ideal for modern switchgear and control panel manufacturing.
| Phase | Three Phase |
|---|---|
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.120 |
| Product type | Modular busbar basic module |
| Number of poles | 3 |
| Module width | 200 mm |
| Maximum rated current | 800 A |
| Rated voltage | 1000 V AC / 1500 V DC |
| Rated insulation voltage | 1000 V AC / 1500 V DC |
| Rated impulse withstand voltage | 12 kV |
| Busbar compatibility | 15 × 5 mm, 20 × 5 mm, 30 × 5 mm and 30 × 10 mm |
| Busbar spacing | 60 mm |
| Protection rating | IP2XB (upgradeable to IP3X) |
| Short-term withstand current | 65 kA / 500 ms |
| Frequency | 50 / 60 Hz |
| Material | Polyamide (PA 6) |
| Dimensions (W × H × D) | 200 × 246 × 49.2 mm |
| Weight | Approx. 5.16 kg |
| HS Code | 85369010 |
The RX9360.120 is used as a 200 mm modular basic section for building customised RiLineX busbar distribution systems.
No. The module is supplied without busbars, allowing installers to select the appropriate busbar size for the required current rating.
The module accepts flat busbars from 15 × 5 mm up to 30 × 10 mm.
The RX9360.120 supports systems with a maximum rated current of 800 A, depending on the selected busbars.
Yes. The RiLineX platform is fully modular, allowing additional basic modules, end modules and baying accessories to be added as system requirements grow.
Rittal RiLineX modular systems are trusted worldwide by switchgear manufacturers and panel builders for delivering safe, scalable and highly adaptable low-voltage power distribution solutions.
