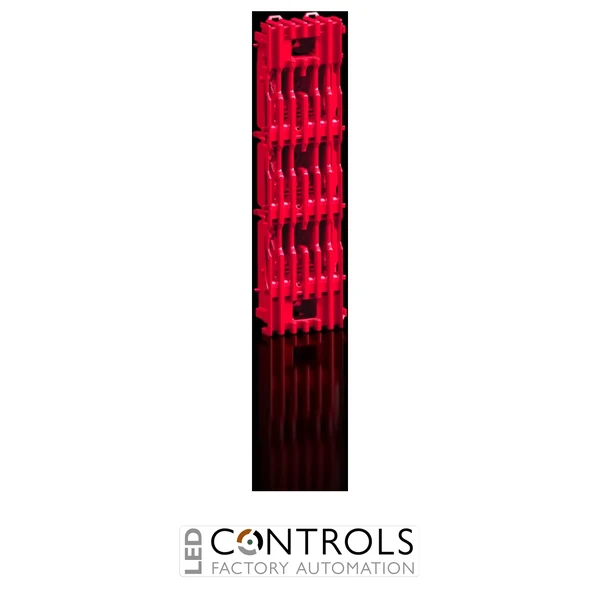

Rittal RX9360.150 RiLineX 3-pole 54 mm basic module with integrated busbar support for modular industrial power distribution systems.
£69.16
The Rittal RX9360.150 is a compact 3-pole RiLineX basic module designed for creating modular low-voltage busbar distribution systems. With a width of just 54 mm and an integrated busbar support suitable for top mounting, it provides the flexibility required by switchgear manufacturers, panel builders and industrial automation engineers to build customised RiLineX power distribution boards.
As part of the advanced Rittal RiLineX platform, the RX9360.150 supports flat copper busbars from 15 × 5 mm to 30 × 10 mm, enabling scalable current ratings while allowing modular system lengths up to 2400 mm when combined with additional RiLineX modules and accessories. The tool-free assembly design simplifies installation and future expansion.
Suitable for electrical systems operating up to 1000 V AC or 1500 V DC, the module provides comprehensive contact hazard protection to IP2XB, upgradeable to IP3X. The board is IEC and UL approved and may be installed horizontally, vertically or overhead, making it suitable for a wide variety of industrial power distribution applications.
The RX9360.150 is the most compact RiLineX basic module, making it ideal where installation space is limited while still providing the flexibility to build customised low-voltage busbar systems. Multiple modules can be combined with compatible end modules, baying sets and busbars to create fully configurable RiLineX boards.
Its modular design supports future expansion, simplified planning and efficient cable routing behind the board. The combination of scalable current ratings, comprehensive contact protection and international approvals makes the RX9360.150 suitable for demanding industrial power distribution applications.
| Phase | Three Phase |
|---|---|
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.150 |
| Product type | Modular busbar basic module |
| Number of poles | 3 |
| Module width | 54 mm |
| Maximum rated current | 800 A |
| Rated voltage | 1000 V AC / 1500 V DC |
| UL rated voltage | 600 V AC / DC |
| Rated insulation voltage | 1000 V AC / 1500 V DC |
| Rated impulse withstand voltage | 12 kV |
| Busbar compatibility | 15 × 5 mm, 20 × 5 mm, 30 × 5 mm and 30 × 10 mm |
| Busbar spacing | 60 mm |
| Protection rating | IP2XB (upgradeable to IP3X) |
| Short-term withstand current | 65 kA / 500 ms |
| Frequency | 50 / 60 Hz |
| Operating temperature | -5°C to 55°C |
| Storage temperature | -25°C to 75°C |
| Material | Polyamide (PA 6) |
| Dimensions (W × H × D) | 54 × 246 × 49.2 mm |
| Weight | Approx. 1.56 kg |
| HS Code | 85369010 |
The RX9360.150 is used as a compact 54 mm modular section for constructing customised RiLineX busbar distribution systems.
No. Busbars are supplied separately, allowing the correct size to be selected for the required current rating.
The module accepts flat busbars from 15 × 5 mm up to 30 × 10 mm.
The module supports systems with a maximum rated current of 800 A, depending on the selected busbar size.
Yes. The RiLineX platform is fully modular, allowing additional basic modules, end modules and baying accessories to be added as required.
Rittal RiLineX modular components are trusted worldwide by switchgear manufacturers and panel builders for delivering safe, scalable and highly adaptable industrial power distribution systems.
