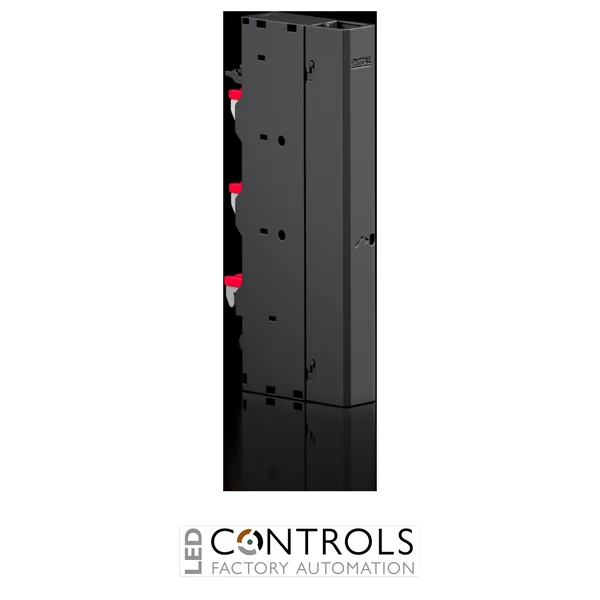

Rittal RX9360.200 RiLineX 3-pole connection adaptor with snap-on mounting and push-in conductor connection for 60 mm busbar systems.
£73.93
The Rittal RX9360.200 is a compact 3-pole RiLineX connection adaptor designed for making fast, secure conductor connections to 60 mm busbar systems. As part of the innovative Rittal RiLineX platform, the adaptor features snap-on mounting, push-in conductor technology and semi-automatic adjustment for busbar thicknesses between 5 mm and 10 mm, making installation quick and efficient.
Engineered for switchgear manufacturers, panel builders and industrial electrical contractors, the RX9360.200 delivers high current-carrying capacity while maintaining excellent short-circuit performance and comprehensive contact hazard protection. Conductors can be connected from either the top or bottom, offering maximum installation flexibility within compact control panels and power distribution systems.
Suitable for systems operating up to 800 V AC or 800 V DC, the adaptor accepts round conductors from 1.5 mm² to 16 mm² and is compatible with RiLineX and RiLine60 busbar systems using 60 mm busbar spacing. Its durable polyamide construction and IEC/UL approvals ensure dependable long-term operation in demanding industrial environments.
The RX9360.200 has been developed to reduce installation time while maintaining secure electrical connections within RiLineX power distribution systems. Its push-in conductor terminals and snap-on installation minimise assembly effort, making it an excellent solution for modern switchgear construction.
The adaptor automatically accommodates different busbar thicknesses between 5 mm and 10 mm and provides reliable contact protection for improved operational safety. Its flexible cable entry options allow neat routing of conductors in both new installations and retrofit projects.
| Phase | Three Phase |
|---|---|
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.200 |
| Product type | Connection adaptor |
| Number of poles | 3 |
| Rated voltage | 800 V AC / 800 V DC |
| UL rated voltage | 600 V AC / DC |
| Reference rated current (IEC) | 67 A |
| Maximum conductor current (IEC) | 76 A |
| Maximum conductor current (UL) | 66 A |
| Connection size | 1.5 to 16 mm² round conductors |
| Compatible busbars | 15 × 5/10 mm, 20 × 5/10 mm, 30 × 5/10 mm |
| Busbar thickness | 5 to 10 mm |
| Busbar spacing | 60 mm |
| Protection rating | IP2X |
| Material | Polyamide (PA 6) |
| Dimensions (W × H × D) | 26.8 × 239.2 × 103.3 mm |
| Weight | Approx. 1.2 kg |
| HS Code | 85369010 |
It provides a secure connection between round conductors and RiLineX or RiLine60 60 mm busbar systems.
The adaptor accepts round conductors from 1.5 mm² to 16 mm².
It is compatible with 15 mm, 20 mm and 30 mm wide busbars with thicknesses between 5 mm and 10 mm.
Yes. Conductors may be connected from either the top or bottom of the adaptor.
Yes. The RX9360.200 complies with IEC/EN 61439-1 and UL 508 standards for industrial power distribution systems.
Rittal RiLineX connection adaptors are trusted by panel builders and switchgear manufacturers for delivering fast installation, dependable conductor connections and safe low-voltage power distribution.
