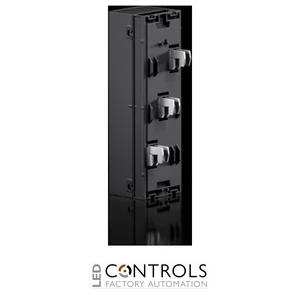

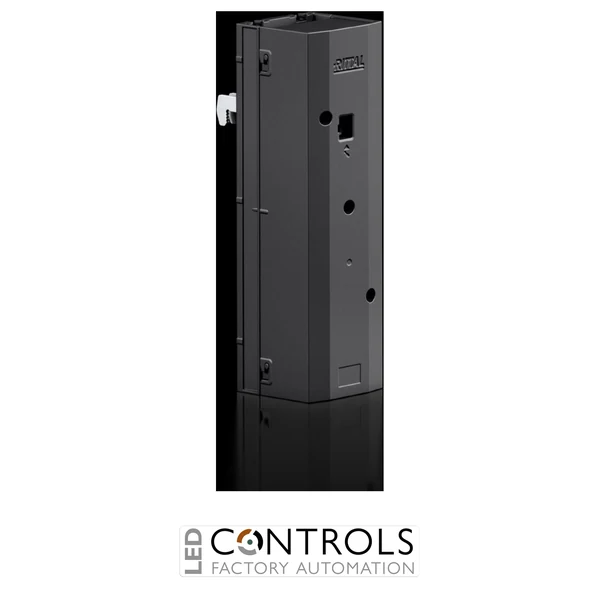

Rittal RX9360.210 RiLineX 3-pole high-current connection adaptor with screw fastening for 60 mm busbar systems.
£90.63
The Rittal RX9360.210 is a robust 3-pole RiLineX connection adaptor engineered for making high-current conductor connections to 60 mm busbar systems. Designed for the advanced Rittal RiLineX platform, it combines snap-on installation with a single screw connection, allowing both the busbar and conductor to be secured quickly and efficiently while maintaining excellent electrical performance.
Developed for switchgear manufacturers, panel builders and industrial electrical contractors, the RX9360.210 accommodates conductors up to 70 mm² and supports maximum currents of up to 320 A. Conductors may be connected from either the top or bottom, while through-wiring capability provides additional flexibility for modern power distribution systems.
Suitable for systems operating up to 800 V AC or 800 V DC, the adaptor is compatible with both RiLineX and RiLine60 busbar systems using 60 mm busbar spacing. Manufactured from durable polyamide (PA 6), it offers dependable contact protection and is certified to IEC and UL standards for demanding industrial environments.
The RX9360.210 has been developed for larger conductor sizes and higher current applications where secure electrical connections and rapid installation are essential. Its innovative design allows the adaptor to snap onto the RiLineX board while simultaneously fastening both the conductor and busbar using a single screw, reducing installation time and simplifying maintenance.
With support for conductor sizes up to 70 mm², excellent short-circuit performance and universal contact hazard protection, the RX9360.210 is ideally suited to demanding industrial power distribution systems requiring dependable long-term performance.
| Phase | Three Phase |
|---|---|
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.210 |
| Product type | Connection adaptor |
| Number of poles | 3 |
| Rated voltage | 800 V AC / 800 V DC |
| UL rated voltage | 600 V AC / 600 V DC |
| Rated current (guideline) | 171 A |
| Maximum rated current | 320 A |
| Maximum rated current (UL) | 280 A |
| Connection size | 2.5 mm² to 70 mm² round conductors |
| Busbar compatibility | 15 × 5/10 mm, 20 × 5/10 mm, 30 × 5/10 mm |
| Busbar thickness | 5 mm to 10 mm |
| Busbar spacing | 60 mm |
| Protection rating | IP2XB |
| Material | Polyamide (PA 6) |
| Dimensions (W × H × D) | 63.2 × 239.4 × 79.2 mm |
| Weight | Approx. 1.78 kg |
| EAN | 4028177997257 |
| HS Code | 85369010 |
It provides a high-current connection between round conductors and RiLineX or RiLine60 60 mm busbar systems.
The adaptor accepts round conductors from 2.5 mm² to 70 mm², depending on conductor type.
It is compatible with 15 mm, 20 mm and 30 mm wide busbars with thicknesses between 5 mm and 10 mm.
Yes. The adaptor allows cable entry from either the top or the bottom and supports through-wiring.
The RX9360.210 supports conductor currents of up to 320 A under IEC conditions.
Rittal RiLineX connection adaptors are trusted by panel builders and switchgear manufacturers for delivering fast installation, secure conductor connections and reliable high-current power distribution.
