Why Choose the Rittal RX9360.220 RiLineX Connection Adaptor?

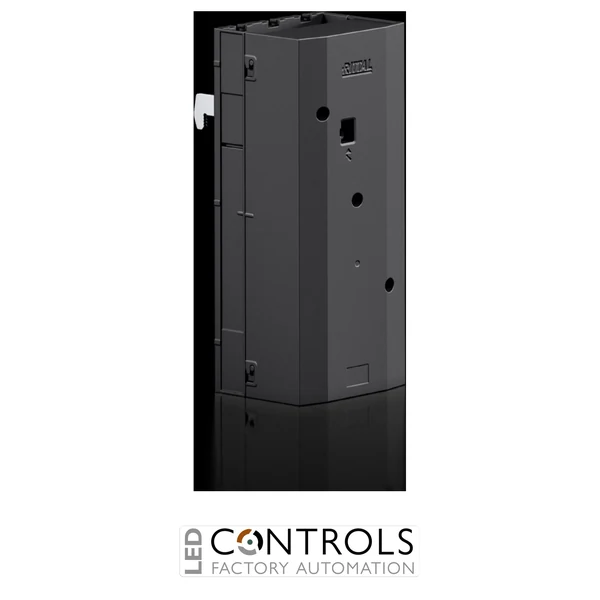

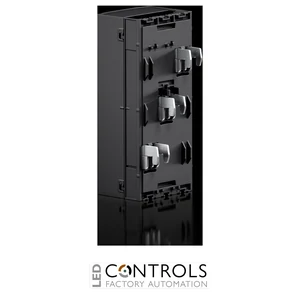

The Rittal RX9360.220 is a heavy-duty 3-pole RiLineX connection adaptor engineered for high-current conductor connections on 60 mm busbar systems. Designed for the advanced Rittal RiLineX platform, it combines snap-on installation with a single screw fastening that simultaneously secures the adaptor to the busbar and clamps the conductor, delivering rapid installation and dependable electrical performance.
Designed for switchgear manufacturers, panel builders and industrial electrical engineers, the RX9360.220 accommodates round conductors from 10 mm² to 150 mm² and supports conductor currents of up to 450 A (IEC). Conductors can be connected from either the top or bottom, while through-wiring capability provides greater flexibility when designing industrial power distribution systems.
Suitable for systems operating up to 1000 V AC or 1500 V DC, the adaptor is compatible with both RiLineX and RiLine60 busbar systems using 60 mm busbar spacing. Manufactured from durable polyamide (PA 6), it offers excellent short-circuit performance, universal contact protection and compliance with IEC/EN 61439-1 and UL 508 standards.
Key Advantages
- High-current connection adaptor rated up to 450 A (IEC).
- Single-screw installation secures both conductor and busbar.
- Snap-on mounting for fast installation.
- Supports round conductors up to 150 mm².
- Top or bottom cable entry with through-wiring capability.
- Compatible with RiLineX and RiLine60 busbar systems.
- Excellent short-circuit withstand performance.
- Universal contact hazard protection to IP2X.
Key Features
- Rittal RiLineX connection adaptor.
- 3-pole configuration.
- Snap-on installation with screw fastening.
- Suitable for busbar thicknesses between 5 mm and 10 mm.
- Compatible with 60 mm busbar spacing.
- Top and bottom cable outlet.
- Supports through-wiring.
- Polyamide (PA 6) housing with UL 94 fire performance.
- IEC and UL approved.
High-Capacity Busbar Connections for Demanding Applications
The RX9360.220 is designed for demanding industrial power distribution systems requiring secure connections for larger conductor sizes. Its innovative mounting system enables the adaptor to snap onto the RiLineX board while simultaneously securing both the conductor and the busbar using a single screw, significantly reducing installation time.
Supporting conductor sizes up to 150 mm² and current ratings up to 450 A, the adaptor delivers dependable long-term performance for industrial switchgear, motor control centres and OEM control panels while maintaining comprehensive contact hazard protection.
Typical Applications
- Industrial switchgear assemblies.
- High-current power distribution systems.
- Motor control centres.
- OEM machine building.
- Commercial electrical installations.
- RiLineX and RiLine60 busbar systems.
