Rittal RX9360.230 RiLineX 3-pole high-current connection adaptor for 60 mm busbar systems, supporting round conductors from 95 mm² to 240 mm² and currents up to 630 A IEC.
£64.39

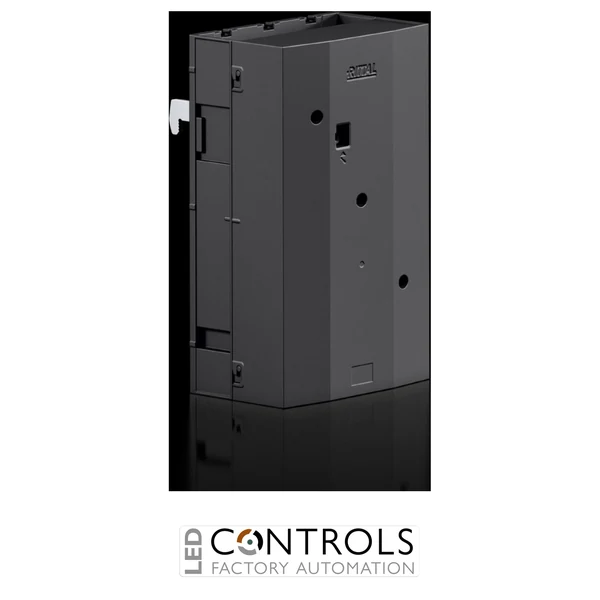

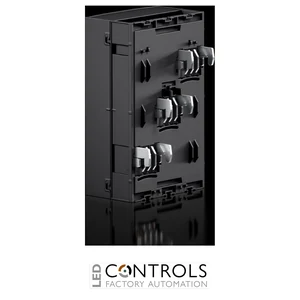

The Rittal RX9360.230 is a heavy-duty 3-pole RiLineX connection adaptor designed for high-current connections on 60 mm busbar systems. Its compact, touch-safe construction supports round conductors from 95 mm² to 240 mm², making it suitable for demanding industrial switchgear and power distribution applications.
Engineered for efficient panel assembly, the RX9360.230 snaps directly onto the RiLineX board. The supply conductors and adaptor are then secured to the busbar using a shared screw connection, reducing installation effort while providing reliable electrical contact. Conductors can enter from either the top or bottom, and the connection clamps support through-wiring for greater system flexibility.
The adaptor supports round-conductor currents of up to 630 A under IEC conditions and 600 A under UL conditions. It may also be used with laminated copper bars, supporting currents up to 790 A IEC. Compatibility with both RiLineX and RiLine60 systems makes it a versatile solution for new installations, system extensions and modernisation projects.
The RX9360.230 is designed for applications where large conductors must be connected securely without unnecessarily increasing the switchgear footprint. Its snap-on mounting system positions the adaptor directly on the RiLineX board, while the combined screw fastening creates contact between the busbar and conductor in a single installation step.
Universal contact hazard protection adapts to the relevant conductor size, helping maintain a touch-safe installation across the supported connection range. The ability to connect conductors from above or below, combined with through-wiring capability, also supports organised cable routing and flexible switchgear design.
| Phase | Three Phase |
|---|---|
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.230 |
| Article number | 9360230 |
| Product type | High-current connection adaptor |
| Number of poles | 3 |
| Rated current, guideline value IEC | 375 A |
| Maximum round-conductor current IEC | 630 A |
| Maximum round-conductor current UL | 600 A |
| Maximum laminated copper-bar current IEC | 790 A |
| Maximum laminated copper-bar current UL | 760 A |
| Round-conductor connection | 95 mm² to 240 mm² |
| Laminated copper-bar clamping area | 24 × 20 mm |
| Rated voltage | 1000 V AC / 1500 V DC |
| UL rated voltage | 600 V AC / 600 V DC |
| Rated insulation voltage | 1000 V |
| Rated impulse withstand voltage | 12 kV |
| Busbar compatibility | 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm |
| Busbar thickness | 5 mm or 10 mm |
| Busbar spacing | 60 mm |
| Cable outlet | Top or bottom |
| Protection rating | IP2X |
| UL short-circuit current rating | 27.5 kA at 600 V unprotected; up to 100 kA with specified protective devices |
| Standards | IEC/EN 61439-1 and UL 508 |
| Approvals | UL and C-UL Listed |
| Pollution degree | 3 |
| Maximum heat loss | 20 W |
| Operating temperature | -5°C to 55°C |
| Storage temperature | -25°C to 75°C |
| Maximum operating humidity | 90%, non-condensing |
| Material | Polyamide PA 6 |
| Fire performance | Corresponding to UL 94 |
| Colour | RAL 9005 |
| Dimensions (W × H × D) | 126.8 × 239.4 × 104.6 mm |
| Net weight | 1.5 kg |
| Pack quantity | 1 piece |
| Customs tariff number | 85369010 |
| ETIM classification | EC001531 |
| EAN | 4028177997233 |
| HS Code | 85369010 |
It is used to connect large round conductors or compatible laminated copper bars to RiLineX and RiLine60 busbar systems with 60 mm spacing.
The adaptor accepts round conductors ranging from 95 mm² to 240 mm².
The maximum recommended current for round conductors is 630 A under IEC conditions and 600 A under UL conditions. Laminated copper bars may support higher currents, subject to the application design.
Yes. The RX9360.230 supports conductor entry from either above or below and its connection clamps allow through-wiring.
The adaptor is compatible with Rittal RiLineX and RiLine60 systems using 60 mm busbar spacing and 5 mm or 10 mm-thick busbars.
Rittal RiLineX connection adaptors provide panel builders and switchgear manufacturers with secure, touch-safe and space-efficient connections for demanding industrial power distribution systems.
