Why Choose the Rittal RX9360.240 RiLineX Connection Adaptor?

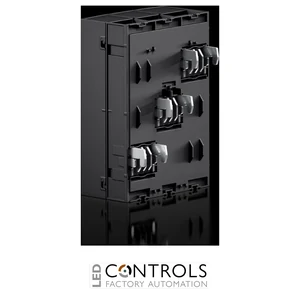

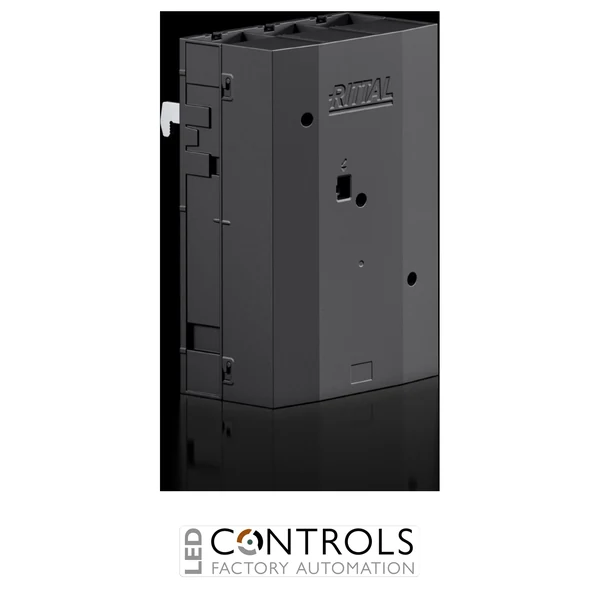

The Rittal RX9360.240 is a heavy-duty 3-pole RiLineX connection adaptor designed for high-current conductor connections on 60 mm busbar systems. As part of the advanced Rittal RiLineX platform, it features a compact, touch-safe design with snap-on installation and a single screw fastening that simultaneously secures both the conductor and the busbar for rapid, reliable assembly.
Designed for switchgear manufacturers, panel builders and industrial electrical engineers, the RX9360.240 accommodates large round conductors from 95 mm² to 300 mm² and laminated copper bars with a clamping area of 32 × 20 mm. Conductors can be connected from either the top or bottom, while the dividable connection clamp simplifies installation and supports through-wiring where required.
Suitable for electrical systems operating up to 1000 V AC or 1500 V DC, the adaptor supports round-conductor currents up to 680 A (IEC) and laminated copper bar currents up to 870 A (IEC). It is fully compatible with both RiLineX and RiLine60 60 mm busbar systems and complies with IEC/EN 61439-1 and UL 508 requirements.
Key Advantages
- Heavy-duty connection adaptor supporting round-conductor currents up to 680 A (IEC).
- Supports laminated copper bars up to 870 A (IEC).
- Accepts round conductors from 95 mm² to 300 mm².
- Snap-on installation with single-screw conductor and busbar fastening.
- Top or bottom cable entry for flexible installation.
- Compatible with RiLineX and RiLine60 busbar systems.
- Excellent short-circuit withstand performance.
- Touch-safe contact hazard protection to IP2X.
Key Features
- Rittal RiLineX connection adaptor.
- 3-pole configuration.
- Designed for 60 mm busbar spacing.
- Suitable for busbar thicknesses of 5 mm and 10 mm.
- Compatible with 15 mm, 20 mm and 30 mm-wide busbars.
- Dividable connection clamp for simple conductor insertion.
- Connection from above or below.
- Suitable for round conductors and laminated copper bars.
- Durable polyamide (PA 6) housing.
- IEC and UL approved.
Reliable High-Current Connections for Large Conductors
The RX9360.240 has been developed for demanding industrial power distribution systems requiring dependable connections for very large conductors and laminated copper bars. Its snap-on installation reduces assembly time, while the combined screw fastening simultaneously creates the electrical connection and adjusts automatically for busbar thicknesses of 5 mm or 10 mm.
The dividable connection clamp makes conductor insertion straightforward, while universal contact hazard protection helps maintain safe operation across a wide range of conductor sizes. With high current ratings, international approvals and compatibility with RiLineX and RiLine60 systems, the RX9360.240 is ideal for modern switchgear assemblies and power distribution installations.
Typical Applications
- Industrial low-voltage switchgear.
- Main incoming and outgoing power connections.
- High-current distribution boards.
- Motor control centres.
- OEM machine-building control panels.
- Manufacturing and process automation.
- RiLineX and RiLine60 busbar systems.
