Why Choose the Rittal RX9360.241 RiLineX Vertical Connection Adaptor?

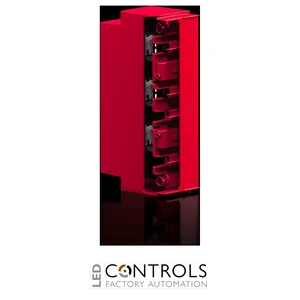

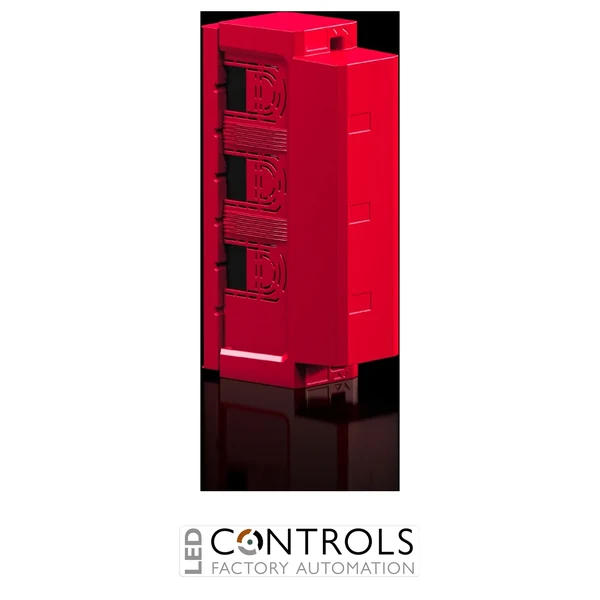

The Rittal RX9360.241 is a specialised 3-pole RiLineX vertical connection adaptor designed for side infeed from either the left or right on RiLineX 60 mm busbar systems. It is engineered for vertical board installations, corner connections using laminated copper connection straps, and T-connections between horizontal and vertical RiLineX systems, providing exceptional flexibility in complex power distribution assemblies.
Designed for switchgear manufacturers, panel builders and industrial electrical engineers, the RX9360.241 features a snap-on mounting system with a single screw that simultaneously secures both the adaptor and conductor, reducing installation time while maintaining reliable electrical contact. The adaptor accepts large round conductors from 150 mm² to 300 mm² as well as laminated copper bars with a clamping area of 32 × 20 mm.
Suitable for systems operating up to 1000 V AC or 1500 V DC, the adaptor supports round-conductor currents up to 710 A (IEC) and laminated copper bar currents up to 950 A (IEC). Manufactured from durable polyamide (PA 6), it offers touch-safe IP2X protection and complies with IEC/EN 61439-1 and UL 508 standards. This adaptor is intended exclusively for RiLineX systems and must not be used with other busbar systems such as RiLine60.
Key Advantages
- Designed specifically for vertical side infeed from the left or right.
- Suitable for corner connections and T-connections within RiLineX systems.
- Supports round-conductor currents up to 710 A (IEC).
- Supports laminated copper bar currents up to 950 A (IEC).
- Accepts round conductors from 150 mm² to 300 mm².
- Single-screw fastening secures both the conductor and adaptor.
- Quick snap-on installation reduces assembly time.
- Touch-safe IP2X protection for improved operational safety.
Key Features
- Rittal RiLineX vertical connection adaptor.
- 3-pole configuration.
- Vertical version for side board infeed.
- Suitable for left or right cable entry.
- Ideal for corner and T-connections.
- Compatible with 15 mm, 20 mm and 30 mm busbars.
- Suitable for 5 mm and 10 mm busbar thicknesses.
- Axial cable outlet.
- Polyamide (PA 6) housing with UL 94 fire performance.
- IEC and UL approved.
Purpose-Built for Vertical RiLineX Installations
The RX9360.241 has been specifically developed for vertical power distribution within RiLineX systems. Unlike standard connection adaptors, it enables side feeding from either direction, making it particularly suitable for vertically mounted boards, corner transitions and T-connections where conventional feed arrangements are impractical.
Its high current capability, rapid installation method and compatibility with both large conductors and laminated copper bars make it an excellent solution for complex industrial switchgear where reliability, flexibility and efficient assembly are essential.
Typical Applications
- Vertical RiLineX power distribution boards.
- Side-fed industrial switchgear assemblies.
- Corner busbar connections.
- T-connections between horizontal and vertical systems.
- Main incoming and outgoing feeders.
- OEM control panels and machine building.
- Industrial automation and infrastructure projects.
