Why Choose the Rittal RX9360.500 RiLineX CB Component Adaptor?

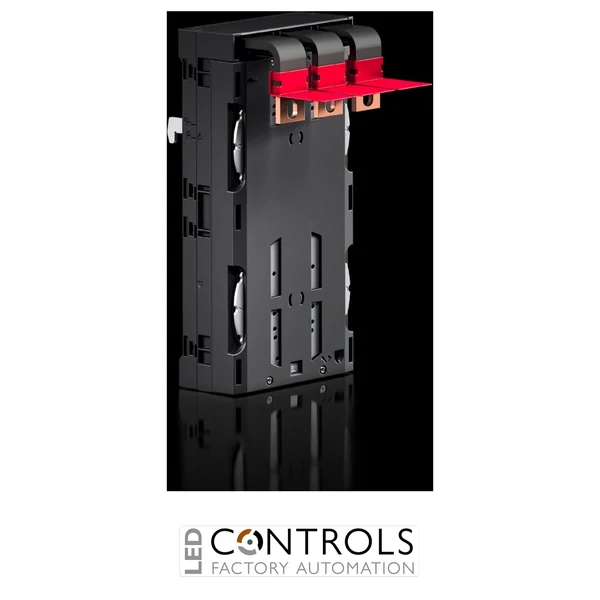

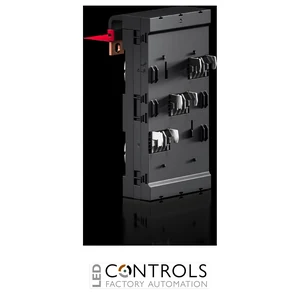

The Rittal RX9360.500 is a 3-pole RiLineX CB component adaptor designed for the direct installation of moulded case circuit breakers (MCCBs) onto RiLineX and RiLine60 60 mm busbar systems. Featuring Rittal's innovative Easy-Fix concept, the adaptor allows the MCCB and adaptor to be assembled independently before being snapped quickly onto the busbar system, significantly reducing installation time.
The adaptor supports circuit breakers with ratings up to 160 A and accommodates numerous MCCB models from leading manufacturers including ABB, Eaton, Schneider Electric, Siemens, Mitsubishi, Legrand, Hager, LS Electric, Rockwell, Hyundai Electric and many others. Its tool-free snap-on mounting automatically adjusts to 5 mm or 10 mm busbar thicknesses, providing fast, reliable installation without additional accessories.
Manufactured from durable polyamide (PA 6), the RX9360.500 provides IP2XB touch protection, high mechanical strength and compliance with IEC and UL standards. The cable outlet can be configured for either the top or bottom, allowing maximum flexibility during switchboard design and assembly.
Key Advantages
- Direct mounting of MCCBs onto RiLineX and RiLine60 busbar systems.
- Innovative Easy-Fix design for rapid installation.
- Supports moulded case circuit breakers up to 160 A.
- Tool-free snap-on installation.
- Automatic adjustment for 5 mm and 10 mm busbars.
- Top or bottom cable outlet configuration.
- Suitable for a wide range of leading MCCB manufacturers.
- Touch-safe IP2XB protection.
Key Features
- Rittal RiLineX CB component adaptor.
- 3-pole Easy-Fix design.
- Rated current up to 160 A.
- Compatible with RiLineX and RiLine60 systems.
- Suitable for 15 mm, 20 mm and 30 mm busbars.
- Compatible with 5 mm and 10 mm busbar thicknesses.
- Frame terminal electrical connection.
- Includes three connection space covers.
- Tool-free snap-on mounting.
- High-strength polyamide housing.
Fast MCCB Installation with Easy-Fix Technology
The Easy-Fix concept enables moulded case circuit breakers to be mounted onto the adaptor outside the enclosure before being snapped directly onto the RiLineX board. This simplifies assembly, reduces installation time and allows switchgear manufacturers to standardise production across multiple MCCB brands. Semi-automatic adjustment compensates for both 5 mm and 10 mm busbar thicknesses without requiring additional components.
Supporting a broad range of MCCBs from ABB, Schneider Electric, Siemens, Eaton, Mitsubishi, Legrand, Rockwell and many other manufacturers, the RX9360.500 provides a versatile solution for modern industrial power distribution systems while maintaining excellent electrical safety and reliability.
Typical Applications
- Industrial switchgear assemblies.
- MCCB mounting on RiLineX busbar systems.
- Power distribution panels.
- Machine building and OEM equipment.
- Motor control centres.
- Commercial electrical installations.
- RiLine60 modernisation projects.
