Why Choose the Rittal RX9360.512 RiLineX CB Component Adaptor?

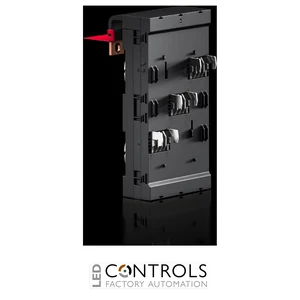

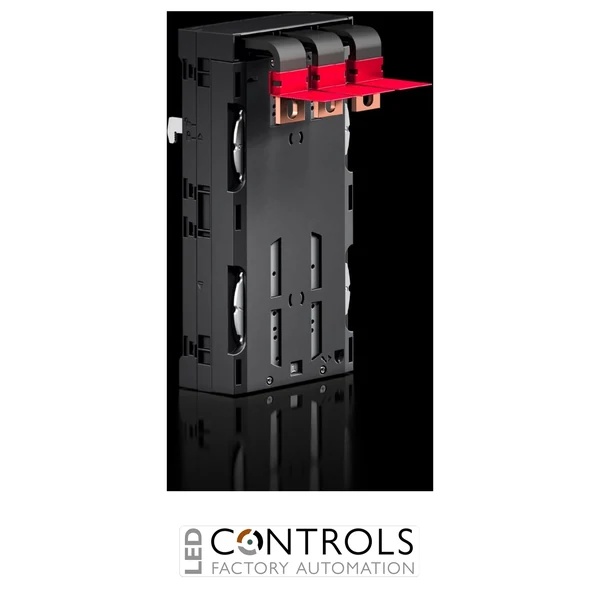

The Rittal RX9360.512 is a 3-pole RiLineX CB component adaptor engineered for the direct installation of moulded case circuit breakers (MCCBs) rated up to 250 A onto RiLineX and RiLine60 60 mm busbar systems. Featuring Rittal's innovative Easy-Fix concept, the adaptor and circuit breaker can be assembled independently before being snapped directly onto the busbar, significantly reducing installation time and simplifying switchboard assembly.
Designed for panel builders, OEMs and switchgear manufacturers, the RX9360.512 provides tool-free snap-on mounting with semi-automatic adjustment for both 5 mm and 10 mm busbar thicknesses. The cable outlet can easily be configured for either the top or bottom to suit individual panel layouts, while the robust polyamide housing delivers excellent mechanical strength and long-term durability.
Supporting a wide range of MCCBs from manufacturers including ABB, Eaton, Schneider Electric, Siemens, Mitsubishi, Legrand, Hyundai Electric, Rockwell, LS Electric and many more, the RX9360.512 provides an extremely versatile mounting solution for modern industrial power distribution systems operating up to 1000 V AC or 1500 V DC.
Key Advantages
- Direct mounting of moulded case circuit breakers up to 250 A.
- Easy-Fix design enables rapid pre-assembly outside the enclosure.
- Tool-free snap-on installation.
- Automatically adapts to 5 mm and 10 mm busbar thicknesses.
- Suitable for RiLineX and RiLine60 60 mm busbar systems.
- Top or bottom cable outlet configuration.
- Compatible with numerous leading MCCB manufacturers.
- Touch-safe IP2XB protection.
Key Features
- Rittal RiLineX CB component adaptor.
- Easy-Fix 3-pole design.
- Maximum rated current 250 A.
- Tool-free snap-on mounting.
- Screw M8 electrical connection.
- Suitable for 15 mm, 20 mm and 30 mm busbars.
- Compatible with 5 mm and 10 mm busbar thicknesses.
- Bottom cable outlet (convertible to top).
- Includes three connection compartment covers.
- High-strength polyamide (PA 6) construction.
Fast Installation with Easy-Fix Technology
The RX9360.512 has been developed to simplify MCCB installation on RiLineX power distribution systems. Circuit breakers can be mounted to the adaptor before installation, allowing complete assemblies to be snapped directly onto the busbar without tools. Semi-automatic adjustment compensates for both 5 mm and 10 mm busbar thicknesses, reducing installation time while ensuring a secure electrical connection.
Compatibility with a broad range of popular MCCBs from leading global manufacturers makes the adaptor an ideal solution for standardising switchboard construction across multiple projects while maintaining safe, reliable and efficient power distribution.
Typical Applications
- Industrial switchgear assemblies.
- Power distribution panels.
- MCCB installation on RiLineX busbar systems.
- Machine building and OEM control panels.
- Motor control centres.
- Commercial electrical installations.
- RiLine60 upgrade projects.
