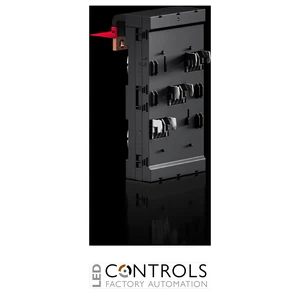

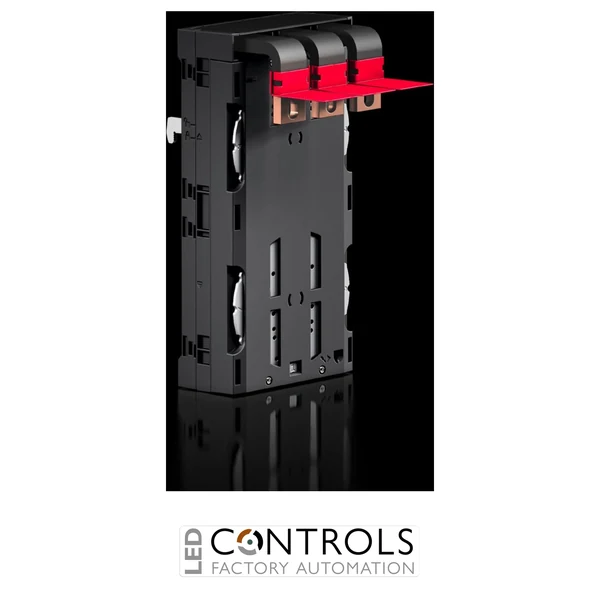

Rittal RX9360.535 Easy-Fix 3-pole CB component adaptor for mounting moulded-case circuit breakers up to 630 A onto RiLineX and RiLine60 60 mm busbar systems.
£208.45
The Rittal RX9360.535 is a heavy-duty 3-pole RiLineX CB component adaptor designed for mounting moulded-case circuit breakers (MCCBs) rated up to 630 A directly onto RiLineX and RiLine60 60 mm busbar systems. Featuring Rittal's innovative Easy-Fix concept, the adaptor enables circuit breakers and adaptors to be assembled independently before the complete unit is snapped onto the busbar system, significantly reducing installation time and simplifying switchboard construction.
Designed for industrial switchgear manufacturers, panel builders and OEMs, the RX9360.535 features tool-free snap-on mounting with semi-automatic adjustment for 5 mm and 10 mm busbar thicknesses. The cable outlet can be configured for either the top or bottom, providing maximum flexibility when designing modern low-voltage power distribution systems.
Manufactured from durable polyamide (PA 6), the adaptor provides IP2XB touch protection, IEC and UL approvals, and compatibility with a wide range of MCCBs from manufacturers including ABB, Eaton, Schneider Electric, Siemens, Mitsubishi Electric, LS Electric, Hager, Rockwell Automation and many others.
The RX9360.535 allows moulded-case circuit breakers to be mounted onto the adaptor outside the enclosure before the complete assembly is installed onto the RiLineX busbar system. This simplifies production, improves accessibility during assembly and reduces overall installation time. Semi-automatic adjustment compensates for both 5 mm and 10 mm busbar thicknesses without requiring additional components.
Designed for demanding industrial power distribution applications, the adaptor combines a high 630 A current rating with secure M10 electrical connections, tool-free installation and compatibility with many of the industry's most widely used MCCB ranges.
The RX9360.535 supports selected moulded-case circuit breakers from numerous manufacturers, including:
Rittal's component adaptor selection guide should always be consulted to confirm compatibility with the specific MCCB model being installed.
| Current | 630 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.535 |
| Article number | 9360535 |
| Product type | CB component adaptor |
| Design | Easy Fix |
| Number of poles | 3 |
| Maximum rated current | 630 A |
| Rated voltage | 690 V AC |
| UL rated voltage | 600 V AC |
| Rated insulation voltage | 1000 V |
| Rated impulse withstand voltage | 8 kV |
| Overvoltage category | IV |
| Pollution degree | 3 |
| Electrical connection | Screw M10 |
| Connection cross-section | 290 mm² |
| Cable outlet | Top or bottom |
| Compatible busbar systems | RiLineX and RiLine60 |
| Busbar spacing | 60 mm |
| Compatible busbar sizes | 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm |
| Protection rating | IP2XB |
| Material | Polyamide (PA 6) |
| Operating temperature | -25°C to +55°C |
| Storage temperature | -25°C to +75°C |
| Humidity | 10–90% non-condensing |
| Dimensions (W × H × D) | 145 × 325.8 × 76.4 mm |
| Net weight | Approx. 5.0 kg |
| Copper content | 2.64 kg |
| EAN | 4028177997110 |
| Approvals | UL and C-UL Listed |
| HS Code | 85369095 |
It is used to mount compatible moulded-case circuit breakers directly onto RiLineX and RiLine60 60 mm busbar systems.
The RX9360.535 has a maximum rated current of 630 A.
It is compatible with both RiLineX and RiLine60 60 mm busbar systems using 15 mm, 20 mm or 30 mm busbars with thicknesses of 5 mm or 10 mm.
Yes. The cable outlet can be configured for either the top or the bottom without tools.
The adaptor supports compatible MCCBs from ABB, Eaton, Schneider Electric, Siemens, Mitsubishi Electric, LS Electric, Rockwell Automation, Hager, Chint, Terasaki and several other manufacturers.
Rittal Easy-Fix CB component adaptors enable switchgear manufacturers and panel builders to install high-current moulded-case circuit breakers quickly, safely and consistently on RiLineX busbar systems.
