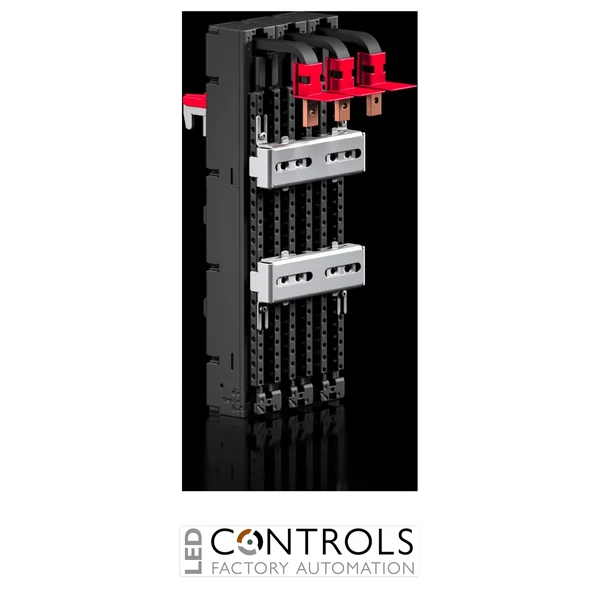

Rittal RX9360.600 Universal Fix 3-pole CB component adaptor for mounting moulded-case circuit breakers up to 160 A on RiLineX and RiLine60 busbar systems.
£53.45
The Rittal RX9360.600 is a 3-pole Universal Fix CB component adaptor designed for the direct installation of moulded-case circuit breakers (MCCBs) rated up to 160 A onto RiLineX and RiLine60 60 mm busbar systems. Its universal design with adjustable U-nuts offers exceptional flexibility, making it suitable for a broad range of circuit breaker manufacturers and models.
The adaptor incorporates Rittal's tool-free snap-on mounting system with automatic adjustment for both 5 mm and 10 mm busbar thicknesses. Circuit breakers can be pre-mounted onto the adaptor outside the enclosure before the complete assembly is snapped onto the busbar, reducing installation time and improving production efficiency.
Manufactured from durable polyamide (PA 6), the RX9360.600 provides IP2XB touch protection, IEC and UL approvals, and is designed for bottom cable outlet installations. The Universal Fix arrangement delivers maximum flexibility when installing compatible MCCBs into modern industrial switchgear and power distribution systems.
The Universal Fix design uses adjustable U-nuts to provide maximum flexibility when mounting compatible moulded-case circuit breakers. This allows panel builders to standardise busbar assemblies while accommodating numerous breaker types from leading manufacturers. Tool-free installation and simple busbar adjustment help reduce assembly time without compromising reliability.
Designed for industrial switchgear, OEM equipment and commercial power distribution systems, the RX9360.600 combines fast installation, high mechanical strength and proven electrical performance in a compact adaptor suitable for modern RiLineX installations.
| Current | 160 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.600 |
| Article number | 9360600 |
| Product type | Universal CB component adaptor |
| Design | Universal Fix |
| Number of poles | 3 |
| Maximum rated current | 160 A |
| UL rated current | 125 A |
| Rated voltage | 690 V AC |
| UL rated voltage | 600 V AC |
| Rated insulation voltage | 1000 V |
| Rated impulse withstand voltage | 8 kV |
| Overvoltage category | IV |
| Pollution degree | 3 |
| Electrical connection | Box terminal |
| Connection cross-section | 6–9 mm² |
| Cable outlet | Bottom |
| Compatible busbar systems | RiLineX and RiLine60 |
| Busbar spacing | 60 mm |
| Compatible busbars | 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm |
| Protection rating | IP2XB |
| Material | Polyamide (PA 6) |
| Operating temperature | -25°C to +55°C |
| Storage temperature | -25°C to +75°C |
| Humidity | 10–90% non-condensing |
| Dimensions (W × H × D) | 81.9 × 251.4 × 50.8 mm |
| Net weight | 0.92 kg |
| Copper content | 0.375 kg |
| EAN | 4028177997103 |
| Approvals | UL and C-UL Listed |
| HS Code | 85369095 |
It is a Universal Fix adaptor used for mounting compatible moulded-case circuit breakers directly onto RiLineX and RiLine60 60 mm busbar systems.
The adaptor is designed for circuit breakers rated up to 160 A.
The Universal Fix version uses adjustable U-nuts, providing greater flexibility for mounting a wide variety of compatible MCCBs.
It is compatible with RiLineX and RiLine60 busbar systems using 15 mm, 20 mm or 30 mm busbars with thicknesses of 5 mm or 10 mm.
No. The adaptor features Rittal's tool-free snap-on mounting system for rapid installation.
Rittal Universal Fix CB component adaptors provide flexible, reliable and efficient installation of moulded-case circuit breakers, helping manufacturers build safe and consistent low-voltage power distribution systems.
