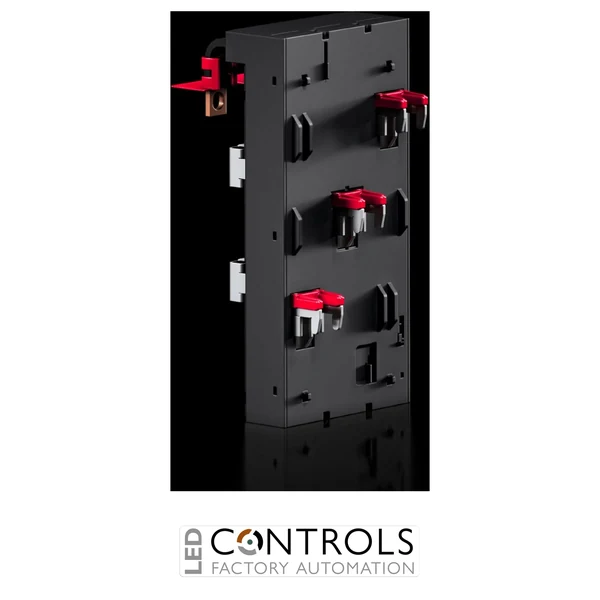

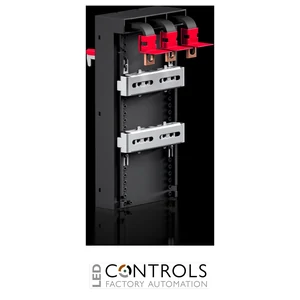

Rittal RX9360.612 universal 3-pole CB component adaptor for RiLineX and RiLine 60 busbar systems, rated up to 250 A for industrial power distribution.
£81.75
The Rittal RX9360.612 is a high-quality 3-pole CB component adaptor designed for the RiLineX busbar platform and compatible 60 mm busbar systems including RiLine 60. Engineered for industrial power distribution applications, this adaptor enables the direct installation of moulded case circuit breakers (MCCBs) onto busbar systems, helping reduce installation time while delivering a safe and reliable electrical connection.
Featuring Rittal's innovative tool-free snap-on mounting system, the RX9360.612 allows rapid installation with automatic adjustment for busbar thicknesses between 5 mm and 10 mm. The universal design with U nuts provides excellent compatibility with a wide range of MCCBs from leading manufacturers, making it an ideal solution for panel builders, switchgear manufacturers and industrial control engineers.
Rated for applications up to 250 A, the adaptor offers dependable performance in demanding industrial environments. The reversible cable outlet, robust polyamide construction and IP2XB protection make it suitable for modern low-voltage power distribution systems requiring flexibility, safety and long-term reliability.
The Rittal RX9360.612 has been developed to simplify the installation of moulded case circuit breakers within modern power distribution systems. By mounting directly onto RiLineX and RiLine 60 busbar platforms, it reduces wiring complexity while improving assembly efficiency and system reliability.
Its universal compatibility with numerous MCCB manufacturers provides flexibility for panel builders and OEMs, whilst the durable construction ensures dependable operation in demanding industrial environments.
| Current | 250 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Rittal |
| Series | RX |
| Model | RX9360.612 |
| Alternative SKU | 9360612 |
| Product type | CB component adaptor |
| Design | Universal Fix |
| Rated current | 250 A |
| Rated voltage | 1000 V AC / 1500 V DC |
| Number of poles | 3 |
| Electrical connection | Screw M8 |
| Protection rating | IP2XB |
| Busbar spacing | 60 mm |
| Compatible busbar thickness | 5-10 mm |
| Adapter width | 105 mm |
| Dimensions (H × W × D) | Approx. 252 × 105 × 63 mm |
| Material | Polyamide (PA6) |
| Colour | RAL 9005 |
| Operating temperature | -25°C to +55°C |
| Weight | Approx. 1.29 kg |
| HS Code | 85369095 |
It is used to mount moulded case circuit breakers directly onto RiLineX and RiLine 60 busbar systems within industrial electrical installations.
The adaptor is designed for applications up to 250 A.
It is compatible with the Rittal RiLineX platform and RiLine 60 busbar systems using 60 mm busbar spacing.
No. The adaptor features a convenient tool-free snap-on mounting system with automatic adjustment for busbar thickness.
The universal design supports compatible MCCBs from manufacturers including ABB, Schneider Electric, Siemens, Eaton, Mitsubishi, Legrand, Fuji Electric and many others.
Rittal RiLineX components are trusted by electrical engineers, switchgear manufacturers and OEM panel builders for delivering safe, efficient and flexible power distribution solutions across industrial applications.
