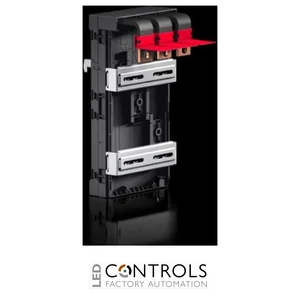

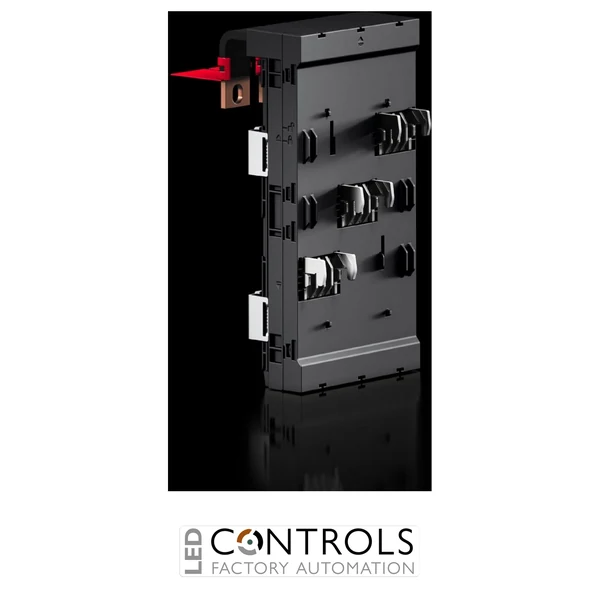

RX9360.625 Rittal RilineX CB component adaptor 400A, 3-pole, Universal Fix

RX9360.625 Rittal RilineX CB component adaptor 400A, 3-pole, Universal Fix

Rittal RX9360.625 universal 3-pole CB component adaptor for RiLineX and RiLine60 busbar systems, rated up to 400 A for industrial power distribution.

SKU: RX9360.625Alt SKU: 9360625MPN: RX9360.625
Price
List Price £160.27 ex VAT
Your Price (ex VAT)
£160.27
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £160.27
Trade pricing is personalised to your account

Manufacturer Lead Time

£160.27

Why Choose the Rittal RX9360.625 CB Component Adaptor?

The Rittal RX9360.625 is a robust 3-pole CB component adaptor engineered for the RiLineX busbar platform and compatible 60 mm busbar systems including RiLine60. Designed for industrial power distribution, it enables the direct mounting of moulded case circuit breakers (MCCBs) onto busbar systems, simplifying panel assembly while providing a secure and reliable electrical connection.

Its Universal Fix design with sliding U nuts offers excellent compatibility with a wide range of MCCBs from leading manufacturers. Tool-free snap-on mounting and semi-automatic adjustment for busbar thicknesses between 5 mm and 10 mm significantly reduce installation time, making it an ideal choice for panel builders, switchgear manufacturers and industrial automation professionals.

With a maximum rated current of 400 A, the RX9360.625 is suitable for demanding low-voltage power distribution applications. The adaptor features a reversible cable outlet, durable polyamide construction and IP2XB finger-safe protection to ensure reliable long-term performance in industrial environments.

Key Advantages

  • Universal CB component adaptor for RiLineX and RiLine60 busbar systems.
  • 400 A maximum current rating for demanding industrial applications.
  • Tool-free snap-on installation speeds up panel assembly.
  • Automatic adjustment for 5 mm to 10 mm busbar thicknesses.
  • Universal Fix design compatible with numerous MCCB manufacturers.
  • Top or bottom cable outlet for flexible installation.

Key Features

  • Rittal RX series CB component adaptor.
  • Universal Fix 3-pole design.
  • 400 A maximum rated current.
  • Suitable for RiLineX and RiLine60 busbar systems.
  • Supports 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm busbars.
  • Tool-free snap-on mounting.
  • IP2XB protection.
  • M10 screw electrical connection.
  • High-strength flame-retardant PA6 construction.

Reliable Busbar Mounting for Industrial Switchgear

The Rittal RX9360.625 has been developed to provide a safe, efficient and space-saving method of mounting moulded case circuit breakers directly onto RiLineX and RiLine60 busbar systems. By eliminating unnecessary wiring and simplifying assembly, it helps improve both installation efficiency and long-term system reliability.

Its Universal Fix configuration allows compatibility with a broad range of MCCBs, while the durable construction and high electrical ratings make it suitable for demanding industrial control panels, switchboards and OEM equipment.

Typical Applications

  • Industrial switchboards.
  • Low-voltage power distribution systems.
  • Machine control panels.
  • Motor control centres.
  • OEM electrical equipment.
  • Industrial automation cabinets.

Technical Specifications

Tick the specs you need, then view products that match.

Busbar Centre Distance (mm) 60 mm
Product Series Rittal RiLine
Device Type Component adapter
Current 400 A
Phase Three Phase
Poles 3-pole
Manufacturer Rittal
Series RX
Model RX9360.625
Alternative SKU 9360625
Product type CB component adaptor
Design Universal Fix
Maximum rated current 400 A
Rated voltage 1000 V AC / 1500 V DC
Number of poles 3
Electrical connection Screw M10
Protection rating IP2XB
Busbar spacing 60 mm
Compatible busbar thickness 5 to 10 mm
Compatible busbar sizes 15 × 5/10 mm, 20 × 5/10 mm, 30 × 5/10 mm
Cable outlet Top or bottom
Material Polyamide (PA6)
Colour RAL 9005
Operating temperature -25°C to +55°C
Dimensions (H × W) Approx. 325 × 140 mm
Weight Approx. 3.6 kg
HS Code 85369095

Frequently Asked Questions

What is the Rittal RX9360.625 used for?

It is designed for mounting moulded case circuit breakers directly onto RiLineX and RiLine60 60 mm busbar systems.

What is the maximum current rating?

The adaptor is rated for applications up to 400 A.

Which busbar systems is it compatible with?

It is compatible with RiLineX and RiLine60 busbar systems with 60 mm bar spacing.

Does the adaptor require tools for installation?

No. It features tool-free snap-on mounting with automatic adjustment for busbar thicknesses between 5 mm and 10 mm.

Can the cable outlet be repositioned?

Yes. The cable outlet can be configured at either the top or bottom to suit the installation layout.

Trusted by Panel Builders Worldwide

Rittal RiLineX power distribution components are trusted by electrical engineers, OEM machine builders and switchgear manufacturers for delivering safe, efficient and flexible industrial power distribution solutions.
