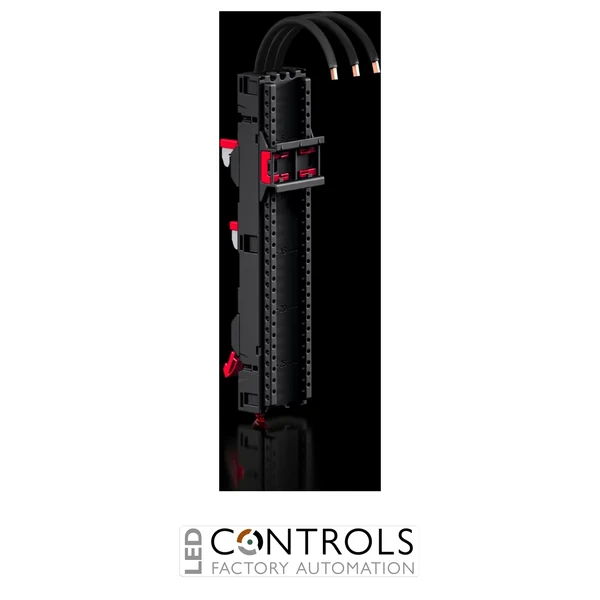

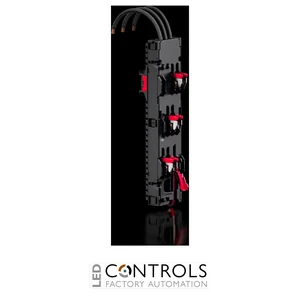

Rittal RX9360.710 RiLineX 3-pole component adaptor with pre-assembled AWG 14 connection cable for RiLineX and RiLine60 60 mm busbar systems.
£65.90
The Rittal RX9360.710 is a premium RiLineX component adaptor with pre-assembled connection cable, designed for mounting DIN rail electrical equipment directly onto RiLineX and RiLine60 60 mm busbar systems. Ideal for motor starters, protective devices and switching equipment, it provides a fast, reliable and space-saving solution for industrial power distribution panels.
Featuring a factory-fitted AWG 14 connection cable, the RX9360.710 significantly reduces installation time while ensuring a dependable electrical connection. The integrated support rail incorporates a simple clip-lock mechanism, allowing quick mounting of DIN rail devices, whilst the tool-free snap-on installation adjusts easily to 5 mm and 10 mm busbar thicknesses.
With a 16 A rated current, compact 45 mm width and robust flame-retardant polyamide construction, the RX9360.710 delivers long-term reliability in industrial control panels, machine building applications and low-voltage switchgear installations.
The RX9360.710 enables protective devices and switching equipment to be mounted directly onto RiLineX busbar platforms whilst providing a pre-wired electrical connection. This reduces installation time, improves panel organisation and simplifies maintenance compared with conventional wiring methods.
Its modular design supports efficient machine building and low-voltage switchgear construction, making it a practical choice for OEM manufacturers, panel builders and industrial automation engineers.
| Current | 16 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.710 |
| Alternative SKU | 9360710 |
| Product type | Component adaptor |
| Version | With connection cable |
| Maximum rated current | 16 A |
| Rated voltage | 690 V AC |
| UL rated voltage | 600 V AC / 600 V DC |
| Number of poles | 3 |
| Connection cable | AWG 14 |
| Connection cable length | 150 mm |
| Cable outlet | Top |
| Busbar spacing | 60 mm |
| Compatible busbar sizes | 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm |
| Compatible busbar thickness | 5 mm to 10 mm |
| Support rails | 1 × 10 mm |
| Protection rating | IP2XB |
| Material | Polyamide (PA6) |
| Colour | RAL 9005 |
| Dimensions (H × W × D) | 240 × 45 × 37 mm |
| Operating temperature | -5°C to +55°C |
| Weight | Approx. 1.2 kg |
| HS Code | 85369095 |
It is designed for mounting DIN rail electrical equipment, including motor starters and switching devices, directly onto RiLineX and RiLine60 busbar systems.
Yes. It is supplied with a factory-fitted 150 mm AWG 14 connection cable for quick installation.
The RX9360.710 has a maximum rated current of 16 A.
It is compatible with RiLineX and RiLine60 60 mm busbar systems.
The adaptor supports 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm busbars with thicknesses between 5 mm and 10 mm.
Rittal RiLineX component adaptors are trusted by panel builders, OEM manufacturers and industrial automation engineers for delivering reliable, modular and efficient power distribution solutions.
