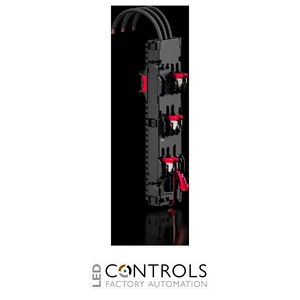

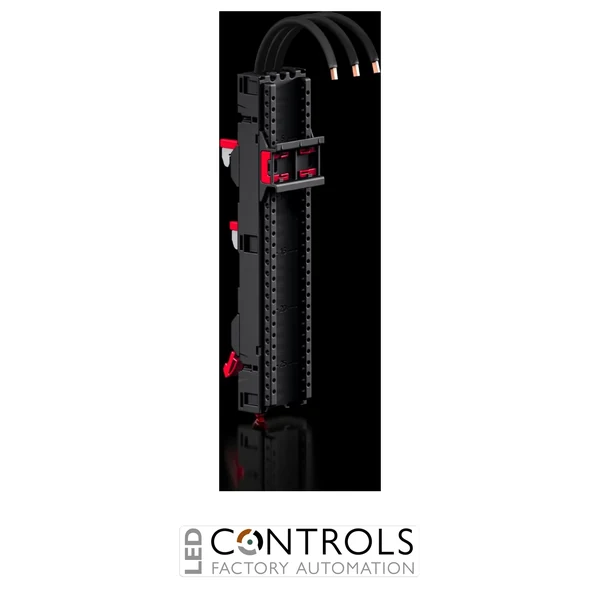

RX9360.720 Rittal RilineX Component adaptor 25A, 3-pole

RX9360.720 Rittal RilineX Component adaptor 25A, 3-pole

Rittal RX9360.720 RiLineX 3-pole component adaptor with pre-assembled AWG 12 connection cables for RiLineX and RiLine60 60 mm busbar systems.

SKU: RX9360.720Alt SKU: 9360720MPN: RX9360.720
Price
List Price £70.19 ex VAT
Your Price (ex VAT)
£70.19
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £70.19
Trade pricing is personalised to your account

Manufacturer Lead Time

£70.19

Why Choose the Rittal RX9360.720 RiLineX Component Adaptor?

The Rittal RX9360.720 is a premium RiLineX component adaptor with pre-assembled connection cables, designed for mounting DIN rail electrical equipment directly onto RiLineX and RiLine60 60 mm busbar systems. It is ideal for motor starters, switching devices and protective equipment, providing a fast, reliable and space-saving installation solution for industrial control panels and power distribution systems.

Supplied with factory-fitted AWG 12 connection cables, the RX9360.720 reduces installation time while ensuring a dependable electrical connection. Its integrated support rail features a simple clip-lock mechanism for rapid mounting of DIN rail devices, whilst the tool-free snap-on installation allows quick adjustment for 5 mm and 10 mm busbar thicknesses.

With a 25 A maximum rated current, compact 45 mm width and durable flame-retardant polyamide construction, the RX9360.720 delivers dependable long-term performance in OEM machinery, industrial automation systems and low-voltage switchgear applications.

Key Advantages

  • Designed for RiLineX and RiLine60 60 mm busbar systems.
  • Supplied with pre-assembled AWG 12 connection cables.
  • Supports DIN rail mounted motor starters and switching equipment.
  • Tool-free snap-on installation reduces assembly time.
  • Adjustable for 5 mm and 10 mm busbar thicknesses.
  • Integrated support rail with secure clip-lock mounting.

Key Features

  • Rittal RiLineX component adaptor.
  • With connection cables.
  • 25 A maximum rated current.
  • 3-pole configuration.
  • 45 mm device width.
  • 160 mm factory-fitted AWG 12 connection cables.
  • Bottom cable outlet.
  • Compatible with RiLineX and RiLine60 platforms.
  • Suitable for 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm busbars.

Efficient Mounting for Industrial Control Equipment

The RX9360.720 allows protective devices and motor starters to be mounted directly onto RiLineX busbar systems whilst providing a factory-wired electrical connection. This simplifies panel construction, reduces installation time and improves the organisation of industrial electrical assemblies.

Its modular design enables fast installation and future expansion, making it an excellent solution for OEM machine builders, switchgear manufacturers and industrial automation engineers.

Typical Applications

  • Industrial control panels.
  • Motor starter installations.
  • Machine building.
  • OEM electrical equipment.
  • Low-voltage switchboards.
  • Industrial automation systems.

Technical Specifications

Tick the specs you need, then view products that match.

Busbar Centre Distance (mm) 60 mm
Product Series Rittal RiLine
Device Type Component adapter
Current 25 A
Phase Three Phase
Poles 3-pole
Manufacturer Rittal
Series RiLineX
Model RX9360.720
Alternative SKU 9360720
Product type Component adaptor
Version With connection cables
Maximum rated current 25 A
Rated voltage 690 V AC
UL rated voltage 600 V AC / 600 V DC
Rated insulation voltage (Ui) 1000 V
Rated impulse withstand voltage (Uimp) 8 kV
Number of poles 3
Connection cables AWG 12
Connection cable length 160 mm
Cable outlet Bottom
Busbar spacing 60 mm
Compatible busbar sizes 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm
Compatible busbar thickness 5 mm to 10 mm
Support rails 1 × 10 mm
Protection rating IP2XB
Material Polyamide (PA6)
Colour RAL 9005
Dimensions (H × W × D) 239.4 × 45 × 36.2 mm
Operating temperature -5°C to +55°C
Weight Approx. 1.36 kg
HS Code 85369095

Frequently Asked Questions

What is the Rittal RX9360.720 used for?

It is designed for mounting DIN rail electrical equipment, including motor starters and switching devices, directly onto RiLineX and RiLine60 busbar systems.

Does the adaptor include connection cables?

Yes. It is supplied with factory-fitted 160 mm AWG 12 connection cables for quick installation.

What is the maximum current rating?

The RX9360.720 has a maximum rated current of 25 A.

Which busbar systems is it compatible with?

It is compatible with RiLineX and RiLine60 60 mm busbar systems.

Which busbar sizes are supported?

The adaptor supports 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm busbars with thicknesses between 5 mm and 10 mm.
