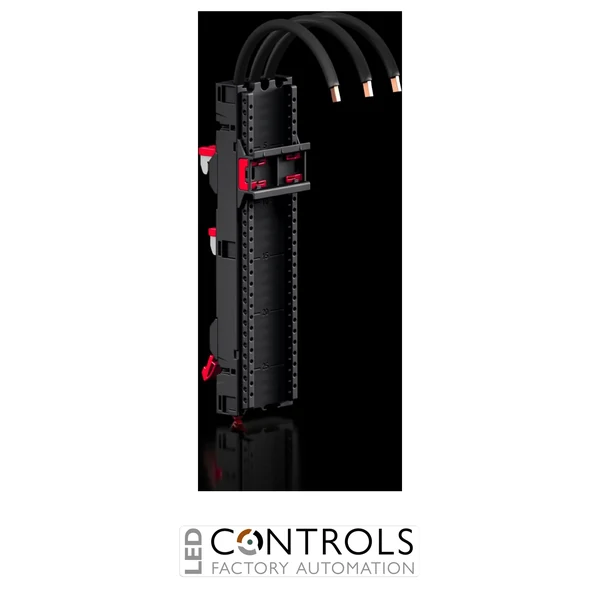

Rittal RX9360.740 RiLineX 3-pole component adaptor with pre-assembled AWG 8 connection cables, 54 mm width and support rail for RiLineX and RiLine60 60 mm busbar systems.
£87.08
The Rittal RX9360.740 is a high-performance RiLineX component adaptor with pre-assembled connection cables, designed for mounting suitable DIN rail equipment directly onto RiLineX and RiLine60 60 mm busbar systems. Its integrated support rail provides a secure platform for motor starters, protective devices and industrial switchgear, helping create compact and professionally organised electrical assemblies.
Supplied with factory-fitted AWG 8 connection cables, the RX9360.740 reduces installation and wiring time while providing a reliable electrical connection. The component adaptor features tool-free snap-on mounting, simple adjustment for 5 mm and 10 mm busbar thicknesses and an integrated clip-lock system for rapid installation of compatible equipment.
With a nominal product rating of 45 A, a maximum conductor current of 50 A and a compact 54 mm width, the RX9360.740 is suitable for demanding industrial control and power distribution applications. Its flame-retardant polyamide construction, IP2XB protection and IEC and UL compliance support dependable operation in professional switchgear installations.
The Rittal RX9360.740 enables protective and switching devices to be installed directly onto a 60 mm busbar platform using its pre-assembled connection cables and adjustable support rail. This reduces conventional wiring requirements, improves panel organisation and helps accelerate the construction of industrial electrical assemblies.
Additional RiLineX accessories, including height-adjustable support rails, fixing aids, expansion blocks and anti-slip guards, allow the adaptor to be configured for different equipment sizes and installation requirements. This modular design makes it suitable for both new switchgear systems and future panel modifications.
| Current | 45 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.740 |
| Alternative SKU | 9360740 |
| Product type | Component adaptor |
| Design | With connection cable |
| Product current rating | 45 A |
| Maximum rated current | 50 A |
| Rated voltage | 690 V AC |
| UL rated voltage | 600 V AC / 600 V DC |
| Rated insulation voltage (Ui) | 1000 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Number of poles | 3 |
| Connection cables | AWG 8 |
| Connection cable length | 130 mm |
| Cable outlet | Bottom |
| Busbar spacing | 60 mm |
| Compatible busbar sizes | 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm |
| Support rails | 1 × 10 mm |
| Protection rating | IP2XB |
| Standards | IEC 61439-1/-2 and UL 508 |
| Material | Polyamide PA6 |
| Fire protection | UL 94 compliant |
| Colour | RAL 9005 |
| Dimensions (H × W × D) | 239.4 × 54 × 36.2 mm |
| Operating temperature | -5°C to +55°C |
| Storage temperature | -25°C to +75°C |
| Net weight | Approx. 1.68 kg |
| EAN | 4028177997004 |
| Approvals | UL and C-UL Listed |
| HS Code | 85369095 |
It is used to mount motor starters, protective devices and other suitable DIN rail equipment directly onto RiLineX and RiLine60 60 mm busbar systems.
Yes. It is supplied with factory-fitted 130 mm AWG 8 connection cables to simplify electrical installation.
The adaptor has a nominal product rating of 45 A and supports a maximum round-conductor current of 50 A.
The RX9360.740 is compatible with Rittal RiLineX and RiLine60 busbar systems with 60 mm centre-to-centre spacing.
It is suitable for 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm busbars.
Rittal RiLineX component adaptors are trusted by panel builders, OEM manufacturers and automation engineers for creating safe, modular and efficient industrial power distribution systems.
