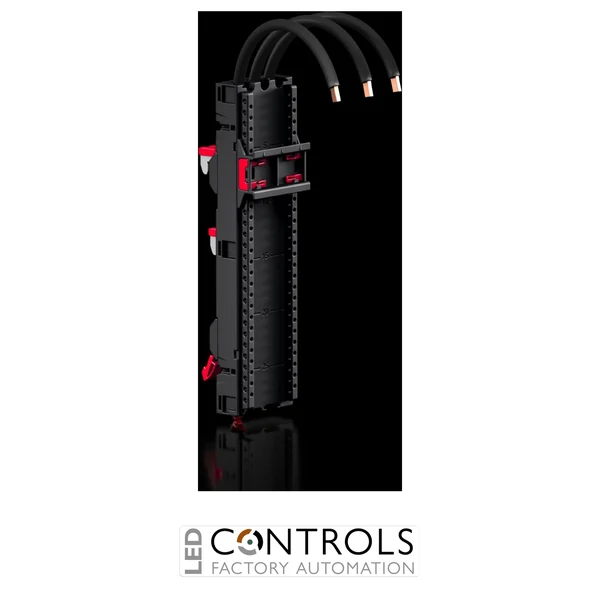

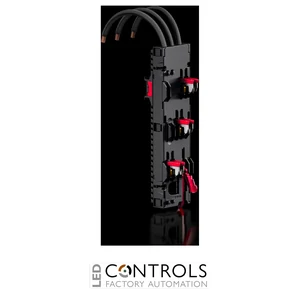

Rittal RX9360.760 RiLineX 3-pole component adaptor with pre-assembled AWG 6 connection cable for RiLineX and RiLine60 60 mm busbar systems.
£93.45
The Rittal RX9360.760 is a premium RiLineX component adaptor with pre-assembled connection cables, designed for mounting DIN rail electrical equipment directly onto RiLineX and RiLine60 60 mm busbar systems. It is ideal for motor starters, switching devices and protective equipment, providing a fast, reliable and space-saving solution for industrial control panels and low-voltage power distribution.
Supplied with factory-fitted AWG 6 connection cables, the RX9360.760 significantly reduces installation time while ensuring a dependable electrical connection. The integrated support rail features a simple clip-lock mechanism for rapid mounting of DIN rail devices, whilst the tool-free snap-on installation allows easy adjustment for 5 mm and 10 mm busbar thicknesses.
With a 65 A maximum rated current, compact 54 mm width and durable flame-retardant polyamide construction, the RX9360.760 is designed for demanding industrial automation, OEM machinery and switchgear applications requiring reliable, modular power distribution.
The RX9360.760 enables protective devices, motor starters and other DIN rail mounted equipment to be installed directly onto RiLineX busbar systems using factory-fitted connection cables. This simplifies panel construction, reduces wiring time and improves the organisation of industrial electrical assemblies.
Its modular design provides flexibility for OEM machine builders, switchgear manufacturers and industrial automation engineers seeking compact, efficient and easily maintainable power distribution systems.
| Current | 65 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.760 |
| Alternative SKU | 9360760 |
| Product type | Component adaptor |
| Version | With connection cable |
| Maximum rated current | 65 A |
| Rated current of round conductor | 65 A |
| Rated voltage | 690 V AC |
| UL rated voltage | 600 V AC / 600 V DC |
| Rated insulation voltage (Ui) | 1000 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Number of poles | 3 |
| Connection cable | AWG 6 |
| Connection cable length | 130 mm |
| Cable outlet | Bottom |
| Busbar spacing | 60 mm |
| Compatible busbar sizes | 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm |
| Compatible busbar thickness | 5 mm to 10 mm |
| Support rails | 1 × 10 mm |
| Protection rating | IP2XB |
| Standards | IEC 61439-1/-2, UL 508 |
| Material | Polyamide (PA6) |
| Colour | RAL 9005 |
| Dimensions (H × W × D) | 239.4 × 54 × 36.2 mm |
| Operating temperature | -5°C to +55°C |
| Storage temperature | -25°C to +75°C |
| Weight | Approx. 1.84 kg |
| HS Code | 85369095 |
It is designed for mounting DIN rail electrical equipment, including motor starters and switching devices, directly onto RiLineX and RiLine60 busbar systems.
Yes. It is supplied with factory-fitted 130 mm AWG 6 connection cables for rapid installation.
The RX9360.760 has a maximum rated current of 65 A.
It is compatible with RiLineX and RiLine60 60 mm busbar systems.
The adaptor supports 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm busbars with thicknesses between 5 mm and 10 mm.
Rittal RiLineX component adaptors are trusted by panel builders, OEM manufacturers and industrial automation engineers for delivering reliable, modular and efficient industrial power distribution solutions.
