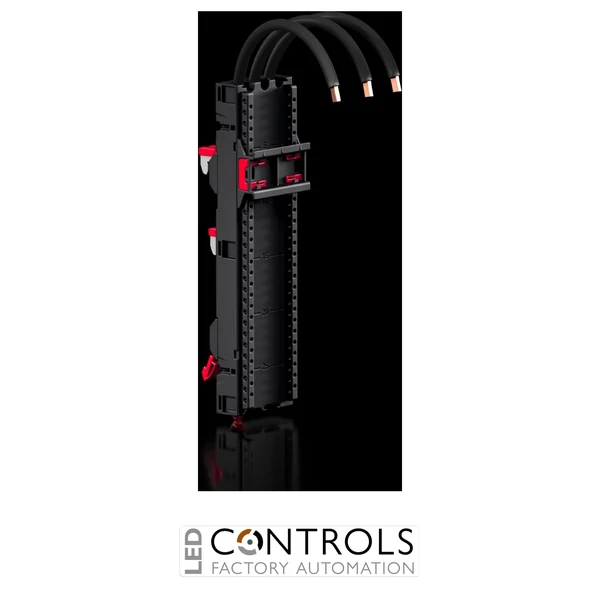

Rittal RX9360.780 RiLineX 3-pole component adaptor with pre-assembled AWG 4 connection cables for RiLineX and RiLine60 60 mm busbar systems.
£112.41
The Rittal RX9360.780 is a heavy-duty RiLineX component adaptor with pre-assembled connection cables, designed for mounting DIN rail electrical equipment directly onto RiLineX and RiLine60 60 mm busbar systems. It provides a secure, space-saving solution for motor starters, protective devices and industrial switching equipment, helping to simplify the construction of professional low-voltage switchgear and control panels.
Supplied with factory-fitted AWG 4 connection cables, the RX9360.780 significantly reduces wiring time whilst ensuring a dependable electrical connection. The integrated support rail incorporates a simple clip-lock mechanism for rapid installation, while the adaptor snaps directly onto 60 mm busbar systems with tool-free adjustment for both 5 mm and 10 mm busbar thicknesses.
Rated for up to 80 A, the RX9360.780 combines high current capacity with a compact 54 mm width, making it an excellent choice for demanding industrial automation, machine building and OEM switchgear applications requiring safe, modular and efficient power distribution.
The RX9360.780 enables industrial switching devices and motor starters to be mounted directly onto 60 mm busbar systems using factory-installed connection cables. This reduces conventional panel wiring, shortens installation time and creates cleaner, more maintainable electrical assemblies.
Its modular RiLineX design also supports future expansion using compatible mounting accessories, making it an ideal solution for OEM machine builders, industrial panel manufacturers and electrical contractors requiring flexible power distribution systems.
| Current | 80 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.780 |
| Alternative SKU | 9360780 |
| Product type | Component adaptor |
| Version | With connection cable |
| Maximum rated current | 80 A |
| Rated current of round conductor | 80 A |
| Rated voltage | 690 V AC |
| UL rated voltage | 600 V AC / 600 V DC |
| Rated insulation voltage (Ui) | 1000 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Number of poles | 3 |
| Connection cable | AWG 4 |
| Connection cable length | 130 mm |
| Cable outlet | Bottom |
| Busbar spacing | 60 mm |
| Compatible busbar sizes | 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm |
| Compatible busbar thickness | 5 mm to 10 mm |
| Support rails | 1 × 10 mm |
| Protection rating | IP2XB |
| Material | Polyamide (PA6) |
| Fire behaviour | UL 94 |
| Colour | RAL 9005 |
| Dimensions (H × W × D) | 239.4 × 54 × 36.2 mm |
| Operating temperature | -5°C to +55°C |
| Storage temperature | -25°C to +75°C |
| Net weight | Approx. 2.12 kg |
| EAN | 4028177996984 |
| Approvals | UL and C-UL Listed |
| HS Code | 85369095 |
It is designed for mounting DIN rail equipment such as motor starters and switching devices directly onto RiLineX and RiLine60 60 mm busbar systems.
Yes. It includes factory-fitted 130 mm AWG 4 connection cables for rapid installation.
The RX9360.780 has a maximum rated current of 80 A.
It is compatible with both RiLineX and RiLine60 60 mm busbar systems.
The adaptor is suitable for 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm copper busbars.
Rittal RiLineX component adaptors are trusted by switchgear manufacturers, OEMs and industrial automation engineers for delivering safe, efficient and modular power distribution solutions.
