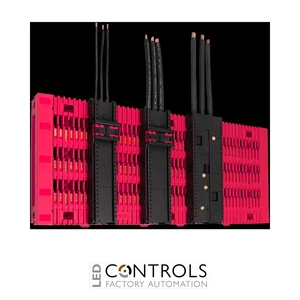

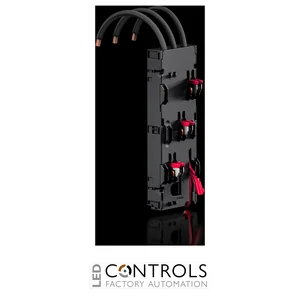

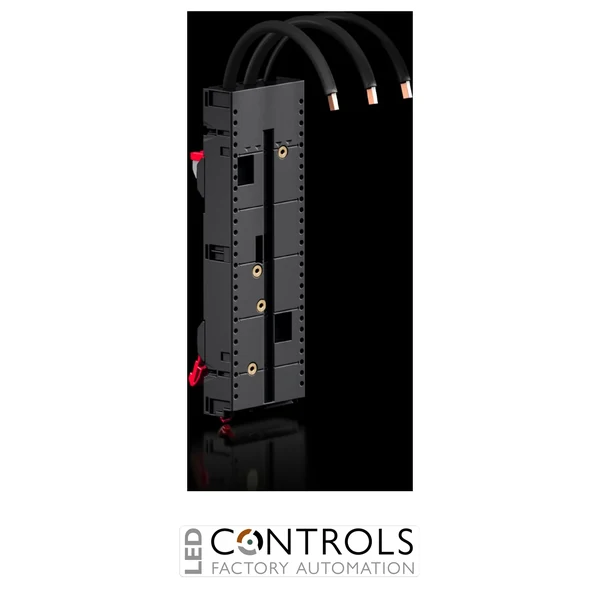

Rittal RX9360.790 RiLineX 3-pole 100 A component adaptor with AWG 2 connection cables and integral threaded inserts for RiLineX and RiLine60 busbar systems.
£37.56
The Rittal RX9360.790 is a heavy-duty RiLineX component adaptor with pre-assembled connection cables and integral threaded inserts, designed for mounting standard circuit-breakers, motor starters and DIN rail equipment directly onto RiLineX and RiLine60 60 mm busbar systems. Its integrated threaded inserts allow direct mounting of compatible devices, reducing installation time whilst creating a secure and professional switchgear assembly.
Factory-fitted AWG 2 connection cables minimise wiring work, while the tool-free snap-on design allows quick installation onto 60 mm busbar systems with simple adjustment for both 5 mm and 10 mm busbar thicknesses. The adaptor also features a simple clip-lock mechanism for support rails and supports optional anti-slip accessories for enhanced installation security.
Rated for up to 100 A with a compact 72 mm width, the RX9360.790 is engineered for demanding industrial control panels, motor control centres and OEM machinery where reliable high-current distribution and modular expansion are essential.
The RX9360.790 has been specifically designed with integral threaded inserts for mounting compatible circuit-breakers such as ABB MS495/MS496/MS497, Schneider Electric GV3 and Siemens Sirius S3 devices directly onto RiLineX busbar systems. Additional support rails may also be used for mounting other compatible switchgear, providing exceptional installation flexibility.
Its modular construction, pre-installed connection cables and integrated mounting features reduce assembly time while creating organised, reliable electrical installations suitable for demanding industrial environments.
| Current | 100 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9360.790 |
| Alternative SKU | 9360790 |
| Product type | Component adaptor |
| Version | With connection cable |
| Maximum rated current | 100 A |
| Rated current of round conductor | 100 A |
| Rated voltage | 690 V AC |
| UL rated voltage | 600 V AC / 600 V DC |
| Rated insulation voltage (Ui) | 1000 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Number of poles | 3 |
| Connection cable | AWG 2 |
| Cable outlet | Bottom |
| Busbar spacing | 60 mm |
| Compatible busbar sizes | 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm |
| Compatible busbar systems | RiLineX and RiLine60 |
| Protection rating | IP2XB |
| Material | Polyamide (PA6) |
| Fire behaviour | UL 94 compliant |
| Colour | RAL 9005 |
| Dimensions (H × W × D) | 239.4 × 72 × 36.6 mm |
| Operating temperature | -5°C to +55°C |
| Storage temperature | -25°C to +75°C |
| Maximum humidity | 90% non-condensing |
| Standards | IEC 61439-1/-2, UL 508 |
| Approvals | UL and C-UL Listed |
| EAN | 4028177996946 |
| Net weight | 0.77 kg |
| HS Code | 85369095 |
It is designed for mounting compatible circuit-breakers, motor starters and other switchgear directly onto RiLineX and RiLine60 60 mm busbar systems.
Yes. It is supplied with factory-fitted AWG 2 connection cables for rapid installation.
The RX9360.790 is rated for a maximum current of 100 A.
The integral threaded inserts are suitable for ABB MS495/MS496/MS497, Schneider Electric GV3 and Siemens Sirius S3 devices, with additional options available using compatible support rails.
It is compatible with both RiLineX and RiLine60 60 mm busbar systems.
Rittal RiLineX component adaptors are trusted by switchgear manufacturers, OEMs and industrial automation engineers for delivering safe, modular and efficient high-current power distribution solutions.
