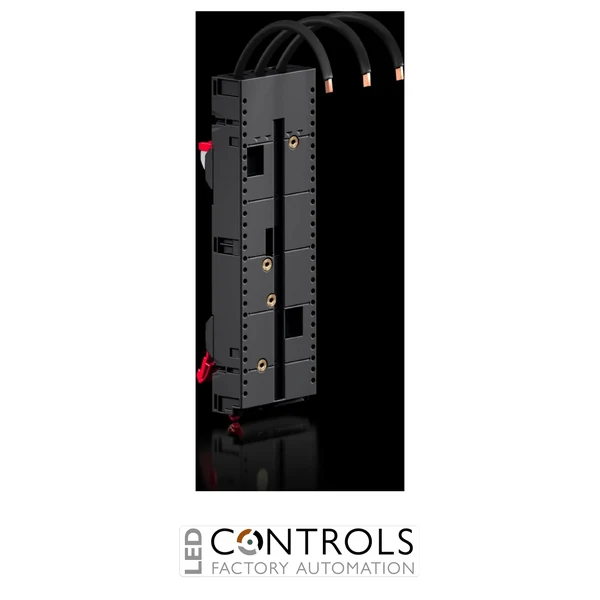

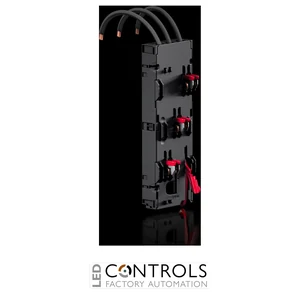

RX9360.798 Rittal RilineX Component adaptor 80A 3-pole

RX9360.798 Rittal RilineX Component adaptor 80A 3-pole

Rittal RX9360.798 RiLineX 80 A, 3-pole component adaptor with AWG 4 connection cables, 72 mm width and integral threaded inserts for RiLineX, RiLine60 and compatible 60 mm busbar systems.

SKU: RX9360.798Alt SKU: 9360798MPN: RX9360.798
Price
List Price £34.40 ex VAT
Your Price (ex VAT)
£34.40
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £34.40
Trade pricing is personalised to your account

Manufacturer Lead Time

£34.40

Why Choose the Rittal RX9360.798 RiLineX Component Adaptor?

The Rittal RX9360.798 is a heavy-duty RiLineX component adaptor with pre-assembled connection cables and integral threaded inserts. Designed for use with RiLineX, RiLine60 and compatible 60 mm busbar systems, it provides a secure mounting platform for circuit-breakers, motor starters and other industrial switching equipment.

The adaptor is supplied with factory-fitted AWG 4 connection cables, helping reduce manual wiring and accelerate switchgear assembly. Its tool-free mounting system permits straightforward installation onto compatible busbars, with simple adjustment for 5 mm and 10 mm busbar thicknesses.

Rated for up to 80 A, the RX9360.798 combines dependable current-carrying performance with a practical 72 mm width. Integral threaded inserts support the direct mounting of compatible circuit-breakers, making the adaptor especially suitable for industrial control panels, motor control centres and modular low-voltage power distribution systems.

Key Advantages

  • Designed for RiLineX, RiLine60 and compatible 60 mm busbar systems.
  • Factory-fitted AWG 4 connection cables minimise installation work.
  • Integral threaded inserts support compatible circuit-breaker mounting.
  • Tool-free snap-on installation helps shorten panel assembly times.
  • Suitable for 5 mm and 10 mm busbar thicknesses.
  • Modular design supports additional rails and mounting accessories.

Key Features

  • Rittal RiLineX component adaptor.
  • 80 A maximum rated current.
  • 3-pole configuration.
  • 72 mm adaptor width.
  • Factory-fitted AWG 4 connection cables.
  • Bottom cable outlet.
  • Integral threaded inserts for compatible equipment.
  • Compatible with RiLineX and RiLine60 busbar platforms.
  • IP2XB finger-safe protection.
  • Flame-retardant polyamide construction.

Designed for Flexible Circuit-Breaker Mounting

The RX9360.798 features integral threaded inserts that provide secure fixing points for compatible circuit-breakers and switching equipment. This arrangement reduces the requirement for separate mounting hardware and helps create a compact, stable and serviceable switchgear assembly.

Compatible support rails, height-adjustable rails, attachment aids and expansion accessories allow the adaptor to be configured around different device dimensions and panel layouts. This makes it suitable for new switchgear projects as well as modular extensions to existing RiLineX installations.

Typical Applications

  • Industrial control panels.
  • Motor control centres.
  • Circuit-breaker installations.
  • Machine building and OEM equipment.
  • Low-voltage switchboards.
  • Industrial automation systems.
  • Modular power distribution assemblies.

Technical Specifications

Tick the specs you need, then view products that match.

Busbar Centre Distance (mm) 60 mm
Product Series Rittal RiLine
Device Type Component adapter
Current 80 A
Phase Three Phase
Poles 3-pole
Manufacturer Rittal
Series RiLineX
Model RX9360.798
Article number 9360798
Product type Component adaptor
Design With connection cables and integral threaded inserts
Maximum rated current 80 A
Rated current of round conductor 80 A
UL rated conductor current 80 A
Rated voltage 690 V AC
UL rated voltage 600 V AC / 600 V DC
Rated insulation voltage (Ui) 1,000 V
Rated impulse withstand voltage (Uimp) 8 kV
Number of poles 3
Connection cables AWG 4
Cable outlet Bottom
Busbar spacing 60 mm
Compatible busbar systems RiLineX and RiLine60
Compatible busbar sizes 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm
Pollution degree 3
Protection rating IP2XB
Standards IEC 61439-1/-2 and UL 508
Material Polyamide PA6
Fire behaviour UL 94 compliant
Colour RAL 9005
Dimensions (H × W × D) 239.4 × 72 × 36.6 mm
Operating temperature -5°C to +55°C
Storage temperature -25°C to +75°C
Maximum operating humidity 90%
Ambient humidity 10% to 90%, non-condensing
Net weight 0.7 kg
Gross weight 0.702 kg
Copper content 0.246 kg per unit
Customs tariff number 85369095
ETIM classification EC001531
Pack quantity 1
Approvals UL and C-UL Listed
HS Code 85369095

Frequently Asked Questions

What is the Rittal RX9360.798 used for?

It is designed for mounting compatible circuit-breakers, motor starters and other switching equipment directly onto RiLineX, RiLine60 and compatible 60 mm busbar systems.

Does the RX9360.798 include connection cables?

Yes. It is supplied with factory-fitted AWG 4 connection cables to reduce wiring and installation time.

What is the maximum current rating?

The Rittal RX9360.798 has a maximum rated current of 80 A.

Does the adaptor include threaded mounting points?

Yes. Integral threaded inserts are provided for mounting compatible circuit-breakers and other suitable equipment.

Which busbar systems are compatible?

The adaptor is suitable for RiLineX, RiLine60 and other compatible busbar systems with 60 mm centre-to-centre spacing.

Which busbar dimensions are supported?

It is suitable for 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm busbars.

Trusted by Electrical Professionals Worldwide

Rittal RiLineX component adaptors provide panel builders, machine manufacturers and automation engineers with a modular and efficient method of mounting industrial switching equipment onto 60 mm busbar systems.
