RX9360.802 Rittal RilineX Bus-mounting fuse base 63A, 3-pole

RX9360.802 Rittal RilineX Bus-mounting fuse base 63A, 3-pole

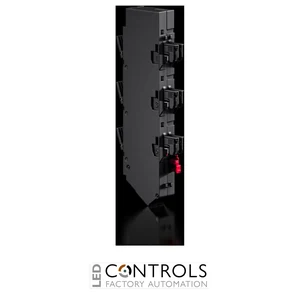

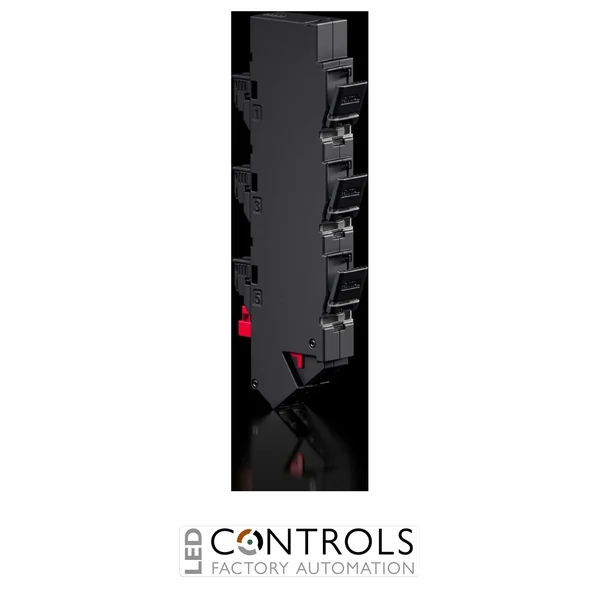

Rittal RX9360.802 RiLineX 63 A 3-pole bus-mounting fuse base with LED fuse monitoring for D01 and D02 fuse links.

SKU: RX9360.802Alt SKU: 9360802MPN: RX9360.802
Price
List Price £116.96 ex VAT
Your Price (ex VAT)
£116.96
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £116.96
Trade pricing is personalised to your account

Manufacturer Lead Time

£116.96

Why Choose the Rittal RX9360.802 RiLineX Bus-Mounting Fuse Base?

The Rittal RX9360.802 is a high-quality RiLineX bus-mounting fuse base for RiLineX and RiLine60 60 mm busbar systems. Designed for D01 (with gauge ring) and D02 (E18) slow-blow fuse links, it provides reliable circuit protection whilst enabling fast, modular installation in industrial power distribution systems. Its innovative design replaces traditional screw caps with secure swing-out fuse holders for safer handling and improved maintenance.

Featuring integrated optical LED fuse monitoring, the RX9360.802 allows maintenance personnel to quickly identify blown fuse links, reducing troubleshooting time and minimising equipment downtime. A maintenance-free 45° spring terminal connection accepts conductors up to 16 mm² (AWG 6), while the tool-free snap-on design and semi-automatic adjustment accommodate both 5 mm and 10 mm busbar thicknesses.

With a 63 A rated current, 400 V AC operating voltage and complete IP2XB touch protection, the RX9360.802 offers a dependable solution for industrial control panels, switchboards and OEM machinery requiring safe, modular fuse protection.

Key Advantages

  • Designed for RiLineX and RiLine60 60 mm busbar systems.
  • Suitable for D01 and D02 (E18) fuse links.
  • Integrated LED fuse monitoring enables rapid fault identification.
  • Maintenance-free spring clamp terminals up to 16 mm².
  • Tool-free snap-on installation with automatic busbar adjustment.
  • Complete IP2XB finger-safe protection without additional accessories.

Key Features

  • RiLineX bus-mounting fuse base.
  • 63 A maximum rated current.
  • 3-pole configuration.
  • Compatible with D01 (with gauge ring) and D02 (E18) fuse inserts.
  • Optical LED fuse status indication.
  • 45° spring terminal connection.
  • Tool-free installation.
  • Bottom cable outlet.
  • Suitable for RiLineX and RiLine60 busbar systems.

Reliable Industrial Fuse Protection

Unlike conventional fuse holders that rely on screw caps, the RX9360.802 utilises lockable swing-out fuse holders to provide secure fuse contact, improved operator safety and faster fuse replacement. Integrated LED indication provides immediate visual confirmation of a blown fuse, reducing diagnostic time during maintenance.

The spring-clamp terminals require no retightening during service and permit quick conductor installation at a convenient 45° angle, making the fuse base particularly suitable for modern industrial switchgear and automation panels.

Typical Applications

  • Industrial control panels.
  • Low-voltage switchboards.
  • Machine building.
  • OEM electrical equipment.
  • Industrial automation systems.
  • Motor control centres.
  • Power distribution assemblies.

Technical Specifications

Tick the specs you need, then view products that match.

Conductor Size 1.5–16 mm²
Device Type Base / mounting component
Busbar Centre Distance (mm) 60 mm
Rail / Busbar Profile 15 × 10 mm, 15 × 5 mm, 20 × 10 mm, 20 × 5 mm, 30 × 10 mm, 30 × 5 mm
Product Series Rittal RiLine
Current 63 A
Phase Three Phase
Poles 3-pole
Manufacturer Rittal
Series RiLineX
Model RX9360.802
Alternative SKU 9360802
Product type Bus-mounting fuse base
Rated current 63 A
Rated voltage 400 V AC
Rated insulation voltage (Ui) 1000 V
Utilisation category AC-21B (400 V / 100 A)
Number of poles 3
Fuse type D01 (with gauge ring), D02 (E18)
Fuse monitoring Optical LED
Connection technology Maintenance-free spring terminal
Conductor size 1.5–16 mm² (AWG 16–AWG 6)
Busbar spacing 60 mm
Compatible busbars 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm
Busbar thickness 5 mm and 10 mm
Cable outlet Bottom
Protection rating IP2XB
Material Polyamide (PA6)
Fire protection UL 94 V-0
Colour RAL 9005
Dimensions (W × H × D) 27 × 263 × 123.5 mm
Operating temperature -5°C to +55°C
Storage temperature -25°C to +75°C
Maximum humidity 90% non-condensing
Power dissipation 5.5 W
Standards IEC/DIN EN 60947-3
Pack quantity 4 fuse bases with 12 D01 reducers
HS Code 85369095

Frequently Asked Questions

What fuse types are compatible with the RX9360.802?

The fuse base accepts D01 fuse links (with gauge ring) and D02 (E18) slow-blow fuse inserts.

Does the fuse base provide blown fuse indication?

Yes. Integrated optical LED fuse monitoring provides immediate visual indication when a fuse has operated.

What is the rated current?

The RX9360.802 has a maximum rated current of 63 A.

Which busbar systems is it compatible with?

It is designed for RiLineX and RiLine60 60 mm busbar systems.

What conductor sizes can be connected?

The maintenance-free spring terminals accept conductors from 1.5 mm² to 16 mm² (AWG 16 to AWG 6).
