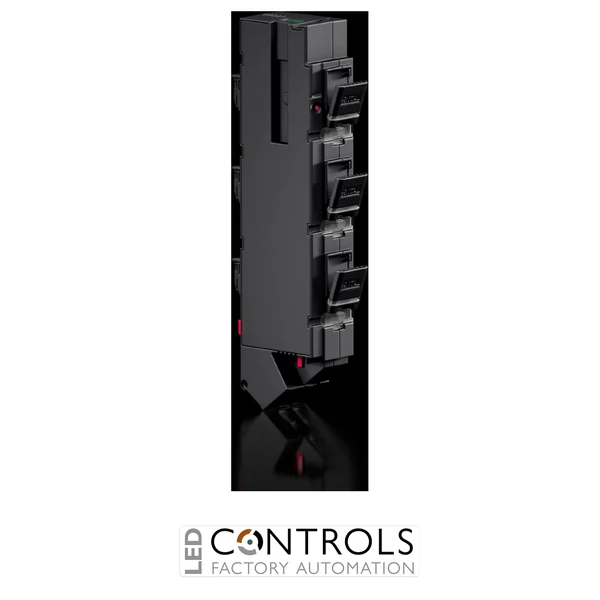

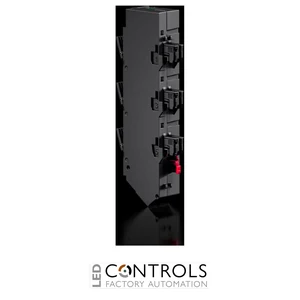

RX9360.805 Rittal RilineX Bus-mounting fuse base 63A, 3-pole

RX9360.805 Rittal RilineX Bus-mounting fuse base 63A, 3-pole

Rittal RX9360.805 RiLineX 63 A 3-pole bus-mounting fuse base with electronic and optical LED fuse monitoring, alarm contacts and support for D01 and D02 fuse links.

SKU: RX9360.805Alt SKU: 9360805MPN: RX9360.805
Price
List Price £379.30 ex VAT
Your Price (ex VAT)
£379.30
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £379.30
Trade pricing is personalised to your account

Manufacturer Lead Time

£379.30

Why Choose the Rittal RX9360.805 RiLineX Bus-Mounting Fuse Base?

The Rittal RX9360.805 is a premium RiLineX bus-mounting fuse base designed for RiLineX and RiLine60 60 mm busbar systems. Suitable for D01 (with gauge ring) and D02 (E18) slow-blow fuse links, it incorporates both electronic and optical LED fuse monitoring with alarm contacts, providing rapid fault indication and reliable protection for industrial power distribution systems.

Unlike conventional fuse holders that rely on screw caps, the RX9360.805 features secure, lockable fuse carriers that remain open during maintenance and can be sealed when closed for added safety. The maintenance-free 45° spring-clamp terminals accept conductors up to 16 mm² (AWG 6), while tool-free snap-on installation and semi-automatic rail adjustment simplify mounting onto both 5 mm and 10 mm busbars.

With a 63 A rated current, 1,000 V rated insulation voltage, 3-pole configuration and complete IP2XB finger-safe protection, the RX9360.805 is an excellent solution for industrial control panels, motor control centres and OEM switchgear requiring advanced fuse monitoring and dependable overcurrent protection.

Key Advantages

  • Designed for RiLineX and RiLine60 60 mm busbar systems.
  • Suitable for D01 (with gauge ring) and D02 (E18) fuse links.
  • Electronic and optical LED fuse monitoring with alarm contacts.
  • Secure lockable fuse carriers replace traditional screw caps.
  • Maintenance-free spring-clamp terminals up to 16 mm².
  • Tool-free snap-on installation with automatic busbar adjustment.
  • Complete IP2XB touch protection without additional accessories.

Key Features

  • RiLineX bus-mounting fuse base.
  • 63 A rated current.
  • 3-pole configuration.
  • Compatible with D01 and D02 (E18) fuse inserts.
  • Electronic and optical LED fuse monitoring.
  • Alarm contact output.
  • Voltage test opening.
  • 45° maintenance-free spring terminals.
  • Bottom cable outlet.
  • Tool-free installation.

Advanced Fuse Monitoring for Critical Applications

The RX9360.805 provides both electronic and visual fuse monitoring, allowing remote signalling via alarm contacts alongside local LED indication. This combination enables maintenance personnel to identify blown fuse links quickly, reducing downtime and simplifying preventative maintenance in critical industrial systems.

Its lockable fuse holders improve operator safety during servicing, whilst maintenance-free spring terminals eliminate the need for periodic retightening, helping ensure long-term electrical reliability in demanding industrial environments.

Typical Applications

  • Industrial control panels.
  • Low-voltage switchboards.
  • Motor control centres.
  • Machine building.
  • OEM electrical equipment.
  • Industrial automation systems.
  • Power distribution assemblies.

Technical Specifications

Tick the specs you need, then view products that match.

Conductor Size 1.5–16 mm²
Device Type Base / mounting component
Busbar Centre Distance (mm) 60 mm
Rail / Busbar Profile 15 × 10 mm, 15 × 5 mm, 20 × 10 mm, 20 × 5 mm, 30 × 10 mm, 30 × 5 mm
Product Series Rittal RiLine
Current 63 A
Phase Three Phase
Poles 3-pole
Manufacturer Rittal
Series RiLineX
Model RX9360.805
Alternative SKU 9360805
Product type Bus-mounting fuse base
Rated current 63 A
Rated operational voltage 400 V AC
Rated insulation voltage (Ui) 1000 V
Number of poles 3
Fuse type D01 (with gauge ring) and D02 (E18)
Fuse monitoring Electronic and optical LED with alarm contacts
Voltage test opening Yes
Connection technology Maintenance-free spring clamp
Conductor size 1.5–16 mm² (AWG 16–AWG 6)
Busbar spacing 60 mm
Compatible busbars 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm
Busbar thickness 5 mm and 10 mm
Protection rating IP2XB
Material Polyamide (PA6)
Fire protection UL 94 V-0
Colour RAL 9005
Width 36 mm
Dimensions (H × D) 263 × 123.5 mm
Operating temperature -5°C to +55°C
Storage temperature -25°C to +75°C
Maximum humidity 90% non-condensing
Standards IEC/DIN EN 60947-3
Approvals UL and C-UL Listed
Pack quantity 4 fuse bases with 12 D01 reducers
HS Code 85369095

Frequently Asked Questions

Which fuse types are compatible with the RX9360.805?

The fuse base accepts D01 fuse links (with gauge ring) and D02 (E18) slow-blow fuse inserts.

Does the RX9360.805 provide remote fuse monitoring?

Yes. It features electronic and optical LED fuse monitoring with integrated alarm contacts for remote fault signalling.

What is the rated current?

The RX9360.805 has a rated current of 63 A.

Which busbar systems is it compatible with?

It is designed for RiLineX and RiLine60 60 mm busbar systems.

What conductor sizes can be connected?

The maintenance-free spring-clamp terminals accept conductors from 1.5 mm² to 16 mm² (AWG 16 to AWG 6).
