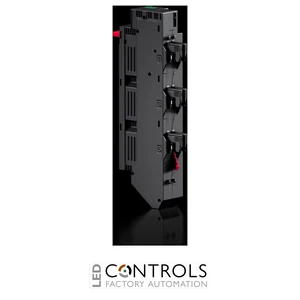

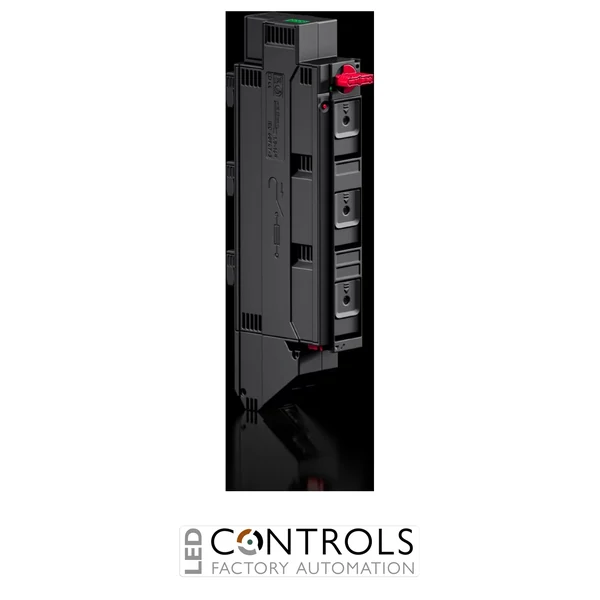

RX9360.824 Rittal RilineX Fuse-switch disconnector 63A, 3-pole

RX9360.824 Rittal RilineX Fuse-switch disconnector 63A, 3-pole

Rittal RX9360.824 RiLineX 63 A 3-pole fuse-switch disconnector with electronic and LED fuse monitoring for D01, D02 and 10 x 38 mm fuse links.

SKU: RX9360.824Alt SKU: 9360824MPN: RX9360.824
Price
List Price £456.89 ex VAT
Your Price (ex VAT)
£456.89
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £456.89
Trade pricing is personalised to your account

Manufacturer Lead Time

£456.89

Why Choose the Rittal RX9360.824 RiLineX Fuse-Switch Disconnector?

The Rittal RX9360.824 is a premium RiLineX fuse-switch disconnector (D-Switch) designed for RiLineX and RiLine60 60 mm busbar systems. Suitable for D01 (with gauge ring), D02 slow-blow fuse links and 10 × 38 mm cylindrical fuses using the supplied retaining springs, it provides dependable circuit protection, integrated load isolation and advanced fuse monitoring for industrial power distribution systems.

Featuring integrated optical LED fuse monitoring together with electronic fuse monitoring and alarm contacts, the RX9360.824 enables rapid identification of blown fuses both locally and remotely. The switch can be locked in both the ON and OFF positions for enhanced operator safety, while maintenance-free 45° spring terminals accept conductors up to 16 mm² (AWG 6). Tool-free snap-on mounting and semi-automatic adjustment allow installation onto both 5 mm and 10 mm busbars.

Rated at 63 A with a 400 V AC operating voltage and complete IP2XB finger-safe protection, the RX9360.824 is ideal for industrial control panels, machine building, motor control centres and OEM switchgear requiring reliable switching, fuse protection and remote fault indication.

Key Advantages

  • Designed for RiLineX and RiLine60 60 mm busbar systems.
  • Compatible with D01, D02 and 10 × 38 mm cylindrical fuse links.
  • Integrated electronic and optical LED fuse monitoring.
  • Alarm contacts enable remote fault signalling.
  • Lockable load-break switch in both ON and OFF positions.
  • Maintenance-free spring terminals up to 16 mm².
  • Tool-free snap-on mounting with automatic busbar adjustment.

Key Features

  • RiLineX fuse-switch disconnector (D-Switch).
  • 63 A rated current.
  • 3-pole configuration.
  • Supports D01, D02 and 10 × 38 mm fuse inserts.
  • Electronic and optical LED fuse monitoring.
  • Remote alarm contact output.
  • Lockable switch mechanism.
  • Voltage test opening.
  • 45° maintenance-free spring terminal connection.
  • Bottom cable outlet.

Safe Switching with Intelligent Fuse Monitoring

The RX9360.824 combines load-break switching, fuse protection and advanced monitoring in a single compact device. Integrated LED indication and electronic alarm contacts enable immediate identification of blown fuse links, while the lockable switching mechanism improves operator safety during maintenance and servicing.

Designed for modern industrial control panels, the maintenance-free spring terminals eliminate routine tightening requirements, while the tool-free mounting system significantly reduces installation time and supports modular panel construction.

Typical Applications

  • Industrial control panels.
  • Low-voltage switchboards.
  • Motor control centres.
  • Machine building.
  • OEM electrical equipment.
  • Industrial automation systems.
  • Power distribution assemblies.

Technical Specifications

Tick the specs you need, then view products that match.

Conductor Size 1.5–16 mm²
Product Series Rittal RiLine
Device Type Terminal / feed-in
Busbar Centre Distance (mm) 60 mm
Rail / Busbar Profile 15 × 10 mm, 15 × 5 mm, 20 × 10 mm, 20 × 5 mm, 30 × 10 mm, 30 × 5 mm
Current 63 A
Phase Three Phase
Poles 3-pole
Manufacturer Rittal
Series RiLineX
Model RX9360.824
Alternative SKU 9360824
Product type Fuse-switch disconnector (D-Switch)
Design With electronic fuse monitoring
Rated current 63 A
Rated operating voltage 400 V AC
Rated insulation voltage (Ui) 800 V
Utilisation category AC-22B (400 V / 100 A)
Number of poles 3
Fuse compatibility D01 (with reducer), D02 and 10 × 38 mm cylindrical fuses
Fuse monitoring Electronic and optical LED with alarm contacts
Electrical connection Spring terminal
Conductor size 1.5–16 mm² (AWG 16–AWG 6)
Busbar spacing 60 mm
Compatible busbars 15 × 5/10 mm, 20 × 5/10 mm and 30 × 5/10 mm
Busbar thickness 5 mm and 10 mm
Cable outlet Bottom
Protection rating IP2XB
Material Polyamide (PA 6)
Fire behaviour UL 94
Colour RAL 9005
Dimensions (W × H × D) 35.8 × 263 × 104.2 mm
Operating temperature -5°C to +55°C
Storage temperature -25°C to +75°C
Maximum humidity 90% non-condensing
Power dissipation 5.5 W
Standards IEC/DIN EN 60947-3
Pack quantity 4 fuse-switch disconnectors with 12 D01 reducers
HS Code 85365019

Frequently Asked Questions

Which fuse types are compatible with the RX9360.824?

The device supports D01 (with gauge ring), D02 slow-blow fuse links and 10 × 38 mm cylindrical fuses using the supplied retaining springs.

Does it provide remote fuse monitoring?

Yes. The RX9360.824 includes integrated electronic fuse monitoring with alarm contacts together with optical LED indication.

Can the switch be locked?

Yes. The integrated load-break switch can be locked securely in both the ON and OFF positions.

What is the rated current?

The fuse-switch disconnector has a maximum rated current of 63 A.

Which busbar systems is it compatible with?

It is designed for both RiLineX and RiLine60 60 mm busbar systems.

Trusted by Electrical Professionals Worldwide

Rittal RiLineX fuse-switch disconnectors are trusted by panel builders, OEMs and industrial automation engineers for delivering safe isolation, reliable overcurrent protection and intelligent fuse monitoring within modular 60 mm busbar systems.
