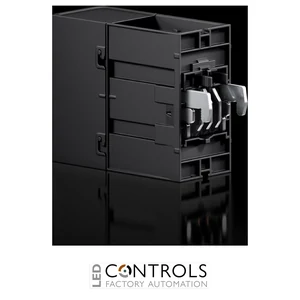

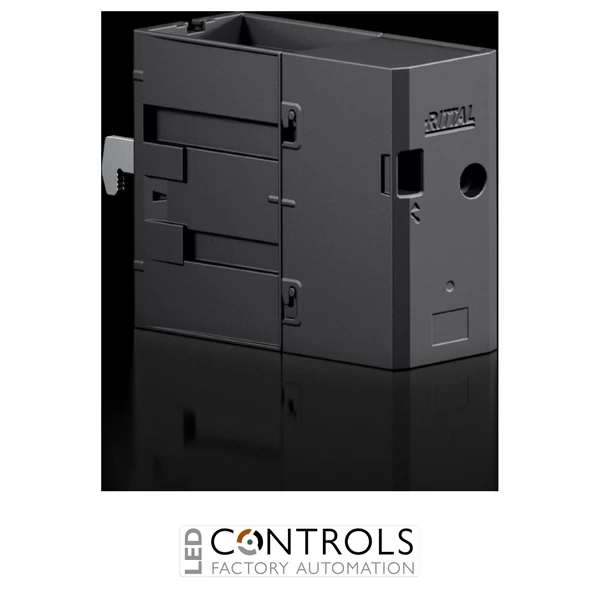

Rittal RX9361.315 single-pole RiLineX connection adaptor for round and sector-shaped conductors up to 300 mm² with a maximum IEC current rating of 1060 A.
£101.37
The Rittal RX9361.315 is a high-performance single-pole RiLineX connection adaptor designed for connecting large round and sector-shaped conductors directly to RiLineX and RiLine60 60 mm busbar systems. Designed for double conductor connections with freely selectable phase spacing, it provides a compact, reliable and modular solution for high-current power distribution applications.
The adaptor accommodates conductor sizes up to 300 mm² and supports a maximum IEC rated current of 1,060 A. Its two connection points allow full through-wiring, whilst conductors may be routed from either the top or bottom to simplify installation within switchboards and control panels.
Mounted by simply snapping onto the RiLineX platform, the adaptor secures both the conductor and busbar using a single fixing screw. Tool-assisted removal, high short-circuit withstand capability and integrated contact hazard protection make the RX9361.315 ideal for demanding industrial power distribution systems.
The RX9361.315 provides a compact solution for connecting large round or sector-shaped conductors directly to RiLineX busbar systems. Two connection terminals allow incoming and outgoing conductors to be connected within the same adaptor, simplifying high-current distribution whilst reducing the need for additional terminal blocks.
Because each adaptor is single-pole, installers can freely position L1, L2, L3 and neutral connections to suit individual panel layouts, making the adaptor ideal for custom switchgear, OEM machinery and industrial power distribution systems.
| Phase | Single Phase |
|---|---|
| Manufacturer | Rittal |
| Series | RiLineX |
| Model | RX9361.315 |
| Article number | 9361315 |
| Product type | Connection adaptor |
| Configuration | Double connection for round and sector-shaped conductors |
| Number of poles | 1 |
| Rated current (reference IEC) | 864 A |
| Maximum rated current (IEC) | 1,060 A |
| Maximum rated current (UL) | 980 A |
| Rated voltage | 1,000 V AC / 1,500 V DC |
| UL rated voltage | 600 V AC / 600 V DC |
| Rated insulation voltage (Ui) | 1,000 V |
| Rated impulse withstand voltage (Uimp) | 12 kV |
| Overvoltage category | IV |
| Pollution degree | 3 |
| Connection of round conductors | 95–300 mm² |
| Connection of sector-shaped conductors | 95–300 mm² (up to 240 mm² single-wire) |
| AWG range | AWG 3/0 to AWG 550 kcmil |
| Busbar spacing | 60 mm |
| Compatible busbar systems | RiLineX and RiLine60 |
| Compatible busbars | 15 × 10 mm, 20 × 10 mm and 30 × 10 mm |
| Busbar thickness | 10 mm |
| Number of connections | 2 |
| Cable outlet | Top or bottom |
| Protection rating | IP2XB |
| Material | Polyamide (PA6) |
| Fire behaviour | UL 94 compliant |
| Colour | RAL 9005 |
| Dimensions (W × H × D) | 54.1 × 119.4 × 163.4 mm |
| Operating temperature | -5°C to +55°C |
| Storage temperature | -25°C to +75°C |
| Maximum operating humidity | 90% |
| Ambient humidity | 10% to 90%, non-condensing |
| Maximum power dissipation | 105 W |
| Standards | IEC/EN 61439-1 and UL 508 |
| UL SCCR | 27.5 kA at 600 V RMS unprotected |
| Conditional SCCR | 100 kA at 600 V with circuit-breaker up to 600 A or Class L fuse up to 2,000 A |
| Net weight | 0.8 kg |
| Gross weight | 0.892 kg |
| Approvals | UL and C-UL Listed |
| HS Code | 85369010 |
It is a single-pole connection adaptor for connecting large round or sector-shaped conductors to RiLineX and RiLine60 60 mm busbar systems.
The adaptor supports a maximum IEC rated current of 1,060 A and a UL rated current of 980 A.
The RX9361.315 accepts round and sector-shaped conductors from 95 mm² up to 300 mm², depending on conductor type.
Yes. Conductors may be connected from either the top or the bottom to suit the panel layout.
Yes. Two connection points enable full through-wiring for onward power distribution.
The adaptor is designed for RiLineX and RiLine60 60 mm busbar systems using 10 mm thick busbars.
Rittal RiLineX connection adaptors are trusted by switchgear manufacturers, panel builders and industrial engineers for creating safe, modular and reliable high-current connections within 60 mm busbar systems.
