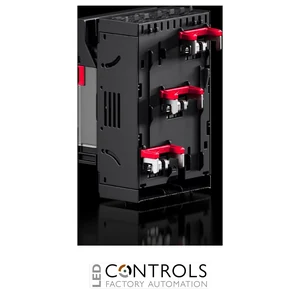

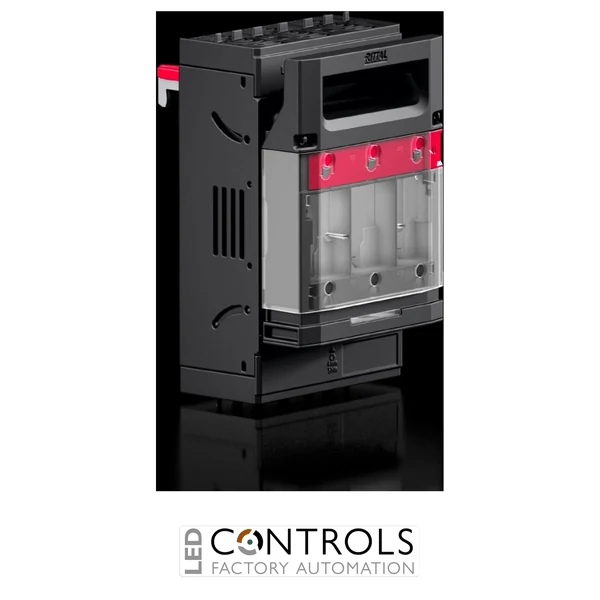

Why Choose the Rittal RX9362.000 RiLineX NH Fuse-Switch Disconnector?
The Rittal RX9362.000 is a premium RiLineX NH fuse-switch disconnector in NH size 00, designed for RiLineX and RiLine60 60 mm busbar systems. Combining dependable overcurrent protection, safe load isolation and integrated fuse monitoring, it provides a compact, high-performance solution for industrial power distribution and switchgear applications.
Designed for rated currents up to 160 A, the RX9362.000 features a lockable and sealable cover, integrated visual fuse monitoring, safe voltage test points and a convenient park position that simplifies maintenance. The screw terminal connection uses M8 terminals, while the cable outlet can be configured from either the top or bottom without tools.
The fuse-switch disconnector snaps directly onto 60 mm busbars and automatically adjusts to 5 mm or 10 mm busbar thicknesses. Its robust polyamide construction, IP2XB finger-safe protection and IEC-compliant design make it ideal for industrial control panels, motor control centres and OEM switchgear.
Key Advantages
- Designed for RiLineX and RiLine60 60 mm busbar systems.
- Suitable for NH size 00 and NH000 fuse links.
- 160 A rated current.
- Lockable and sealable cover improves operational safety.
- Integrated visual fuse monitoring enables rapid fault identification.
- Built-in voltage test points provide safe testing.
- Park position simplifies fuse replacement and maintenance.
- Tool-free adjustment for 5 mm and 10 mm busbars.
- Top or bottom cable entry.
Key Features
- RiLineX NH fuse-switch disconnector.
- 160 A rated current.
- 3-pole configuration.
- Suitable for NH00 and NH000 fuse links.
- Visual fuse monitoring.
- Integrated voltage measuring points.
- Lockable and sealable cover.
- Park position for maintenance.
- M8 screw terminal connection.
- Top or bottom cable outlet.
Designed for Safe Isolation and Easy Maintenance
The RX9362.000 combines switching, fuse protection and safe isolation in a compact assembly. The lockable cover can also be prepared for lead sealing, while integrated measuring points allow safe voltage testing without removing the cover. During servicing, the cover can be held securely in its dedicated park position, making fuse replacement quicker and safer.
Its snap-on mounting system installs directly onto RiLineX busbars without additional hardware, while the reversible cable outlet allows installers to optimise cable routing for virtually any enclosure configuration.
Typical Applications
- Industrial control panels.
- Motor control centres.
- Low-voltage switchboards.
- Power distribution systems.
- Machine building.
- OEM electrical equipment.
- Industrial automation.
- RiLineX and RiLine60 busbar installations.
