Why Choose the ABB 12-Module 1-Row Enclosure with Transparent Door?
The ABB 12-Module 1-Row Enclosure with Transparent Door, manufacturer order code 1SL1905A00, is a compact modular electrical distribution enclosure associated with ABB's Mistral Enclosures product group. Featuring a 12-module capacity, a single-row configuration and a transparent door, this enclosure provides a practical housing arrangement for compatible low-voltage electrical distribution equipment.
Designed for installations requiring a smaller modular distribution assembly, the enclosure offers space for organising compatible circuit protection, switching and control devices. Its 12-module, 1-row arrangement is particularly relevant to electrical installations where a limited number of modular devices must be accommodated within a dedicated enclosure.

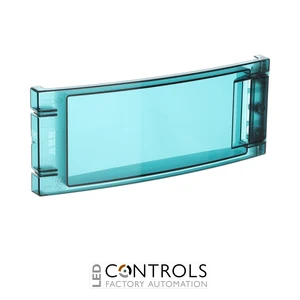

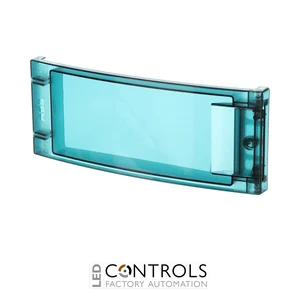

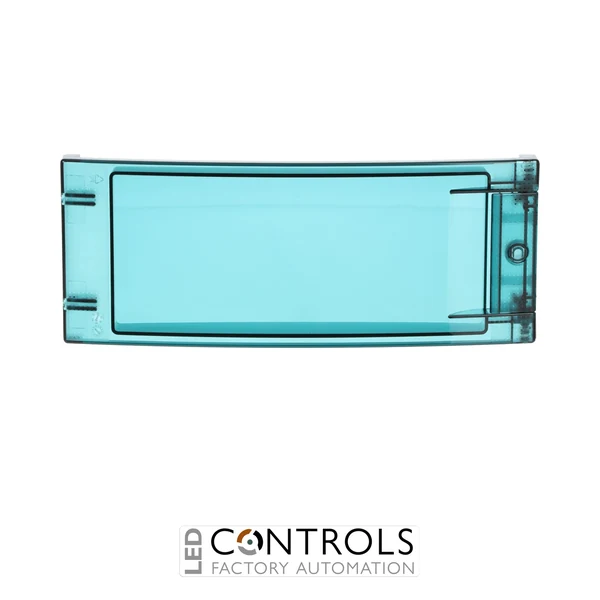

The transparent front door allows users and maintenance personnel to inspect visible device positions and status indicators without routinely opening the enclosure. This feature is useful for distribution boards incorporating miniature circuit breakers, residual current devices and other compatible modular electrical components.
As part of ABB's Mistral Enclosures product group, order code 1SL1905A00 provides a clearly identified enclosure configuration for electrical contractors, panel builders and maintenance engineers. Its suitability for a particular installation depends on the required mounting arrangement, environmental conditions, equipment compatibility and the applicable ABB technical specifications.
Key Advantages
- 12-module capacity: Provides a dedicated housing arrangement for compatible modular electrical devices.
- Single-row configuration: Supports a straightforward and organised electrical distribution layout.
- Transparent door: Allows visual inspection of installed devices and visible status indicators while the enclosure remains closed.
- Compact distribution arrangement: Suitable for installations requiring a relatively small number of modular devices.
- ABB Mistral Enclosures: Associated with ABB's electrical distribution enclosure product group.
- Organised equipment installation: Helps maintain a structured arrangement of circuit protection and control devices.
- Convenient circuit identification: The transparent door can assist with viewing device positions and circuit labels where visible.
- Modular equipment integration: Intended for use with compatible modular electrical distribution components.
- Professional installation: Suitable for compatible residential, commercial and light industrial electrical distribution applications.
- Clear manufacturer identification: ABB order code 1SL1905A00 supports accurate specification and replacement.
Key Features
- ABB modular electrical distribution enclosure.
- 12-module total capacity.
- 1-row internal equipment arrangement.
- 12 nominal module positions within the single-row configuration.
- Transparent door for visual inspection of installed equipment.
- Associated with the ABB Mistral Enclosures product group.
- Designed to accommodate compatible modular electrical distribution devices.
- Supports organised circuit protection and switching equipment layouts.
- Suitable for electrical installation, distribution board construction and refurbishment projects.
- ABB manufacturer order code: 1SL1905A00.
Reliable Modular Distribution for Compact Electrical Installations
Electrical distribution installations require suitable enclosures to accommodate protective devices, switching equipment and associated wiring. The ABB 1SL1905A00 provides a 12-module, single-row arrangement for compatible electrical equipment, supporting organised distribution board construction where a compact modular configuration is appropriate.
The specified 12-module capacity allows electrical contractors to plan the arrangement of compatible modular devices according to the requirements of the installation. The number of individual devices that can be installed depends on their module widths, associated accessories and the space required for wiring and electrical clearances.
A single-row configuration provides a straightforward layout for grouping protective and switching devices. This can be useful for smaller distribution boards, supplementary electrical circuits and dedicated equipment supplies where a larger multi-row enclosure is unnecessary.
The transparent door provides a practical means of viewing the installed equipment while keeping the enclosure closed. Depending on the devices fitted, operators may be able to observe switch positions, visible status indicators and circuit identification labels without opening the door.
The enclosure provides mechanical housing for electrical equipment but does not independently perform overload protection, short-circuit protection, residual current protection or electrical isolation. These functions must be provided by appropriately selected and correctly installed electrical devices.
Before installation, the enclosure's mounting arrangement, physical dimensions, ingress protection rating, impact resistance, applicable electrical characteristics and environmental suitability should be checked against ABB's technical documentation. These details are important when determining whether the enclosure is appropriate for a particular indoor, outdoor or industrial installation.
Electrical contractors should also consider cable entry arrangements, conductor routing, terminal requirements, thermal conditions and access for inspection and maintenance. Correct assembly and installation help maintain the intended performance and safety of the completed electrical distribution system.
Typical Applications
- Compact residential electrical distribution boards.
- Small commercial electrical distribution installations.
- Supplementary electrical circuit distribution.
- Dedicated electrical equipment supply enclosures.
- Compatible miniature circuit breaker installations.
- Compatible residual current protection arrangements.
- Lighting circuit distribution equipment.
- Small building services electrical installations.
- Electrical control and auxiliary circuit enclosures.
- Light industrial modular distribution applications.
- Electrical distribution board refurbishment and replacement.
- Installations requiring a 12-module, single-row enclosure with a transparent door.
