Why Choose the ABB 1SL1923A00 2x18M Metal Base Plate?

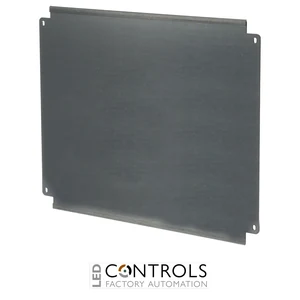

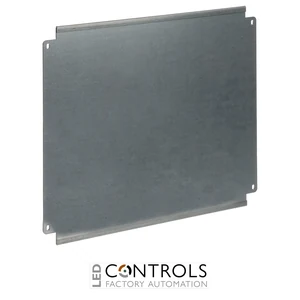

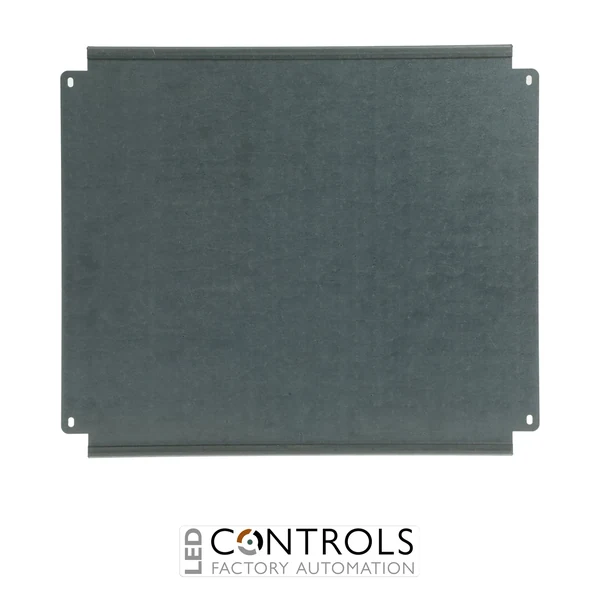

The ABB 1SL1923A00 is a robust 2x18M metal base plate designed for mounting electrical components within compatible ABB MISTRAL65 and MISTRAL65H distribution enclosures. As part of the ABB Mistral Enclosures product group, this genuine ABB accessory provides a rigid internal mounting surface for electrical distribution and control equipment.
Manufactured from galvanised steel, the 1SL1923A00 provides a durable mounting foundation for compatible electrical components. Its 2x18M configuration corresponds to two rows of 18 modular positions, making it suitable for appropriately configured 36-module MISTRAL65 enclosure installations. The metal plate allows suitable equipment to be mounted directly onto its surface using appropriate fixing methods.
With dimensions of 306 mm high × 360 mm wide × 2 mm thick and a nominal weight of 1.95 kg, the ABB 1SL1923A00 combines rigid construction with a compact internal mounting format. Its galvanised finish provides corrosion resistance, while the manufacturer-specific design supports straightforward integration into compatible ABB Mistral distribution systems.
Key Advantages
- Genuine ABB metal mounting base plate for electrical distribution enclosures.
- 2x18M configuration corresponding to two rows of 18 modular positions.
- Compatible with appropriately configured ABB MISTRAL65 and MISTRAL65H enclosures.
- Durable galvanised steel construction provides a rigid equipment mounting surface.
- Compact 306 × 360 × 2 mm dimensions for internal enclosure installation.
- Hot-dip galvanised surface finish helps protect the steel against corrosion.
- Supports flexible positioning of suitable electrical and control components.
- Suitable for professional electrical panel building and enclosure assembly.
Key Features
- ABB 1SL1923A00 metal base plate.
- ABB MISTRAL65 / MISTRAL65H enclosure accessory.
- 2x18M mounting plate configuration.
- 36 modular spacing positions across two rows.
- 306 mm nominal height.
- 360 mm nominal width.
- 2 mm nominal thickness.
- Steel construction for mechanical strength and rigidity.
- Hot-dip galvanised finish for surface protection.
- Solid, non-perforated mounting plate design.
- 1.95 kg nominal net weight.
- Designed for mounting compatible electrical components inside distribution enclosures.
- ABB manufacturer order code 1SL1923A00.
Reliable Metal Mounting Support for Electrical Enclosures
Metal base plates are important accessories in electrical enclosure installations where equipment requires a dedicated mounting surface. They provide mechanical support for suitable components and allow panel builders to organise equipment according to the requirements of the electrical installation.
The ABB 1SL1923A00 2x18M Metal Base Plate is designed for use within compatible MISTRAL65 and MISTRAL65H enclosure systems. Its solid steel construction provides a rigid mounting foundation, while the galvanised surface offers protection against corrosion during normal service conditions.
Unlike a conventional DIN rail mounting arrangement, a metal base plate provides a flat surface for installing suitable components using appropriate mounting hardware. This can be useful for electrical control devices, auxiliary equipment and other components requiring direct mechanical fixing. The plate itself does not provide electrical circuit protection or an independent IP rating; the completed installation must meet the applicable enclosure, earthing and electrical safety requirements.
Typical Applications
- ABB MISTRAL65 electrical distribution enclosures.
- Compatible ABB MISTRAL65H distribution cabinets.
- Internal mounting of electrical control and auxiliary components.
- Commercial electrical distribution installations.
- Industrial electrical panel building and enclosure assembly.
- Mechanical support for suitable electrical equipment.
- Customised electrical distribution and control panel configurations.
- Maintenance and replacement of compatible ABB mounting plates.
