Why Choose the ABB 41A06X12 MISTRAL41F Distribution Enclosure?

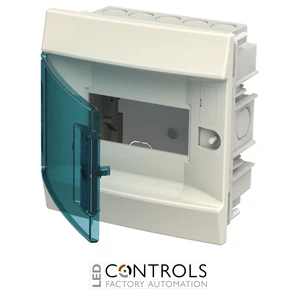

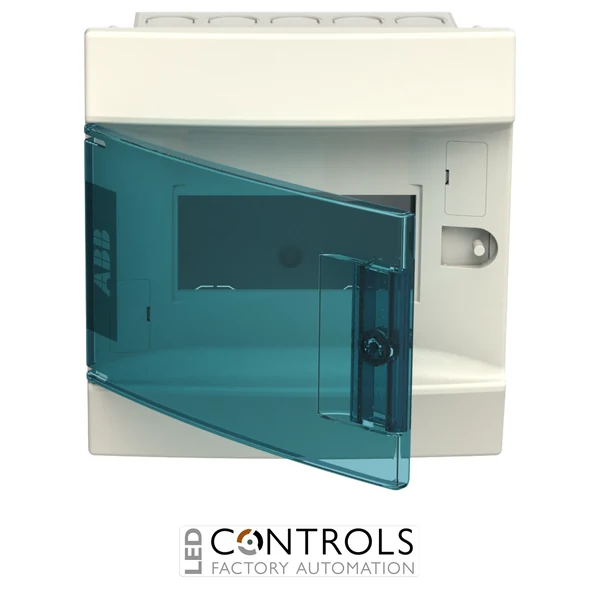

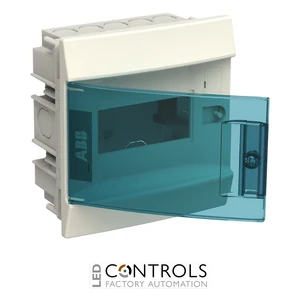

The ABB 41A06X12 is a compact and reliable IP41 flush-mounted electrical distribution enclosure designed to house modular circuit protection and switching devices in residential, commercial and building services installations. As part of the ABB MISTRAL41F enclosure series, it provides a practical solution for integrating electrical distribution equipment into walls while maintaining a neat and accessible installation.
Featuring 6 modular spaces arranged in a single row, the MISTRAL41F enclosure accommodates compatible DIN rail-mounted devices, including miniature circuit breakers, residual current devices and modular switching equipment. Its transparent door allows convenient visual inspection of installed devices and indicators without opening the enclosure.
With external dimensions of 192 mm wide × 202 mm high × 105 mm deep, the ABB 41A06X12 is designed for compact flush-mounted installations. Its IP41 protection rating, thermoplastic construction, Class II insulation and 650 °C glow-wire test classification make it suitable for appropriately specified indoor electrical distribution applications.
Key Advantages
- Compact IP41 electrical distribution enclosure for indoor installations.
- 6-module capacity arranged across one DIN rail row.
- Flush-mounted construction provides a neat, integrated wall installation.
- Transparent door enables visual inspection of installed circuit protection devices.
- Class II insulated thermoplastic housing for electrical distribution applications.
- 650 °C glow-wire classification for the specified enclosure variant.
- Compact 192 × 202 × 105 mm external dimensions.
- Part of the established ABB MISTRAL41F distribution enclosure series.
Key Features
- ABB MISTRAL41F enclosure series.
- 6 modular spaces for standard 18 mm modular electrical devices.
- Single-row configuration for compact electrical distribution installations.
- IP41 ingress protection when correctly assembled and installed.
- Single transparent plastic door for convenient device visibility.
- Flush-mounting design suitable for recessed wall installations.
- Class II electrical insulation.
- 650 °C glow-wire test classification.
- Thermoplastic enclosure construction.
- RAL 9016 traffic white finish.
- DIN rail mounting provision for compatible modular devices.
- Snap-function door closure.
- Supplied without neutral and protective earth terminal blocks.
- ABB manufacturer order code 1SLM004100A1201.
Reliable Flush-Mounted Protection for Electrical Distribution Systems
Flush-mounted distribution enclosures provide a practical solution for housing circuit protection and switching devices within building walls. By accommodating modular electrical equipment in a recessed installation, they help create an organised distribution arrangement while reducing the enclosure's projection into the surrounding space.
The ABB MISTRAL41F 41A06X12 is designed for indoor installations requiring IP41 ingress protection. This rating provides protection against solid objects larger than 1 mm and vertically falling water drops under the specified test conditions. The enclosure is not intended to provide the dust-tight or water-jet protection associated with higher-rated enclosure systems.
Its single-row, 6-module configuration is suitable for compact electrical distribution arrangements, while the transparent door makes it easy to check device positions and indicators. The enclosure's Class II insulated construction and DIN rail mounting arrangement support professional installation of compatible electrical equipment.
Typical Applications
- Residential electrical distribution boards.
- Commercial building electrical installations.
- Flush-mounted circuit protection assemblies.
- Miniature circuit breaker and residual current device installations.
- Lighting circuit distribution and protection.
- Small electrical sub-distribution systems.
- Building services and utility installations.
- Indoor modular electrical switching and control applications.
