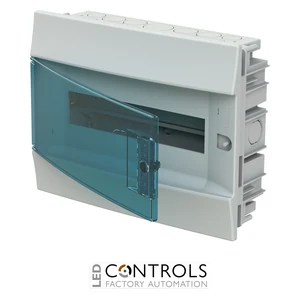

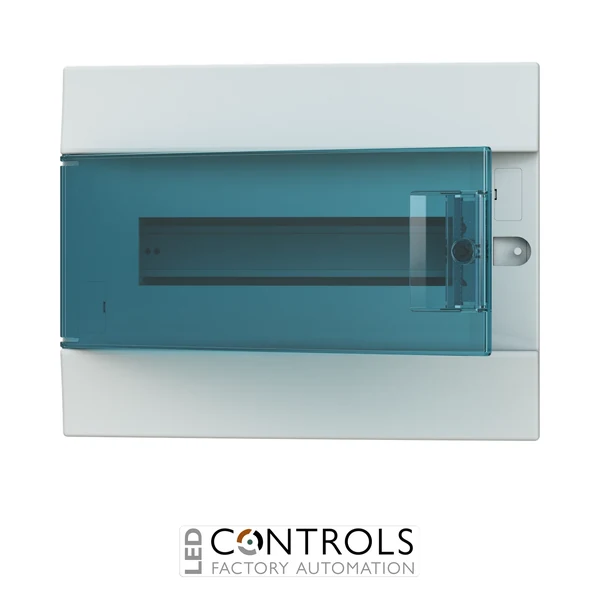

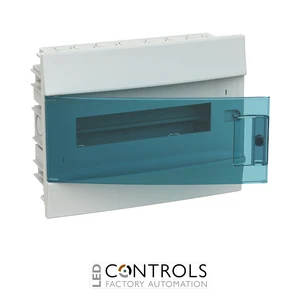

Why Choose the ABB 41A12X12 MISTRAL41F IP41 Flush-Mounted Distribution Enclosure?
The ABB 41A12X12, manufacturer order code 1SLM004100A1203, is a compact and reliable IP41 flush-mounted electrical distribution enclosure with a transparent door, designed for the organised installation and protection of modular electrical equipment. As part of the ABB System pro E comfort MISTRAL41F enclosure series, this consumer unit provides a practical solution for residential, commercial and building services electrical distribution installations.
Featuring 12 modular installation spaces arranged across one DIN rail row, the ABB MISTRAL41F enclosure accommodates compatible miniature circuit breakers, residual current devices, switching equipment and other DIN rail-mounted components. Its transparent single door allows convenient visual inspection of installed devices without opening the enclosure, while its IP41 protection rating provides protection against solid objects larger than 1 mm and vertically falling water droplets under the specified test conditions.
With overall dimensions of 250 mm high, 320 mm wide and approximately 107 mm deep, the ABB 41A12X12 is designed for discreet installation within suitable wall recesses. Its Class II double-insulated thermoplastic construction, RAL 9016 traffic white finish and 650 °C glow-wire resistance make it a dependable choice for professional electrical installations requiring an attractive, space-efficient distribution enclosure.
Key Advantages
- Compact IP41 flush-mounted electrical distribution enclosure for professional low-voltage installations.
- 12-module capacity suitable for circuit protection and electrical distribution equipment.
- Single-row DIN rail configuration provides an organised mounting arrangement.
- Transparent hinged door enables visual inspection of installed devices without opening the enclosure.
- Class II double-insulated construction supports electrical safety.
- 650 °C glow-wire-resistant thermoplastic housing suitable for building electrical installations.
- Flush-mounted design provides a neat appearance with reduced projection from the wall.
- RAL 9016 traffic white finish complements modern residential and commercial interiors.
- Preassembled DIN rail mounting arrangement helps simplify electrical equipment installation.
- Part of the established ABB MISTRAL41F enclosure range, offering modular installation flexibility.
Key Features
- ABB System pro E comfort MISTRAL41F enclosure series.
- Manufacturer order code: 1SLM004100A1203.
- Model designation: 41A12X12.
- IP41 ingress protection for suitable indoor electrical installations.
- 12 modular installation spaces arranged across one row.
- Transparent single-door design for convenient equipment visibility.
- Class II double insulation for protection against electric shock.
- 650 °C glow-wire-tested thermoplastic construction.
- RAL 9016 traffic white housing for a professional installation finish.
- Flush-mounted configuration designed for installation within suitable wall recesses.
- Supplied with an assembled DIN mounting rail for modular electrical equipment.
- Push-button door closure for convenient access.
- Protective front cover with modular equipment access cut-out.
- 22 W specified power dissipation for the enclosure configuration.
- Compatible with suitable MISTRAL41F accessories and modular installation components.
Reliable Flush-Mounted Protection for Electrical Distribution Systems
The ABB MISTRAL41F distribution enclosure is designed to provide a secure and organised housing for modular electrical equipment in suitable indoor environments. Its IP41-rated construction protects against the ingress of solid objects larger than 1 mm and vertically falling water droplets, making it appropriate for installations where higher levels of dust or moisture protection are not required. The transparent door enables users and maintenance personnel to inspect circuit breaker positions and equipment indicators without exposing internal electrical components.
The MISTRAL41F series combines practical internal mounting arrangements with a discreet flush-mounted design. The enclosure's thermoplastic construction provides electrical insulation, while the DIN rail installation system supports compatible modular protection and switching devices. Its traffic white finish and recessed mounting format make it particularly suitable for residential and commercial building interiors. Correct wall preparation, cable entry arrangements and professional installation are essential to maintaining the intended protection and performance of the completed electrical distribution assembly.
Typical Applications
- Residential electrical distribution and consumer unit installations.
- Commercial building circuit protection and electrical distribution.
- Flush-mounted distribution boards in houses and apartments.
- Miniature circuit breaker and residual current device installations.
- Office buildings, retail premises and commercial interiors.
- Building services and low-voltage electrical infrastructure.
- Electrical distribution systems requiring discreet recessed installation.
- Renovation projects and new-build electrical installations.
