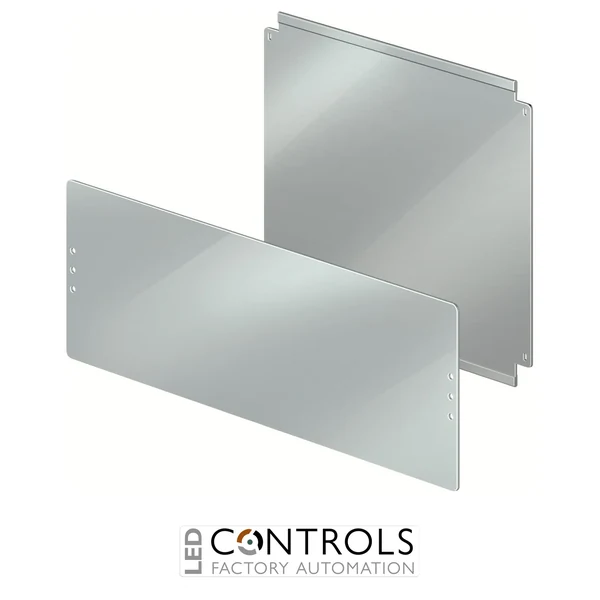

Why Choose the ABB 1SLM006500A1956 MISTRAL65 3x18M Plastic Base Plate?
The ABB 1SLM006500A1956 is a purpose-designed plastic base plate for 3-row, 18-module electrical distribution enclosures. Part of the ABB MISTRAL65 and MISTRAL65H enclosure accessory range, this mounting plate provides a practical internal mounting surface for compatible electrical distribution board assemblies. Its robust plastic construction and dedicated enclosure compatibility make it suitable for professional electrical installations.
Designed for electrical installers, panel builders and maintenance engineers, the ABB 1SLM006500A1956 provides a structured mounting platform within compatible MISTRAL65 distribution enclosures. The plate supports the arrangement of suitable electrical equipment and enclosure components, helping installers achieve an organised and consistent internal layout. Its non-perforated design provides a continuous mounting surface for applications requiring a solid plastic base plate.
With a 3 × 18-module configuration providing a total of 54 modular positions, the ABB 1SLM006500A1956 is designed for compatible three-row distribution boards. Measuring 456 mm wide × 356 mm high, the plate offers a practical mounting area for electrical distribution equipment. Its plastic construction provides a lightweight alternative to metal mounting plates while maintaining compatibility with the intended ABB enclosure system.
Key Advantages
- Purpose-designed plastic base plate for ABB MISTRAL65 and MISTRAL65H enclosures.
- 3 × 18-module configuration suitable for compatible three-row distribution boards.
- Supports enclosure arrangements with a total capacity of 54 modules.
- 456 mm × 356 mm mounting plate dimensions provide a substantial internal mounting area.
- Durable plastic construction offers a lightweight mounting solution.
- Non-perforated mounting surface for suitable electrical equipment and components.
- Helps achieve an organised and professional electrical distribution board layout.
- Designed for integration with compatible ABB enclosure accessories.
- Suitable for new installations, enclosure assembly and replacement applications.
- ABB-manufactured accessory for consistent integration with the MISTRAL65 enclosure system.
Key Features
- ABB MISTRAL65 / MISTRAL65H enclosure accessory range.
- Plastic base plate for electrical distribution enclosures.
- ABB type designation 41Z130.
- Three-row mounting configuration.
- 18 modules per row.
- 54-module total enclosure configuration.
- 18 mm modular system.
- 456 mm nominal width.
- 356 mm nominal height.
- Plastic material for lightweight enclosure integration.
- Non-perforated plate design.
- Designed for compatible MISTRAL65 and MISTRAL65H switchboard assemblies.
- Suitable for mounting compatible electrical distribution components using appropriate fixing arrangements.
- ABB manufacturer order code 1SLM006500A1956.
Reliable Internal Mounting for Electrical Distribution Enclosures
Electrical distribution enclosures require suitable internal mounting arrangements to accommodate electrical components securely and maintain an organised installation. The ABB 1SLM006500A1956 plastic base plate provides a dedicated mounting surface for compatible three-row MISTRAL65 enclosure configurations, helping panel builders and electrical installers establish a consistent internal equipment layout.
The ABB MISTRAL65 and MISTRAL65H enclosure systems are designed for modular electrical distribution applications. Their range of compatible accessories includes mounting plates, enclosure covers, doors and installation components. The 1SLM006500A1956 complements these systems by providing a plastic mounting plate specifically intended for 3 × 18-module, 54-module arrangements.
Unlike a metal mounting plate, the plastic construction provides a non-metallic mounting surface. Its non-perforated design offers flexibility for suitable mounting arrangements, subject to the manufacturer's installation requirements and the equipment being fitted. Correct selection of fixing methods, component spacing and electrical clearances is essential for maintaining the intended performance of the completed distribution assembly.
The base plate is an internal enclosure accessory rather than a complete protective enclosure. Any required electrical bonding, protective earthing, insulation coordination or ingress protection must be addressed through the design and installation of the complete electrical distribution system.
Typical Applications
- ABB MISTRAL65 electrical distribution enclosures.
- ABB MISTRAL65H switchboard assemblies.
- Three-row, 54-module electrical distribution boards.
- Internal mounting of compatible electrical distribution equipment.
- Residential electrical distribution installations.
- Commercial building electrical distribution systems.
- Industrial electrical distribution enclosures.
- Electrical panel building and switchboard assembly.
- Electrical enclosure refurbishment and modification.
- Replacement of compatible internal plastic mounting plates.
- Professional electrical installation and distribution board maintenance.
