Why Choose the ABB 41P12X22 MISTRAL41W IP41 Distribution Enclosure?

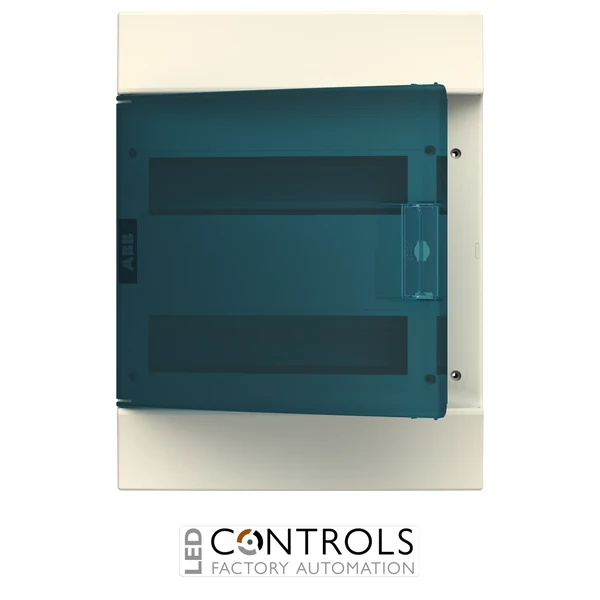

The ABB 41P12X22, manufacturer order code 1SPE007717F0520, is a professional IP41 wall-mounted electrical distribution enclosure with a transparent door. Part of the ABB System pro E comfort MISTRAL41W series, this enclosure provides an organised and accessible housing for modular circuit protection and switching equipment in residential, commercial and light industrial electrical installations.

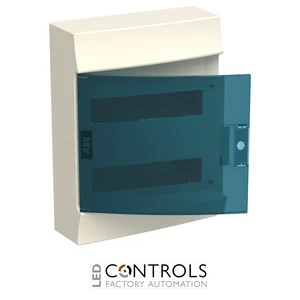

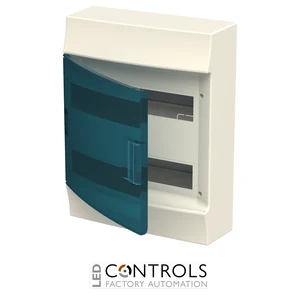

Featuring 24 modular installation spaces arranged across two DIN rail rows of 12 modules each, the ABB MISTRAL41W enclosure accommodates compatible miniature circuit breakers, residual current devices, isolators and other modular electrical equipment. Its transparent single door allows users and maintenance personnel to inspect device positions and status indicators without opening the enclosure.
With dimensions of 292 mm wide, 382 mm high and 120 mm deep, the ABB 41P12X22 provides practical distribution capacity in a compact surface-mounted format. Its IP41 ingress protection, Class II double-insulated construction and 650 °C glow-wire resistance make it a dependable choice for professional indoor electrical installations.
Key Advantages
- 24-module capacity provides space for multiple modular circuit protection and switching devices.
- Two-row configuration accommodates 12 standard modules per DIN rail row.
- IP41 ingress protection supports safe equipment installation in suitable indoor environments.
- Transparent door enables convenient visual inspection of installed electrical devices.
- Class II double-insulated construction supports protection against electric shock.
- 650 °C glow-wire-tested thermoplastic housing supports professional electrical installation requirements.
- Surface-mounted design allows installation without a recessed wall opening.
- RAL 9016 white finish complements residential and commercial interiors.
- DIN rail mounting arrangement supports organised installation of compatible modular equipment.
- Compact enclosure dimensions provide practical circuit distribution capacity without excessive wall-space requirements.
- Part of the established ABB MISTRAL41W enclosure range, with compatible accessories available separately.
Key Features
- ABB System pro E comfort MISTRAL41W enclosure series.
- Manufacturer model: 41P12X22.
- ABB order code: 1SPE007717F0520.
- IP41-rated electrical distribution enclosure.
- 24 standard 18 mm modular spaces.
- Two DIN rail rows with 12 modular positions per row.
- Single transparent plastic door for convenient equipment inspection.
- Surface-mounted wall installation.
- Thermoplastic enclosure construction with electrical insulating properties.
- Class II double-insulated design.
- 650 °C glow-wire resistance.
- RAL 9016 white housing for a professional finish.
- DIN rails included for compatible modular electrical devices.
- Front cover with modular equipment openings.
- 30.2 W specified power loss for enclosure thermal assessment.
- Supplied as an empty distribution enclosure for fitting appropriate electrical devices.
Organised Two-Row Electrical Distribution for Indoor Installations
The ABB MISTRAL41W distribution enclosure provides a practical solution for organising low-voltage electrical protection equipment in buildings. Its two-row layout allows installers to distribute compatible miniature circuit breakers, residual current devices and switching components across 24 modular positions. The transparent door allows convenient visual checks while helping maintain separation between users and the internal electrical components during normal operation.
The IP41 protection rating provides protection against solid objects larger than 1 mm and vertically falling water droplets under specified test conditions. This makes the enclosure suitable for appropriately selected indoor environments, rather than exposed outdoor locations requiring higher ingress protection. The enclosure is supplied with DIN rails but without neutral or protective earth terminal blocks, allowing installers to select suitable connection accessories for the completed assembly. Correct cable routing, circuit protection selection and thermal assessment remain essential to a compliant installation.
Typical Applications
- Residential electrical distribution and consumer unit installations.
- Commercial building circuit protection and distribution.
- Wall-mounted electrical distribution boards in offices and retail premises.
- Miniature circuit breaker and residual current device installations.
- Local distribution boards for lighting and socket circuits.
- Building services and low-voltage electrical infrastructure.
- Electrical distribution in workshops and suitable indoor utility areas.
- New-build and refurbishment projects requiring a 24-module distribution enclosure.
