Why Choose the ABB BL610 UK600 Frame with Door RAL 9016?

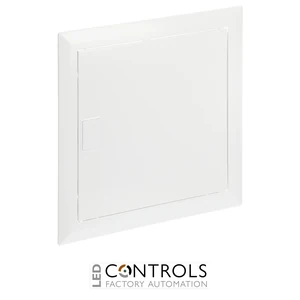

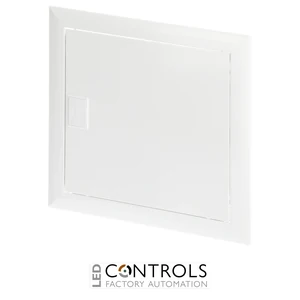

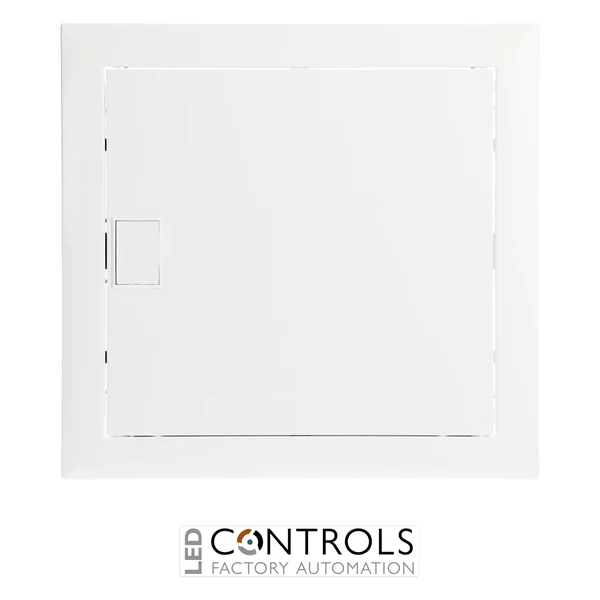

The ABB BL610, manufacturer order code 2CPX031081R9999, is a high-quality trim frame with solid door designed for compatible ABB UK600 electrical distribution enclosures. As part of the ABB UK600 consumer unit and enclosure accessory range, this frame and door assembly provides a durable, attractive and practical finishing solution for single-row electrical distribution boards.
Manufactured from powder-coated sheet steel and finished in RAL 9016 traffic white, the ABB BL610 combines mechanical durability with a clean, contemporary appearance. Its solid door conceals the installed electrical equipment, helping create a neat and professional finish in residential, commercial and building services installations. The integrated tip-in door closure provides convenient operation, while an optional security lock can be fitted where additional access control is required.
Specifically designed for ABB UK61 series single-row consumer units, the BL610 supports a 12-module enclosure configuration. With overall dimensions of 384 mm wide × 372 mm high × 33 mm deep, the assembly is suitable for compatible flush-mounted distribution enclosures. Its removable trim frame and door arrangement also supports installation, finishing and subsequent maintenance.
Key Advantages
- Purpose-designed frame and door assembly for ABB UK600 consumer units.
- Single-row configuration compatible with designated UK61 series enclosures.
- Suitable for 12-module electrical distribution board arrangements.
- Powder-coated sheet steel construction provides a durable and professional enclosure finish.
- RAL 9016 traffic white colour complements modern building interiors.
- Solid steel door conceals electrical distribution equipment from view.
- Convenient tip-in door closure for straightforward everyday operation.
- Optional security lock available for applications requiring additional access control.
- Removable frame and door design supports convenient installation and maintenance.
- Designed for integration with compatible ABB UK600 flush-mounted enclosure systems.
- Helps achieve a neat, consistent and professional electrical distribution board appearance.
- ABB-manufactured accessory designed for dependable enclosure integration.
Key Features
- ABB UK600 consumer unit accessory range.
- BL610 trim frame with solid door.
- Manufacturer order code 2CPX031081R9999.
- Compatible with ABB UK61 series enclosures.
- 1-row enclosure configuration.
- 12-module compatibility.
- Sheet steel construction for frame and door.
- Powder-coated surface finish.
- RAL 9016 traffic white colour.
- Solid, non-transparent protective door.
- Tip-in door closure mechanism.
- Optional security locking accessory available.
- 384 mm overall width.
- 372 mm overall height.
- 33 mm overall depth.
- IP30 protection classification.
- Removable frame and door arrangement for installation and servicing.
- Designed for compatible flush-mounted UK600 distribution enclosures.
Reliable Protection and Professional Finishing for UK600 Consumer Units
Electrical distribution enclosures require suitable front covers and doors to provide an organised installation and help restrict routine access to internal electrical components. The ABB BL610 trim frame with door is designed to complete compatible UK61 series consumer unit assemblies, providing a robust steel front cover and an attractive finish for flush-mounted electrical distribution boards.
The ABB UK600 enclosure system offers flexible solutions for residential and commercial electrical distribution. Its modular design accommodates protective devices and associated electrical equipment within dedicated enclosure arrangements. The BL610 is specifically matched to the single-row UK61 enclosure format, helping installers achieve consistent alignment between the enclosure body, trim frame and door.
The powder-coated sheet steel construction provides a durable external surface, while the RAL 9016 white finish integrates well with modern interior environments. The solid door conceals installed devices when closed, and the tip-in closure mechanism provides convenient access for authorised operation and inspection. An optional security lock can be added where additional access restriction is required.
The removable trim frame and door arrangement supports practical installation and maintenance. Its design accommodates the finishing requirements of compatible flush-mounted enclosure installations, helping achieve a tidy interface between the electrical distribution board and the surrounding wall surface.
The BL610 is a frame and door accessory rather than a complete electrical enclosure. Its stated IP30 classification must be considered alongside the specification and correct assembly of the complete UK600 distribution board. Suitable installation practices and compatible ABB components are essential for maintaining the intended protective characteristics of the finished installation.
Typical Applications
- ABB UK61 series single-row consumer units.
- Compatible 12-module electrical distribution boards.
- Residential flush-mounted electrical distribution installations.
- Commercial building electrical distribution systems.
- Office and workplace consumer unit installations.
- Apartment and residential property electrical distribution boards.
- Building services and electrical infrastructure installations.
- Electrical panel assembly and enclosure finishing.
- Replacement of compatible UK600 trim frames and doors.
- Electrical distribution board refurbishment and modernisation.
- Professional electrical installation and maintenance projects.
- Applications requiring a durable white steel enclosure door.
