Why Choose the ABB BL620 UK600 Frame with Door 2-Row RAL 9016?

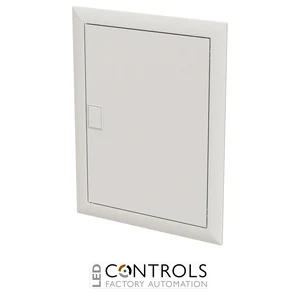

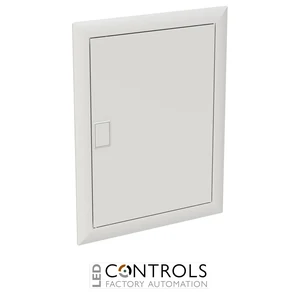

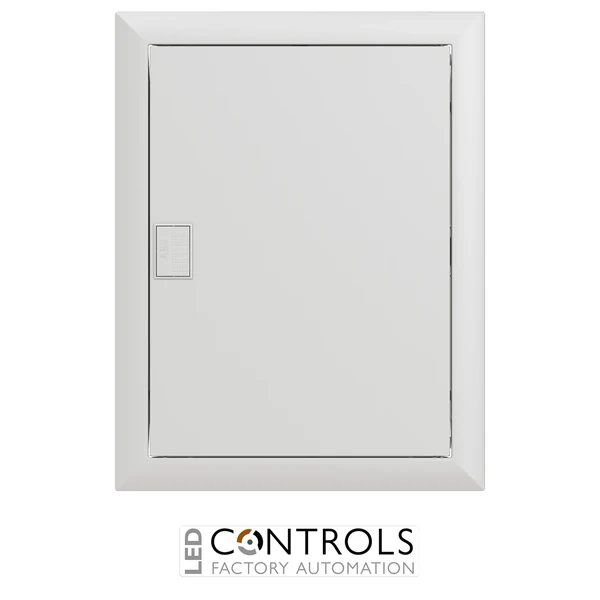

The ABB BL620, manufacturer order code 2CPX031082R9999, is a durable and professionally finished trim frame with solid steel door designed for compatible ABB UK600 electrical distribution enclosures. As part of the ABB UK600 consumer unit and enclosure accessory range, this frame and door assembly provides a practical finishing solution for two-row electrical distribution boards used in residential, commercial and building services installations.
Manufactured from powder-coated sheet steel and finished in RAL 9016 traffic white, the ABB BL620 combines mechanical durability with a clean, contemporary appearance. Its solid, non-transparent door conceals installed electrical equipment, helping create a neat and professional finish. The integrated tip-in door closure provides convenient operation, while a compatible security lock is available separately for installations requiring additional access control.
Specifically designed for ABB UK62 series two-row consumer units, the BL620 supports a 24-module enclosure configuration. With overall dimensions of 384 mm wide × 497 mm high × 33 mm deep, the assembly is suitable for compatible flush-mounted distribution enclosures. Its removable trim frame and door arrangement also supports straightforward installation, wall-finishing adjustments and subsequent maintenance.
Key Advantages
- Purpose-designed frame and door assembly for ABB UK600 consumer units.
- Two-row configuration compatible with designated UK62 series enclosures.
- Suitable for 24-module electrical distribution board arrangements.
- Powder-coated sheet steel construction provides a durable and professional enclosure finish.
- RAL 9016 traffic white colour complements modern residential and commercial interiors.
- Solid steel door conceals installed electrical distribution equipment.
- Convenient tip-in door closure for straightforward operation.
- Optional security lock available for applications requiring additional access control.
- Removable frame and door arrangement supports convenient installation and maintenance.
- Plaster compensation capability assists with alignment in compatible flush-mounted installations.
- IP30 protection classification for the designated enclosure assembly.
- Designed for consistent integration with compatible ABB UK600 flush-mounted enclosure systems.
Key Features
- ABB UK600 consumer unit accessory range.
- BL620 trim frame with solid door.
- Manufacturer order code 2CPX031082R9999.
- Compatible with ABB UK62 series enclosures.
- 2-row enclosure configuration.
- 24-module compatibility, with 12 modules per row.
- Sheet steel frame and door construction.
- Powder-coated surface finish.
- RAL 9016 traffic white colour.
- Single solid, non-transparent protective door.
- Tip-in door closure mechanism.
- Compatible optional security locking accessory.
- 384 mm overall width.
- 497 mm overall height.
- 33 mm overall depth.
- IP30 protection classification.
- Removable trim frame and door for installation and servicing.
- Plaster compensation arrangement for compatible flush-mounted enclosures.
- Designed for professional electrical distribution board finishing.
Reliable Protection and Professional Finishing for UK600 Consumer Units
Electrical distribution enclosures require correctly fitted front covers and doors to provide an organised installation and help restrict routine access to internal electrical components. The ABB BL620 trim frame with door is designed to complete compatible UK62 series consumer unit assemblies, providing a durable steel front assembly and a clean finish for flush-mounted electrical distribution boards.
The ABB UK600 enclosure system provides modular solutions for residential and commercial electrical distribution. Its flexible design accommodates protective devices and associated electrical equipment within dedicated enclosure arrangements. The BL620 is specifically matched to the two-row UK62 enclosure format, supporting distribution boards with 24 modular positions and helping installers achieve consistent alignment between the enclosure body, trim frame and door.
The powder-coated sheet steel construction provides a robust external surface, while the RAL 9016 traffic white finish integrates well with contemporary interior environments. The solid door conceals the installed electrical devices when closed, and the tip-in closure mechanism provides convenient access for authorised operation and inspection. An optional security lock can be fitted where additional access restriction is required.
The removable trim frame and door arrangement supports practical installation, adjustment and maintenance. Its plaster compensation capability helps installers accommodate finishing variations around compatible flush-mounted enclosure installations, providing a tidy interface between the distribution board and surrounding wall surface.
The BL620 is a frame and door accessory rather than a complete electrical enclosure. Its IP30 classification must be considered alongside the specification and correct assembly of the complete UK600 distribution board. Suitable installation practices and compatible ABB components are essential for maintaining the intended protective characteristics of the finished installation.
Typical Applications
- ABB UK62 series two-row consumer units.
- Compatible 24-module electrical distribution boards.
- Residential flush-mounted electrical distribution installations.
- Commercial building electrical distribution systems.
- Office and workplace consumer unit installations.
- Apartment and residential property electrical distribution boards.
- Building services and electrical infrastructure installations.
- Electrical panel assembly and enclosure finishing.
- Replacement of compatible UK600 trim frames and doors.
- Electrical distribution board refurbishment and modernisation.
- Professional electrical installation and maintenance projects.
- Applications requiring a durable white steel enclosure door.
