Why Choose the ABB BL630 Frame Door 3R RAL9016?

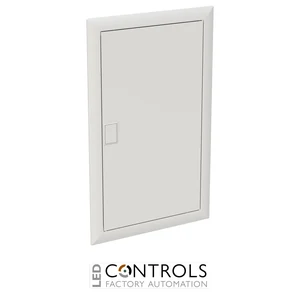

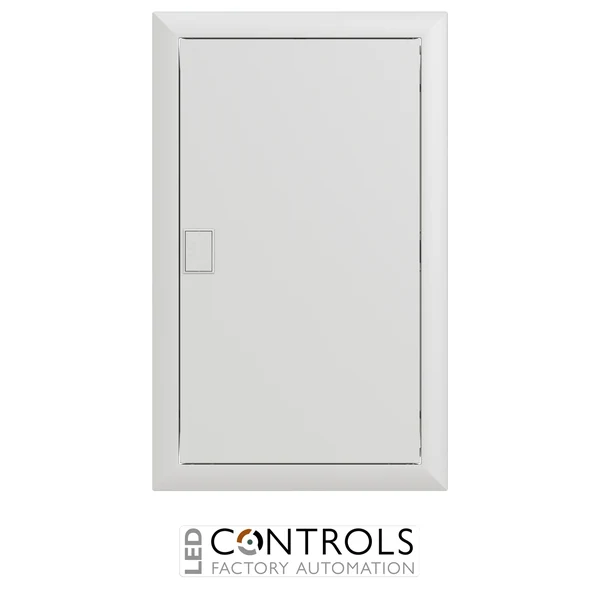

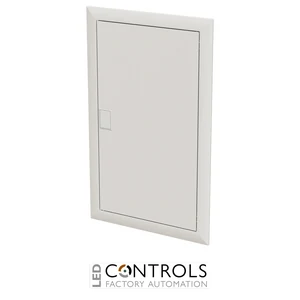

The ABB BL630 (2CPX031083R9999) is a high-quality steel trim frame with protective door designed for ABB UK600 electrical distribution enclosures. As part of the ABB UK600 enclosure accessories range, this frame and door assembly provides a durable, professional finishing solution for three-row consumer units and recessed electrical distribution boards.
Manufactured from robust powder-coated sheet steel, the BL630 features an attractive RAL 9016 traffic white finish that complements modern residential, commercial and industrial electrical installations. Its integrated single-door design provides convenient access to the distribution board while protecting internal electrical components from accidental contact and everyday environmental exposure.
With overall dimensions of 622 mm high, 384 mm wide and 33 mm deep, the ABB BL630 is specifically designed for compatible ABB UK63 three-row distribution enclosures accommodating 36 modular units. The frame and door assembly features a convenient tip-in closure mechanism, removable construction and plaster compensation capability, helping simplify installation and maintenance.
Key Advantages
- Genuine ABB UK600 trim frame and protective door assembly.
- Three-row configuration designed for compatible UK63 distribution enclosures.
- 36-module compatibility for electrical distribution board installations.
- Durable powder-coated sheet steel construction for long-lasting performance.
- Attractive RAL 9016 traffic white finish suitable for modern interiors.
- IP30 protection rating when correctly installed in the intended enclosure configuration.
- Convenient tip-in door closure for straightforward access and operation.
- Removable frame and door design with plaster compensation capability.
- Optional security lock accessory available for applications requiring additional access control.
Key Features
- ABB UK600 enclosure accessories series.
- BL630 trim frame with protective door.
- Manufacturer order code: 2CPX031083R9999.
- Three-row, 36-module enclosure configuration.
- Single solid steel door with matching trim frame.
- Powder-coated sheet steel construction.
- RAL 9016 traffic white surface finish.
- IP30 degree of protection.
- 622 mm x 384 mm x 33 mm overall dimensions.
- Integrated tip-in door closing mechanism.
- Removable frame and door for convenient installation and servicing.
- Plaster compensation capability for recessed enclosure installations.
- Optional security lock accessory for enhanced access control.
- Designed for compatible ABB UK63 electrical distribution boards.
Reliable Protection and Professional Finishing for Electrical Distribution Boards
A correctly selected frame and protective door are essential for completing a safe, accessible and professionally finished electrical distribution installation. The ABB BL630 frame door assembly provides a robust front covering for compatible UK63 distribution enclosures, helping protect installed electrical equipment while maintaining convenient access for authorised inspection and operation.
The ABB UK600 enclosure system is designed for flexible electrical distribution installations in residential and commercial buildings. Its coordinated enclosure accessories allow electrical contractors and panel builders to achieve consistent installation quality and a clean architectural finish. The BL630 combines powder-coated steel construction, a practical tip-in closure and a removable frame design to support efficient fitting, servicing and long-term operation.
Typical Applications
- ABB UK63 three-row electrical distribution enclosures.
- Residential consumer unit and distribution board installations.
- Commercial building electrical distribution systems.
- Recessed electrical distribution boards in offices and public buildings.
- Electrical refurbishment and enclosure replacement projects.
- Professional electrical panel assembly and installation.
- Distribution board finishing in apartments and residential developments.
- Replacement of compatible UK600 enclosure frames and protective doors.
