Why Choose the ABB BL640 Frame Door 4R RAL9016?

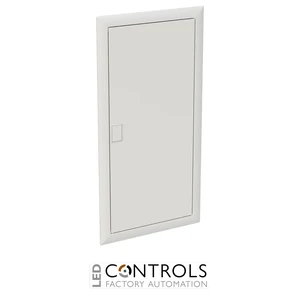

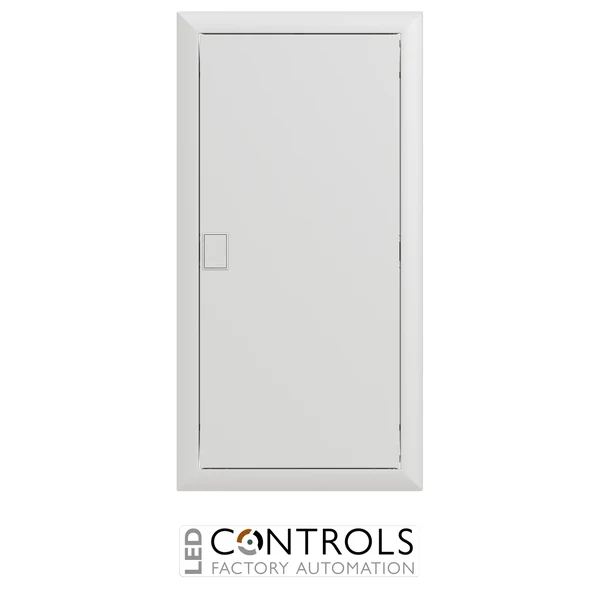

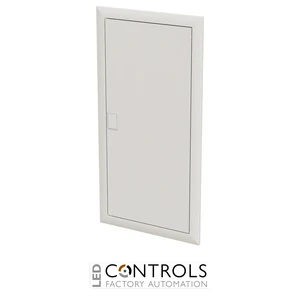

The ABB BL640 (2CPX031084R9999) is a durable steel trim frame with protective door designed for ABB UK600 electrical distribution enclosures. As part of the ABB UK600 enclosure accessories range, this frame and door assembly provides a professional finishing solution for four-row electrical distribution boards, combining robust construction with convenient access to installed electrical equipment.
Manufactured from high-quality powder-coated sheet steel, the BL640 features a clean RAL 9016 white finish suitable for residential, commercial and industrial electrical installations. Its solid protective door incorporates a practical Tip-in closure mechanism for straightforward opening and closing. The removable frame and door construction also includes plaster compensation capability, helping installers achieve a neat finish when fitting recessed distribution enclosures.
With overall dimensions of 747 mm high, 384 mm wide and 33 mm deep, the ABB BL640 is specifically designed for compatible ABB UK64 four-row distribution enclosures accommodating 48 modular units. The assembly provides IP30 protection in its intended installation configuration and supports the use of an optional security lock where additional access control is required.
Key Advantages
- Genuine ABB UK600 trim frame and protective door assembly for electrical distribution enclosures.
- Four-row configuration designed for compatible ABB UK64 distribution boards.
- 48-module compatibility for larger electrical distribution installations.
- Robust powder-coated sheet steel construction for durability and long service life.
- Attractive RAL 9016 white finish suitable for modern electrical installations.
- IP30 protection rating for the intended enclosure configuration.
- Convenient Tip-in door closure for simple operation.
- Removable trim frame and door with plaster compensation capability.
- Optional security lock accessory available for enhanced access control.
Key Features
- ABB UK600 enclosure accessories series.
- BL640 frame and protective door assembly.
- Manufacturer order code: 2CPX031084R9999.
- Four-row, 48-module enclosure configuration.
- Single solid steel protective door with matching trim frame.
- Powder-coated sheet steel construction.
- RAL 9016 white surface finish.
- IP30 degree of protection.
- 747 mm x 384 mm x 33 mm overall dimensions.
- Integrated Tip-in door closure mechanism.
- Removable frame and door for convenient installation and servicing.
- Plaster compensation capability for recessed enclosure installations.
- Optional security lock available separately.
- Designed for compatible ABB UK64 electrical distribution enclosures.
Reliable Protection and Professional Finishing for Electrical Distribution Boards
A correctly selected trim frame and protective door help complete a safe, accessible and professionally finished electrical distribution installation. The ABB BL640 frame and door assembly provides a robust front covering for compatible four-row UK64 distribution enclosures, helping protect installed electrical equipment from accidental contact while allowing convenient access for authorised operation, inspection and maintenance.
The ABB UK600 enclosure system offers a coordinated range of electrical distribution enclosures and accessories for residential and commercial building installations. The BL640 combines durable steel construction, a clean white finish and a practical Tip-in closure mechanism with removable mounting components and plaster compensation capability. These features help electrical contractors and panel builders achieve consistent installation quality while simplifying fitting, maintenance and replacement.
Typical Applications
- ABB UK64 four-row electrical distribution enclosures.
- Residential consumer unit and distribution board installations.
- Commercial building electrical distribution systems.
- Recessed electrical distribution boards in offices and public buildings.
- Apartment buildings and residential developments.
- Electrical refurbishment and enclosure replacement projects.
- Professional electrical panel assembly and installation.
- Replacement of compatible UK600 enclosure frames and protective doors.
