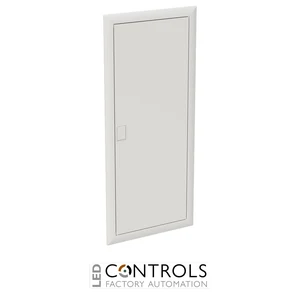

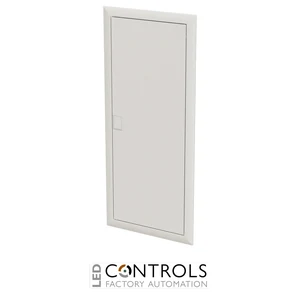

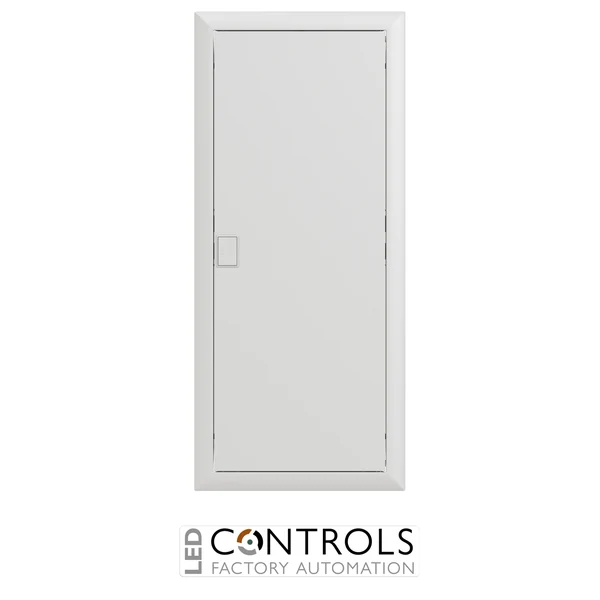

Why Choose the ABB BL650 UK600 Frame and Door?
The ABB BL650 (ABB order code 2CPX031085R9999) is a high-quality steel trim frame and door assembly designed for ABB UK600 recessed electrical distribution enclosures. As part of the ABB UK600 enclosure range, this five-row frame and door accessory provides a durable, attractive and practical finishing solution for electrical distribution boards installed in residential and commercial buildings.
Manufactured from powder-coated sheet steel and finished in RAL 9016 traffic white, the BL650 combines a clean architectural appearance with robust mechanical construction. Its solid steel door conceals the installed electrical distribution equipment, helping maintain a neat appearance while providing convenient access for authorised operation, inspection and maintenance.
Designed specifically for five-row ABB UK600 distribution enclosures of the UK66 series, the BL650 features an overall height of 872 mm, width of 384 mm and depth of 33 mm. Its IP30 protection rating, convenient tip-in door closure and plaster compensation capability make it a practical choice for completing recessed electrical distribution installations.
Key Advantages
- Purpose-designed frame and door assembly for ABB UK600 five-row distribution enclosures.
- Compatible with ABB UK66 series enclosures for a coordinated installation.
- Powder-coated sheet steel construction provides a durable and professional finish.
- RAL 9016 traffic white colour complements modern residential and commercial interiors.
- Solid steel door conceals electrical distribution components from view.
- IP30 protection rating provides protection against access by solid objects of 2.5 mm diameter or greater.
- Tip-in door closure offers convenient everyday operation.
- Optional security lock allows additional access control where required.
- Plaster compensation capability helps achieve a neat finish around recessed installations.
- Removable frame and door arrangement facilitates installation and maintenance.
- Part of the established ABB UK600 electrical distribution enclosure system.
Key Features
- ABB UK600 enclosure accessory range.
- BL650 frame and door assembly for five-row distribution boards.
- Compatible with UK66 series enclosures.
- Solid sheet steel door with matching trim frame.
- Powder-coated surface finish for a consistent appearance.
- RAL 9016 traffic white colour specification.
- IP30 ingress protection rating.
- Tip-in door closure mechanism for straightforward operation.
- Optional security locking accessory for controlled access.
- Plaster compensation provision for recessed enclosure installations.
- Removable trim frame and door for easier fitting and servicing.
- Opaque door construction conceals installed modular electrical equipment.
- 872 × 384 × 33 mm overall dimensions.
- Designed for use with compatible ABB UK600 recessed consumer units and distribution boards.
- Suitable for professional electrical installation and enclosure refurbishment projects.
Professional Finishing and Access Protection for UK600 Distribution Boards
The ABB BL650 UK600 frame and door provides a dedicated finishing solution for five-row recessed electrical distribution enclosures. When fitted to a compatible ABB UK66 enclosure, the trim frame creates a neat transition between the distribution board and the surrounding wall surface, while the solid steel door conceals the internal modular electrical equipment.
The powder-coated sheet steel construction provides a durable exterior finish suitable for indoor residential and commercial electrical installations. Its RAL 9016 traffic white colour allows the assembly to blend with light-coloured walls and modern interior finishes, making it particularly suitable for electrical distribution boards installed in corridors, utility rooms, offices and building service areas.
The BL650 incorporates a tip-in door closure designed for convenient operation. Where additional access control is required, a compatible security lock can be fitted as an optional accessory. The removable frame and door arrangement also supports installation and servicing, while the plaster compensation provision helps accommodate finishing tolerances around recessed enclosure openings.
With an IP30 protection rating, the assembly provides protection against access by solid objects of 2.5 mm diameter or greater. It does not provide a rated level of protection against water ingress and is intended for suitable indoor installations. The protection rating of the completed distribution assembly depends on the compatible enclosure, correct installation and associated components.
The ABB BL650 is a frame and door accessory rather than a complete electrical distribution enclosure. It is designed for compatible five-row ABB UK66 recessed enclosures and does not itself include a distribution board housing, DIN rails, circuit breakers or electrical terminal assemblies. The complete electrical installation must be configured using the appropriate ABB UK600 components.
Typical Applications
- ABB UK600 five-row recessed electrical distribution boards.
- Replacement frame and door assemblies for compatible ABB UK66 enclosures.
- Residential consumer unit installations.
- Commercial building electrical distribution systems.
- Office and workplace electrical distribution boards.
- Apartment buildings and residential developments.
- Hotels, educational buildings and public facilities.
- Utility rooms and indoor electrical service areas.
- Electrical distribution board refurbishment projects.
- New-build electrical installation finishing.
- Wall-recessed distribution boards requiring a white steel door.
- Building maintenance and replacement enclosure accessories.
- Professional electrical installations requiring a coordinated RAL 9016 finish.
- Indoor electrical distribution equipment requiring a removable protective door.
