Why Choose the ABB BL650V Ventilated Frame Door 5R RAL9016?

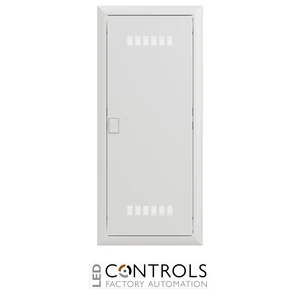

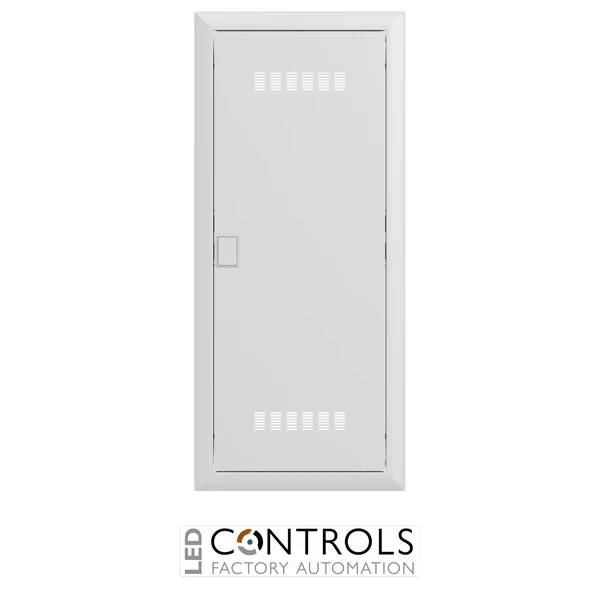

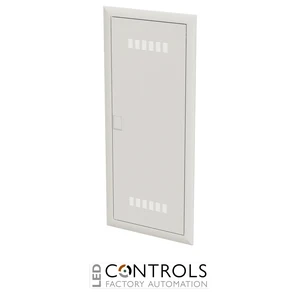

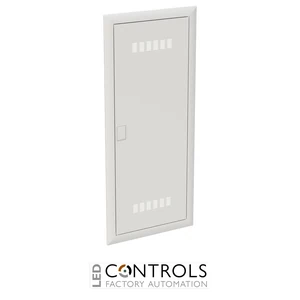

The ABB BL650V (2CPX031094R9999) is a durable, high-quality ventilated frame and door assembly designed for use with compatible ABB UK600 electrical distribution and media enclosures. Part of the established ABB UK600 Enclosures product range, this 5-row (5R) frame door provides a practical and professional finishing solution for electrical installation and multimedia distribution applications.
Manufactured from robust powder-coated sheet steel and finished in RAL 9016 traffic white, the BL650V combines mechanical protection, ventilation and an attractive appearance. Its integrated ventilation openings help promote air circulation within compatible enclosures, making it particularly suitable for installations containing communication and multimedia equipment where ventilation is beneficial.
With overall dimensions of 872 mm high, 384 mm wide and 33 mm deep, the ABB BL650V is specifically designed for compatible 5-row UK600 enclosure configurations, including the UK66 series. The integrated trim frame and door assembly provides convenient access to installed equipment, while its IP30 protection rating supports use in suitable indoor electrical installations.
Key Advantages
- Purpose-designed ventilated frame door for ABB UK600 enclosures.
- 5-row (5R) configuration suitable for compatible UK600 distribution and media enclosures.
- Integrated ventilation openings promote air circulation around installed equipment.
- Durable powder-coated sheet steel construction provides a robust enclosure finish.
- Attractive RAL 9016 traffic white finish complements modern electrical installations.
- IP30 protection rating for suitable indoor applications when correctly installed.
- Convenient Tip-in door closure provides straightforward access to enclosure contents.
- Removable trim frame and door arrangement simplifies installation and maintenance access.
- Compatible with an optional security lock accessory for applications requiring additional access control.
Key Features
- ABB UK600 Enclosures product range.
- BL650V ventilated frame and door assembly.
- ABB manufacturer order code: 2CPX031094R9999.
- 5-row (5R) frame door design.
- Ventilated steel door with integrated ventilation openings.
- RAL 9016 traffic white powder-coated surface.
- IP30 protection rating.
- 384 mm overall width.
- 872 mm overall height.
- 33 mm overall depth.
- Designed for compatible ABB UK66 enclosure configurations.
- Integrated trim frame for a neat, professional installation finish.
- Tip-in closure mechanism for convenient door operation.
- Optional security locking accessory available separately.
Technical Specifications
- Manufacturer: ABB
- Product group: UK600 Enclosures
- Series: ABB UK600
- Model: BL650V
- Manufacturer order code: 2CPX031094R9999
- Product type: Ventilated frame and door assembly
- Product description: BL650V Frame Door Ventilated 5R RAL9016
- Frame configuration: 5-row (5R)
- Compatible enclosure range: ABB UK600, UK66 series
- Door design: Ventilated protective door with trim frame
- Ventilation: Integrated ventilation openings
- Material: Sheet steel
- Surface treatment: Powder-coated
- Colour: Traffic white
- RAL colour code: RAL 9016
- Protection rating: IP30
- Height: 872 mm
- Width: 384 mm
- Depth: 33 mm
- Dimensions (H × W × D): 872 × 384 × 33 mm
- Door closure: Tip-in closure mechanism
- Locking option: Optional security lock accessory
- Viewing window: No
- EMC-specific construction: No
- Installation type: Enclosure-mounted trim frame and door
- EAN: 4011617310945
- Country of origin: Germany
- Supply quantity: 1 assembly
Reliable Enclosure Protection and Ventilation
The ABB BL650V ventilated frame door provides an effective combination of enclosure protection, equipment accessibility and passive ventilation. Its steel construction creates a durable external finish, while the ventilation openings allow air to circulate through compatible electrical and multimedia enclosures.
Ventilation is particularly useful in media distribution installations containing equipment such as network switches, routers, communication modules and other electronic devices that generate heat during operation. By providing openings for natural airflow, the BL650V can help support suitable operating conditions, although the overall thermal performance depends on the complete enclosure installation and equipment heat load.
The RAL 9016 powder-coated finish offers a clean appearance and a protective surface suitable for indoor electrical installations. The integrated trim frame provides a neat transition between the enclosure and the surrounding wall or mounting surface.
Designed for compatible ABB UK600 5-row enclosure arrangements, the BL650V incorporates a convenient Tip-in closure system for everyday access. The frame and door can also be removed when necessary to simplify installation work, servicing or modifications to the enclosure contents.
For installations where access restriction is required, an optional security lock can be fitted using the appropriate compatible accessory. The BL650V is supplied as an enclosure door and frame assembly rather than a complete electrical distribution enclosure.
Typical Applications
- ABB UK600 electrical distribution enclosure installations.
- Compatible 5-row UK66 enclosure assemblies.
- Residential electrical distribution and media cabinets.
- Commercial building electrical installation systems.
- Structured cabling and communication distribution enclosures.
- Home networking and multimedia equipment installations.
- Indoor electrical service and distribution cabinets.
- Building renovation and electrical installation upgrades.
- Replacement or refurbishment of compatible ABB UK600 enclosure doors.
- Professional electrical installations requiring a ventilated steel door and trim frame.
